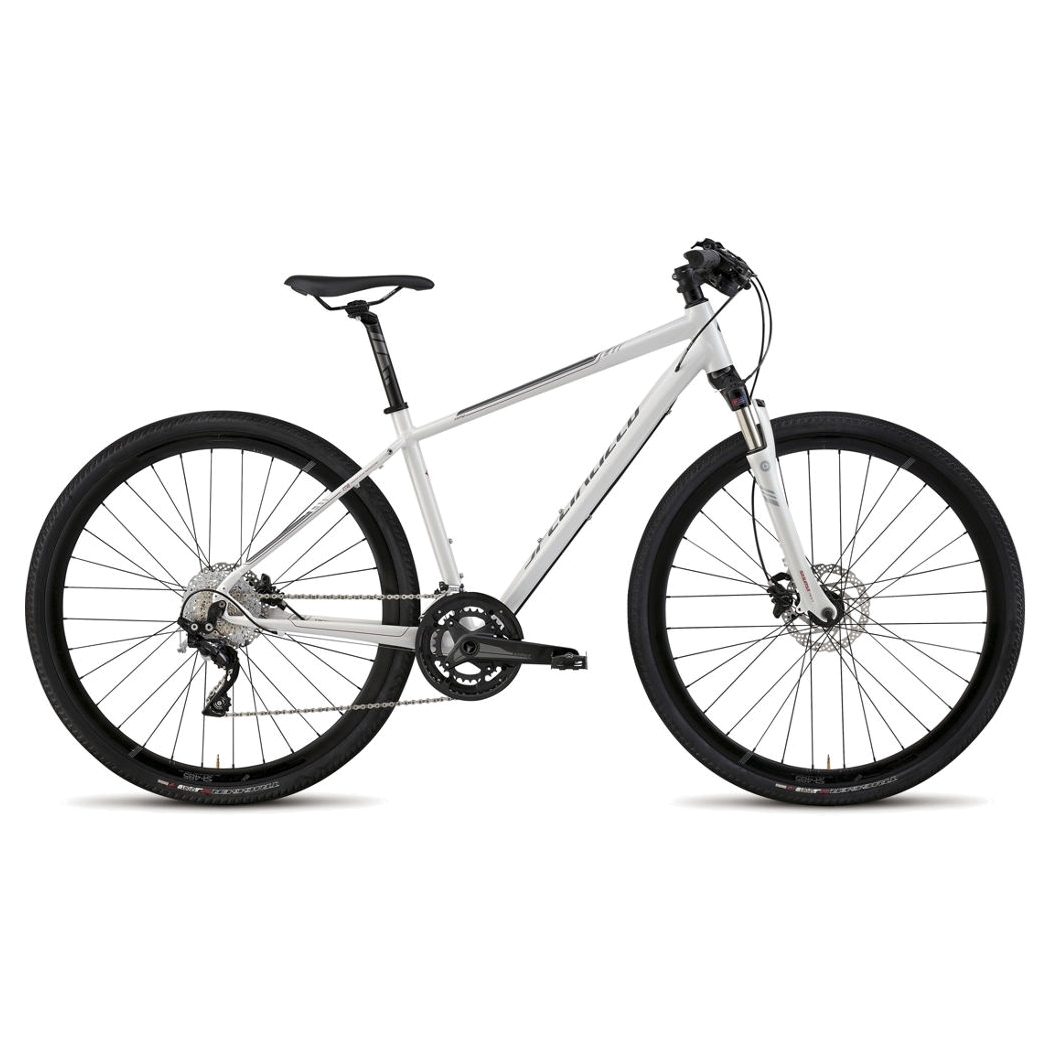

Specialized Ariel Comp Disc Pearl White/Charcoal/Flo Red
Artikelnummer.
92215-5001 (XS)
Övriga art.nr.
92215-5002 (S)
92215-5003 (M)
92215-5004 (L)
92215-5005 (XL)
Cykelbeskrivning
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Comp Disc features an M4 Premium Aluminum frame with Women's Fitness Geometry, Shimano hydraulic disc brakes, and 50mm-travel SR Suntour fork for a plush ride.
>Lightweight, M4 Aluminum smooth-welded frame w/ Women's Fitness Geometry.
>Custom SR Suntour NCX 50mm-travel fork w/ exclusive Multi-Circuit Damping and remote hydraulic lockout.
>Specialized Trigger Sport, 700x38c tires provide confident traction on all surfaces.
>Women's Body Geometry XCT, lock-on grips provide reliable bar control.
>Shimano hydraulic disc brakes assure solid, worry-free braking under any conditions.
>Shimano XT, 10-speed rear derailleur provides confident, crisp shifting.
>Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
Specialized M4 aluminum, Women's Fitness Geometry, women's double-butted tubesets w/ smooth welds, fender/rack braze-ons, forged dropouts, kickstand mount
Gaffel eller ev. stötdämpare fram
Custom SR Suntour NCX, w/ custom Multi-Circuit Damping, custom coil/MCU spring weights, integrated remote hydraulic lockout lever, mag lowers, Cr-Mo stanchions, 50mm travel
Styrlager
Ahead, cartridge bearings, alloy top cap, 8mm cone spacer
Styrstolpe eller ev. styrstam
Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
Styre
Specialized flat, 6061 double butted alloy, 9-degree backsweep, 31.8mm
Handtag
Specialized Body Geometry XCT Women's, lock-on, closed end
Bromsar fram
Shimano BR-M446, hydraulic disc, dual piston
Bromsar bak
Shimano BR-M446, hydraulic disc, dual piston
Bromshandtag
Shimano BL-M445, hydraulic
Växelförare fram
Shimano SLX, top swing, dual-pull
Växelförare bak
Shimano XT Shadow, 10-speed, SGS cage
Växelreglage
Shimano SLX, 10-speed, trigger
Kassett eller ev. drev bak
Shimano SLX, 10-speed, 11-36
Kedja
KMC X10, 10-speed, reusable Missing Link
Vevparti
Specialized Stout SL, 2 pc., 10-speed, w/ chainguard
Vevparti utväxling
44/32
Pedaler
Light alloy, loose ball, w/ reflectors
Fälgar
700c disc, alloy, sleeve joint, 32h
Nav fram
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
Nav bak
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
Ekrar
Stainless, 14g
Däck fram
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
Däck bak
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
Innerslang
Standard, Schrader valve
Sadel
Body Geometry Women's Riva Comp, hollow Cr-Mo rails, 155mm
Sadelstolpe
Specialized alloy, 2-bolt, 15mm offset, 27.2mm
Sadelstolpsklämma
Alloy, 31.8mm
Ramgeometri
Frame size
XS S M L XL.
Seat tube length bottom bracket center to top
345mm 395mm 440mm 485mm 550mm.
Top tube length horizontal
560mm 572mm 585mm 600mm 615mm.
Bottom bracket drop
60mm 60mm 60mm 60mm 60mm.
Chain stay length
445mm 445mm 445mm 445mm 445mm.
Seat tube angle
73° 73° 73° 73° 73°.
Head tube angle
70° 70° 70° 70° 70°.
Fork rake
38mm 38mm 38mm 38mm 38mm.
Trail
91mm 91mm 91mm 91mm 91mm.
Front to center
614mm 627mm 641mm 657mm 673mm.
Wheel base
1052mm 1065mm 1079mm 1095mm 1111mm.
Stand over height
691mm 729mm 762mm 794mm 840mm.
Head tube length
85mm 105mm 120mm 135mm 160mm.
Handle bar width
660mm 680mm 680mm 680mm 680mm.
Stem length
60mm 70mm 70mm 90mm 90mm.
Crank length
170mm 175mm 175mm 175mm 175mm.
Seat post length
350mm 350mm 350mm 350mm 350mm.
