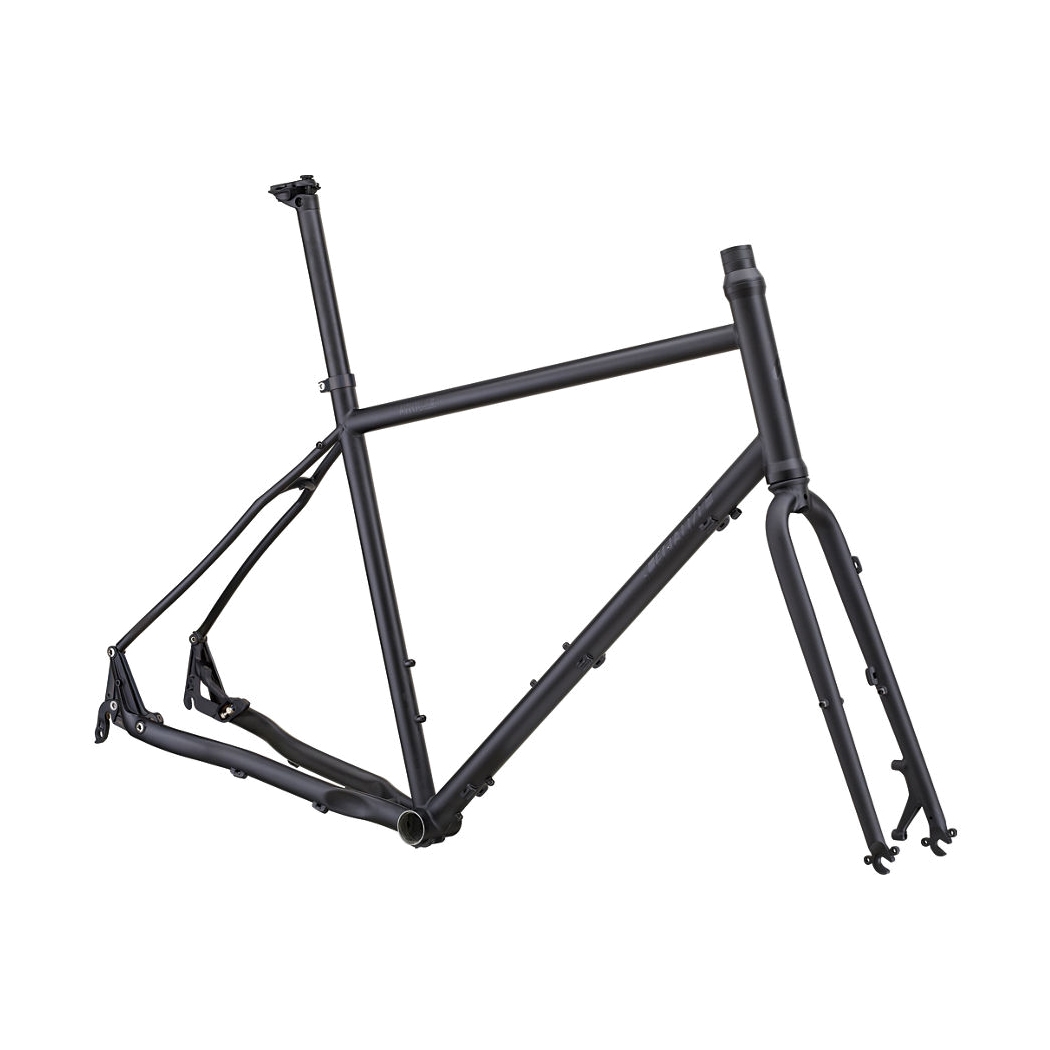

Specialized Awol Comp Frameset (Rampaket) Black/Black

Cykelbeskrivning

No matter the terrain or adventure, the AWOL Comp is up to the task. The Cr-mo frame w/ split seat stay and rocker dropout for optional belt drive is plenty stiff with enough compliance for all-day comfort, and the integrated rack/fender mounts assure you have the option to always ride prepared. Ready to be built up exactly how you want it.

>Cr-Mo tuning gives legendary steel feel in a lightweight package w/ split seat stay.
>Butted Cr-Mo fork w/ rack/fender mounts provides confident steering at a low weight.
>Specialized alloy, 27.2mm seatpost is durable and comfortable.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Reynolds 725/520 premium Cr-Mo, fully butted, custom cast/forged rocker dropouts to run belt drivetrain

Gaffel eller ev. stötdämpare fram

Cr-Mo, unicrown, custom blade curve, w/ integrated cast dropouts

Styrlager

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 15mm cone spacer

Sadelstolpe

Specialized alloy, 27.2mm

Sadelstolpsklämma

AWOL forged alloy, CNC, stainless bolt, 29.8mm

Ramgeometri

Frame size

S M L XL.

Seat tube length bottom bracket center to top

475mm 495mm 525mm 550mm.

Top tube length horizontal

555mm 575mm 600mm 625mm.

Bottom bracket drop

70mm 70mm 70mm 70mm.

Chain stay length

455mm 455mm 455mm 455mm.

Seat tube angle

74° 73.5° 73° 72°.

Head tube angle

71° 72° 72° 72°.

Fork rake

50mm 50mm 50mm 50mm.

Trail

71mm 64mm 64mm 64mm.

Front to center

622mm 626mm 646mm 659mm.

Wheel base

1067mm 1072mm 1092mm 1104mm.

Stand over height

773.7mm 794.1mm 821.3mm 843.5mm.

Head tube length

160mm 185mm 210mm 235mm.

Handle bar width

400mm 420mm 440mm 460mm.

Stem length

60mm 75mm 75mm 90mm.

Crank length

170mm 172.5mm 175mm 175mm.

Seat post length

350mm 350mm 350mm 350mm.
