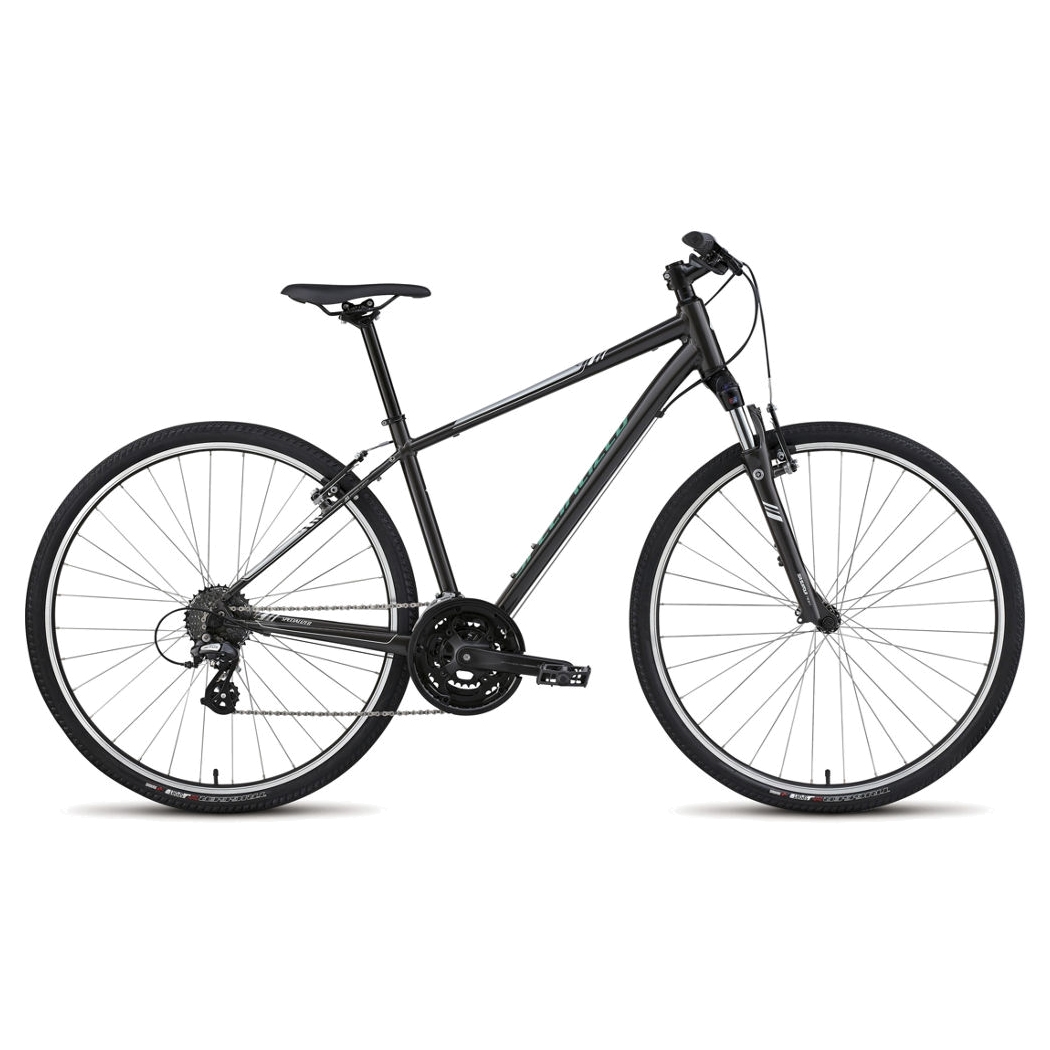

Specialized Ariel Charcoal/White/Silver/Em Green
Artikelnummer.
92215-7101 (XS)
Övriga art.nr.
92215-7102 (S)
92215-7103 (M)
92215-7104 (L)
92215-7105 (XL)
Cykelbeskrivning
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel features an A1 Premium Aluminum frame with Women's Fitness Geometry, Body Geometry Women's Riva Sport Plus saddle, and 60mm-travel SR Suntour fork for a plush ride.
>Versatile, A1 Premium Aluminum frame w/ Women's Fitness Geometry and rack/fender mounts.
>Custom SR Suntour NEX 60mm-travel fork w/ exclusive Multi-Circuit Damping and hydraulic lockout.
>Specialized Trigger Sport, 700x38c tires provide confident traction on all surfaces.
>Women's Body Geometry XCT, lock-on grips provide reliable bar control.
>Lightweight alloy V-brakes for safe and confident braking power.
>Shimano Altus, 8-speed rear derailleur for clean and accurate shifting.
>Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
Specialized A1 Premium Aluminum, Women's Fitness Geometry, women's double-butted tubesets, w/ fender/rack braze-ons, forged dropouts, kickstand mount
Gaffel eller ev. stötdämpare fram
Custom SR Suntour NEX, w/ custom Multi-Circuit Damping, alloy lowers, custom coil spring weights, Hi-Ten 28mm stanchions, hydraulic lockout w/ preload adjust, V-brake mount, 63mm travel
Styrlager
Ahead, semi-integrated, loose ball, 8mm cone spacer
Styrstolpe eller ev. styrstam
Specialized, forged alloy, 4-bolt, 10-degree rise
Styre
Specialized riser, alloy, 8-degree backsweep, 4-degree upsweep, 25mm rise, 25.4mm
Handtag
Specialized Body Geometry XCT Women's, lock-on, closed end
Bromsar fram
Die-cast alloy V-brake, 60mm pads
Bromsar bak
Die-cast alloy V-brake, 60mm pads
Bromshandtag
Die-cast alloy
Växelförare fram
Shimano FD-M191, top swing, dual-pull
Växelförare bak
Shimano Altus, 8-speed
Växelreglage
Shimano Acera, 8-speed
Kassett eller ev. drev bak
Shimano, 8-speed, 12-32
Kedja
KMC X8, 8-speed, reusable Missing Link
Vevparti
Forged alloy, w/ chainguard
Vevparti utväxling
48/38/28
Vevlager
Square taper, cartridge bearings
Pedaler
Composite platform, w/ reflectors, 9/16"
Fälgar
700c, alloy double-wall, CNC sidewalls, pin joint, 32h
Nav fram
Double-sealed, QR, 32h
Nav bak
Double-sealed, QR, 32h
Ekrar
Stainless, 14g
Däck fram
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
Däck bak
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
Innerslang
Standard, Schrader valve
Sadel
Body Geometry Women's Riva Sport Plus, steel rails, 155mm
Sadelstolpe
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
Sadelstolpsklämma
Alloy, 31.8mm
Ramgeometri
Frame size
XS S M L XL.
Seat tube length bottom bracket center to top
345mm 395mm 440mm 485mm 550mm.
Top tube length horizontal
560mm 572mm 585mm 600mm 615mm.
Bottom bracket drop
60mm 60mm 60mm 60mm 60mm.
Chain stay length
445mm 445mm 445mm 445mm 445mm.
Seat tube angle
73° 73° 73° 73° 73°.
Head tube angle
70° 70° 70° 70° 70°.
Fork rake
38mm 38mm 38mm 38mm 38mm.
Trail
91mm 91mm 91mm 91mm 91mm.
Front to center
616mm 629mm 643mm 658mm 675mm.
Wheel base
1054mm 1067mm 1081mm 1097mm 1113mm.
Stand over height
699mm 738mm 771mm 804mm 849mm.
Head tube length
85mm 105mm 120mm 135mm 160mm.
Handle bar width
660mm 680mm 680mm 680mm 680mm.
Stem length
60mm 70mm 70mm 90mm 90mm.
Crank length
170mm 175mm 175mm 175mm 175mm.
Seat post length
350mm 350mm 350mm 350mm 350mm.
