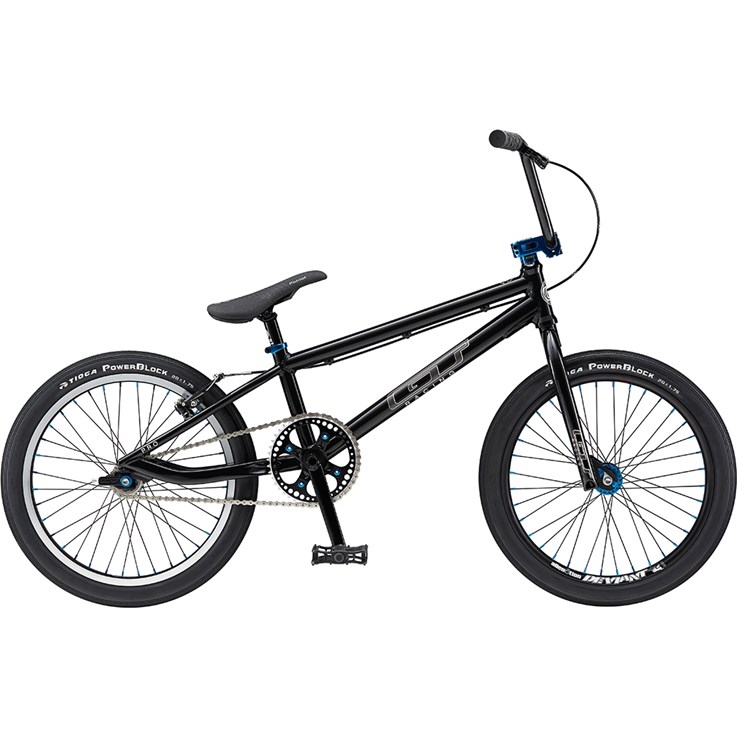

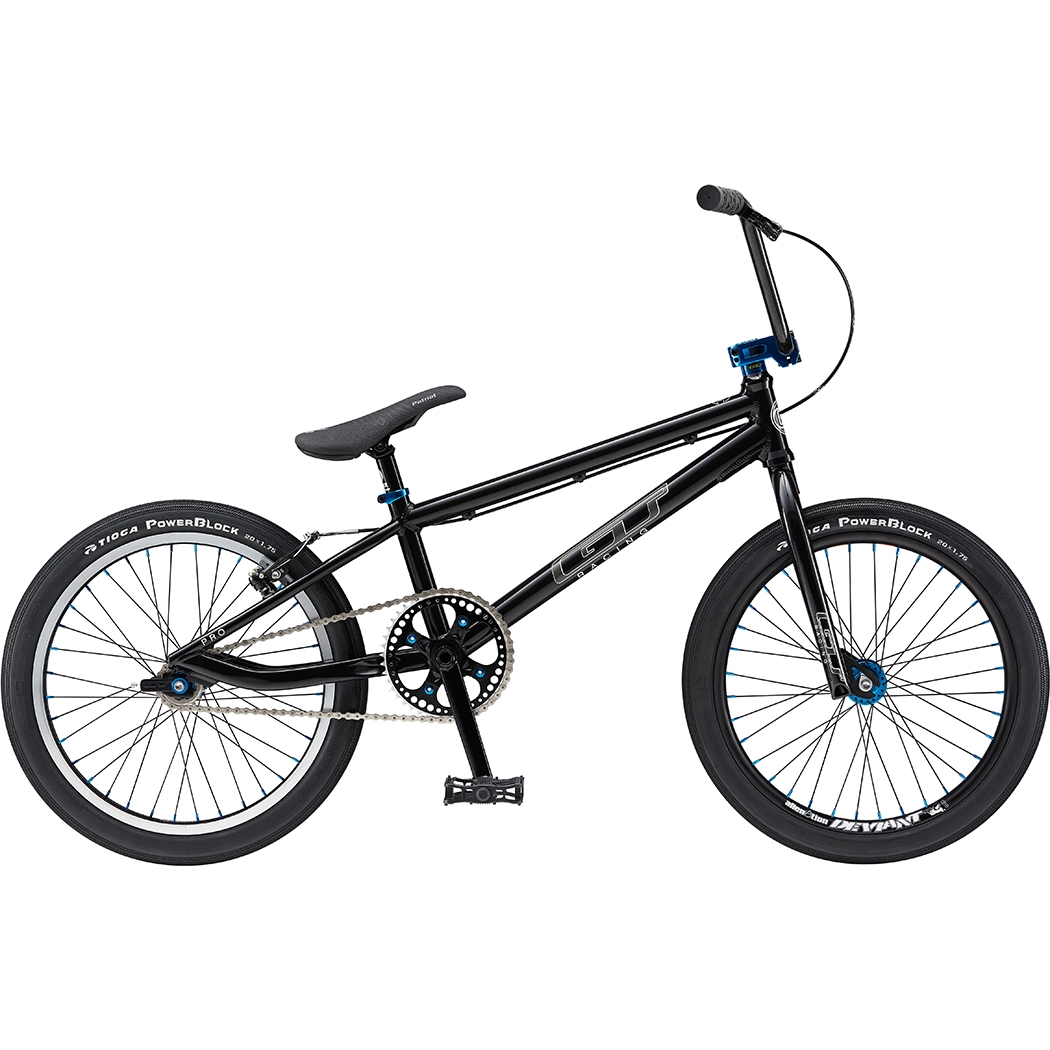

GT Pro Series Pro Gloss Black
Artikelnummer.
GM0289LG02
There are a lot of things about stepping up your racing that are exciting, but every rider knows the best part is finding your next bike. With a lightweight aluminum frame, flip-flop rear hub, and sizes from Mini all the way up to XXL, the Pro Series can be custom tuned to get you across the finish line first.
>Pro GT BMX Race design, 6061-T6 alloy frame with Euro BB and reverse dropouts and integrated headtube. 20.5" top tube.
>GT BMX Pro Race fork with 100% CR-Mo Steerer and tapered blades
>Euro Sealed 4 bearing BB and Hubs
>36H Alienation Rims
>New GT 100% CR-MO 2-pc tubular crankset with 4 bolt alloy spider and 180mm arms
Cykelspecifikationer
Storlek 20" wheel / 20.5" top tube
Färg Gloss Black
Ram GT Pro Series BMX Race Design, 6061-T6 AL, Euro BB, Reverse Dropouts, 1-1/8" Integrated H/T
Gaffel eller ev. stötdämpare fram GT BMX Pro Race, 100% Cr-Mo 1-1/8" Steerer, Tapered 31.8-28.6mm Blades, 320mm A/C, 3/8" Dropouts
Kedja KMC Z610
Vevparti *New GT 100% Chromoly 2-Piece Tubular Cranks with AL 4-Bolt Spider, 180mm Arms, GT 44T GT CNC AL Chain Wheel
Vevlager Euro 4 Sealed Bearing
Pedaler GT Slim Profile Large Size Platform, PP Material
Hjul Alienation Deviant 36H Front, Alienation 440 36H Rear
Däck Tioga Power Block 20"x 1.75" F/R
Nav fram GT Mohawk Design, Sealed Bearings, 3/8" Axle, 36 Hole, w/ Allen Thread in Bolts, AL Washers
Nav bak GT Mohawk Flip/Flop Design, GT Logo, Low Flange, 2 x Sealed Bearings, 3/8" x AL Axle, 36 Hole, w/ Allen Thread in Bolts, AL Washers
Ekrar 15G
Ekernipplar 15G AL ANO
Bromshandtag Promax XL-91 Mini V-Type AL 2 Finger Lever w/ Reach Adjust
Styre GT Interceptor Chromoly, H:8.25" x W:28.5" Rise Taper Cross Bar, 11 Back x 3 Up
Styrstam GT 100% Cold Forged 1-1/8" Machined GT Logo On Front Cap, 50mm Ext
Handtag eller ev. styrlinda GT DOHC Design 140mm
Styrlager 1-1/8" Integrated Design, 45X45 Degree Sealed Bearings
Sadel SDG Patriot, I-Beam Kevlar w/Embossed GT Wing Graphic
Sadelstolpe SDG I-Beam Micro adj. AL 6061, 27.2mm
Sadelstolpsklämma GT BMX Race Design, Aluminum, 31.8mm Single Bolt
Ramgeometri
Size U
Actual top tube length(inch) 20.6
Rider area(inch) 22.4
Chainstay length(inch) 14.3
Front center(inch) 23.1
Wheel base(°) 37.2
Seat tube length(°) 9.2
Bottom bracket drop/Neg. value is up(inch) -1.5
Bottom bracket height(inch) 11.3
Axle to crown(inch) 12.6
Fork offset rake(inch) 1.4
Head angle(°) 74
Seat angle(°) 72
Head tube length(inch) 4.7
Seat post(diameter) 27.2
