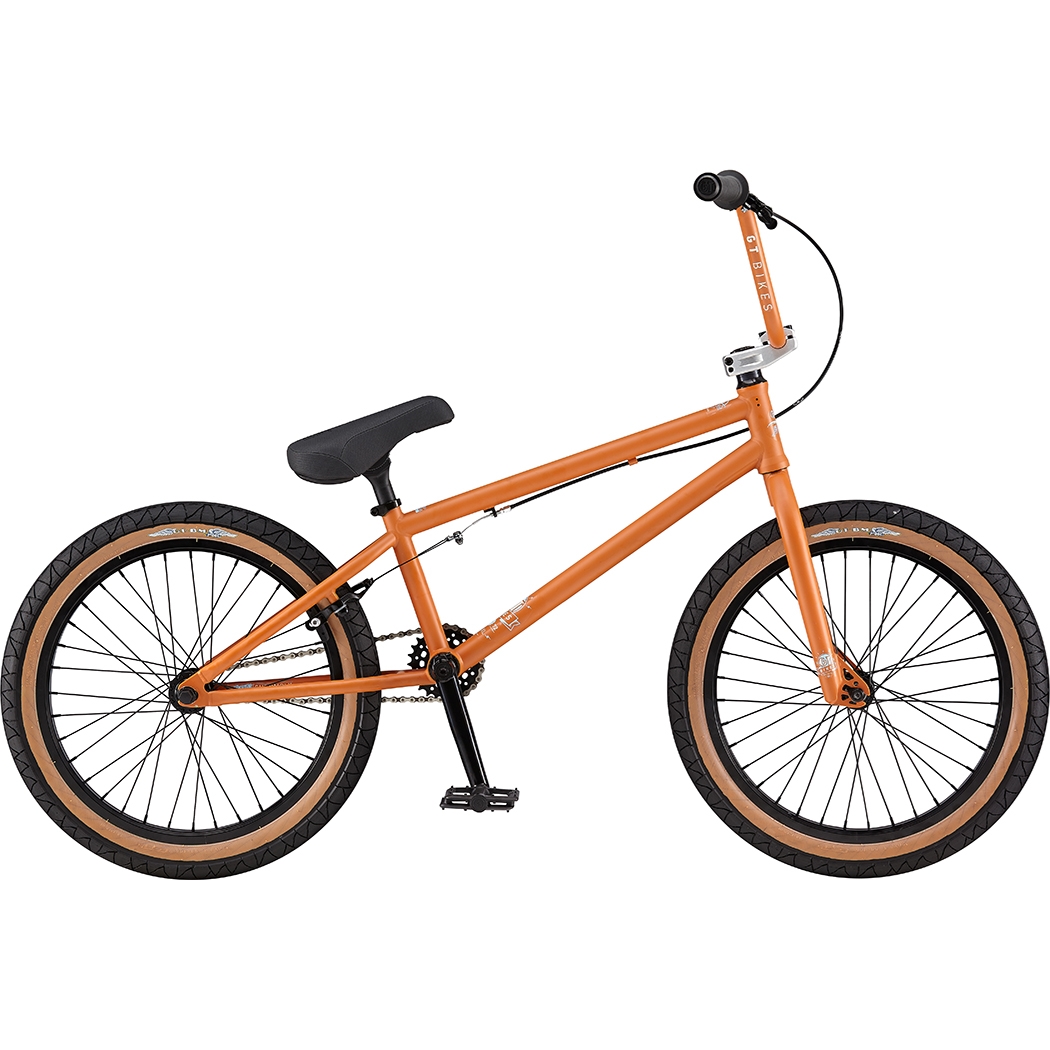

GT DLSY XL Matte Orange

Whether it’s a day in the dirt, an extra long park session, or a tour of the latest city stop, GT Team Rider Dave Dillewaard takes it all on with absolute authority. Seeing the need for a bike that also does it all, we built Dillsy an all-new signature model frame, the DLSY. Built with quality ingredients like a CrMo frame with fully removable brakes and a 3-piece crank, this bike is ready to cook up trouble anywhere it goes.

>Dave Dillewaard inspired frame with CR-MO front triangle (HT,TT,DT)
>100% CR-MO GT Trail fork
>36H Alloy sealed bearing hubs with CR-MO axle
>Aluminum U-brake
>Pivotal Padded DLSY Saddle
>GT Tubular CR-MO 3pc crankset with 25T GT alloy chainwheel

Cykelspecifikationer
Storlek 20" wheel / 20.5" top tube
Färg Matte Orange
Ram GT BMX Design, CR-MO Front Triangle (H/T, T/T, D/T), DT Gusset, MID BB , Seat Stay Mounted U-Brake, Integrated 1-1/8" H/T w/ Removable Rotor Tabs, , Odyssey Springfield Brake compatible
Gaffel eller ev. stötdämpare fram GT BMX Design, 100% CR-MO, Threaded Top Cap, 31.8- 28.6mm Tapered O.D. Blades, 3/8" Axle Dropouts
Vevparti GT Tubular CR-MO 3Pc., 175mm Arms, Cold Forged CR-MO 19mm x 8T Spline Spindle, LHD 5mm 25T GT AL Chain Wheel
Vevlager MID Sealed Bearing
Pedaler GT Low Profile Mid Size Platform Design, PP Material, Boron Axle
Hjul GT Design, Aluminum, Double Wall, 36 Hole
Däck 20 X 2.3 F/R GT POOL STREET TREAD
Nav fram 36H Alloy Body, Sealed Bearings 3/8 axle
Bromshandtag Alloy
Styre 100% CR-MO H:8.5" (216mm), W:29" (735mm), w/ 22-16mm Taper Crossbar, 3*up,?11* back
Styrstam GT INVERT 100% Cold Forged 1-1/8" Machined GT Logo On Front Cap, 50mm Ext
Handtag eller ev. styrlinda BMX Flanged 147mm Single Compound, w/ debossed GT removable plug
Styrlager 1 1/8" Integrated Design 45 x 45 Degree Sealed Bearings
Sadel Pivotal Padded, DLSY Design
Sadelstolpe Pivotal 25.4 x 150mm

Ramgeometri
Size U
Actual top tube length(inch) 20.5
Rider area(inch) 22.4
Chainstay length(inch) 13.75
Front center(inch) 22.3
Wheel base(°) 36
Seat tube length(°) 9.3
Bottom bracket drop/Neg. value is up(inch) -1.4
Bottom bracket height(inch) 11.6
Axle to crown(inch) 12.6
Fork offset rake(inch) 1.2
Head angle(°) 75
Seat angle(°) 71
Head tube length(inch) 4.7
Seat post(diameter) 25.4
