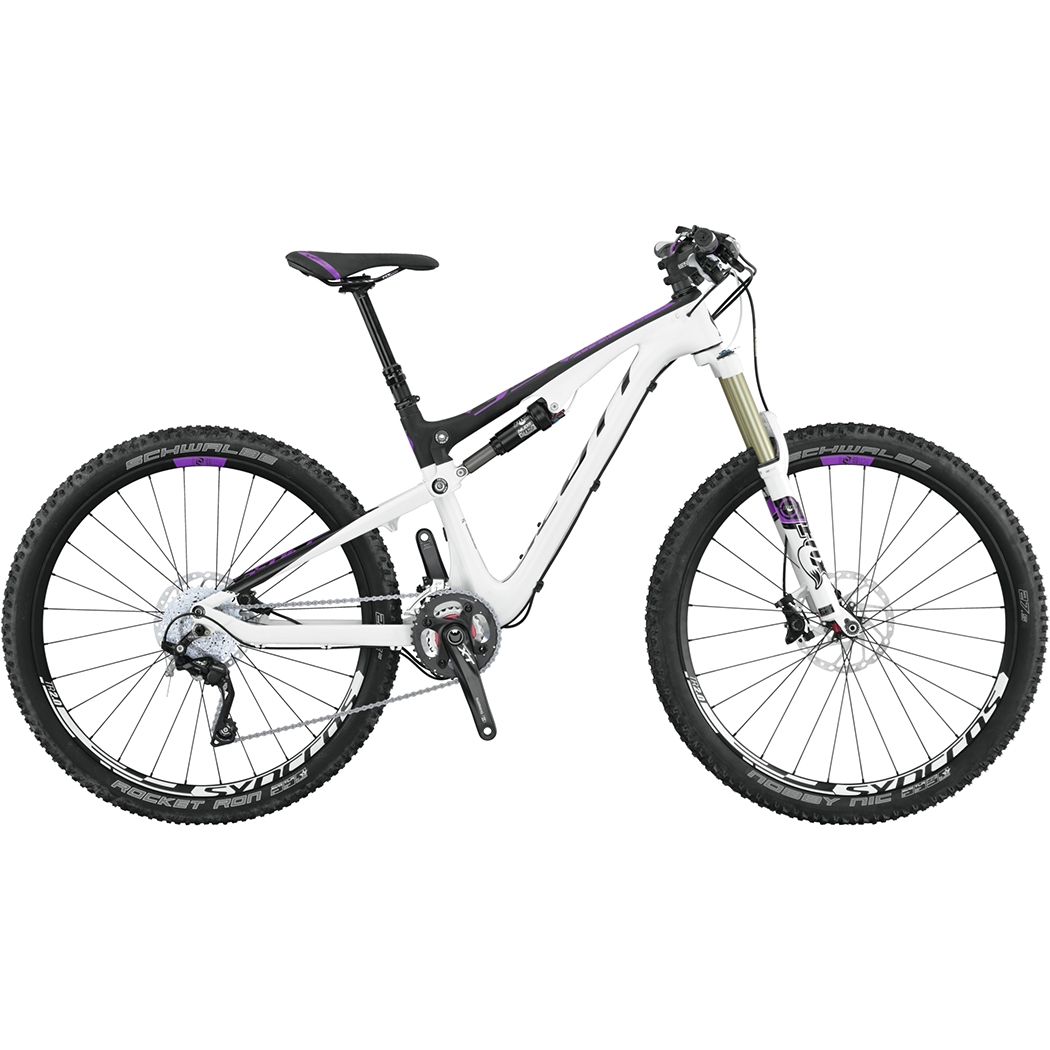

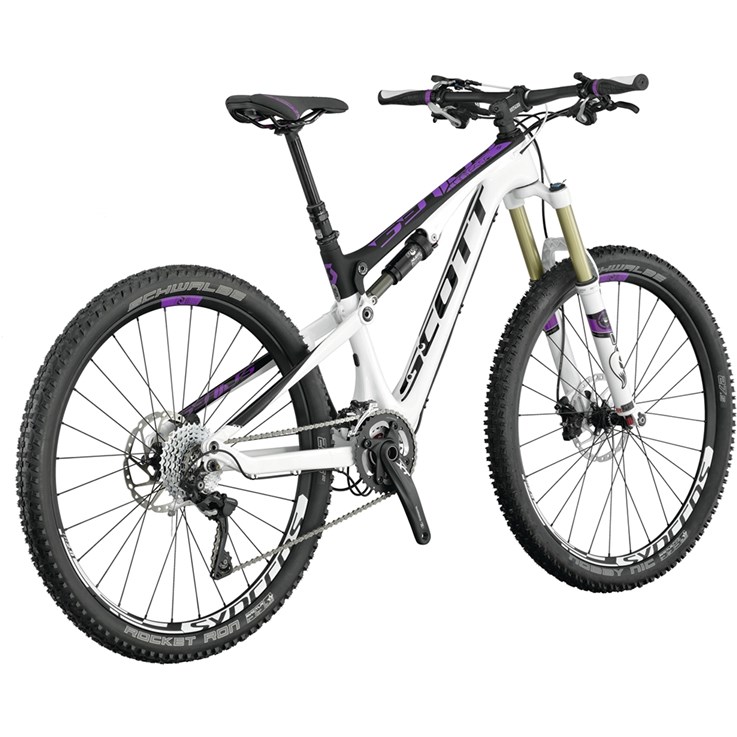

Scott Contessa Genius 700

The SCOTT Contessa Genius 700 boasts a super light HMF Carbon Fiber frame. The 700 comes fully equipped with a custom FOX Nude shock, a FOX 32 Float fork and our Patented TwinLoc technology, in combination with Traction Control, allowing for three travel/geometry settings to always optimize your ride. Available in the 27.5" wheel size.

Cykelspecifikationer
Ram Genius Carbon / IMP / HMF / BB92 / Alloy swingarm with 180PM U-Mono Link / Tapered Headtube IDS SL DM dropouts for 142 × 12mm BB height adj. Travel Front 150mm Rear 150 - 100 - Climb / Shock 200 × 57
Gaffel eller ev. stötdämpare fram FOX 32 Float Factory CTD FIT Air CTD remote damper with 3 modes 15mm QR axle / tapered steerer reb. Adj
Stötdämpare bak FOX Nude / SCOTT custom w. travel / geo adj CTCD 3 modes: Climb - Traction Control - Descend / reb. Adj
Gaffel övrigt SCOTT TwinLoc Remote Technology 3 modes front and rear / integ. clamp
Styrlager Ritchey Pro Tapered 1.5" - 1 1/8" semi integr. OD 50/61mm / ID 44/55mm
Växelförare bak Shimano XT RD-M786 SGS / DM Shadow PlusType / 20 Speed
Växelförare fram Shimano XT FD-M785-E2 / DM
Växelhandtag Shimano XT SL-M780-I Rapidfire Plus / 2 way release Ispec clamp
Bromshandtag Shimano XT BL-M785 Disc
Bromsar Shimano XT BR-M785 Disc 180/F and 180/Rmm SM-RT64 CL Rotor
Vevparti Shimano XT FC-M785 Hollowtech 2 38Ax24A T
Vevlager Shimano SM-BB71-41A / shell 41x92mm
Styre Syncros FL1.5 Tbar Alloy 7050 D.B. / T shape Flat / 9° / 700mm Syncros lock-on grips
Styrstam Syncros Pilot TR1.5 2014 / 4D forged / oversize 31.8mm 1 1/8" / 6° angle
Sadelstolpe Rock Shox Reverb Stealth inside hydraulic remote system / 31.6mm
Sadel Syncros TR1.5 Women Optimized / Titanium rails
Nav fram Syncros TR2.0 CL / 15mm made by DT Swiss
Nav bak Syncros TR2.0 CL / 12 × 142 RWS made by DT Swiss
Kedja Shimano CN-HG75
Kassett eller ev. drev bak Shimano XT CS-M77110 11-36 T
Ekrar DT Swiss Competition 2.0-1.8-2.0 Black
Fälgar Syncros TR 2.0 28H / Tubless ready
Däck Schwalbe Front: Nobby Nic EVO / 2.25 Rear: Rocket Ron EVO / 2.25 PaceStar compound / Tubeless Easy
Vikt i kg 12.40kg
Vikt i lbs 27.34lbs

Ramgeometri
S S M M L L
BB setting low BB setting high BB setting low BB setting high BB setting low BB setting high
Head tube angle 67.9 ° 68.4 ° 67.9 ° 68.4 ° 67.9 ° 68.4 °
Head tube length 100.0 mm 100.0 mm 110.0 mm 110.0 mm 120.0 mm 120.0 mm
Top tube horizontal 569.9 mm 568.6 mm 599.9 mm 598.6 mm 624.9 mm 623.6 mm
Standover height 773.1 mm 775.9 mm 774.6 mm 777.6 mm 807.0 mm 810.4 mm
Bottom bracket offset -11.6 mm -6.1 mm -11.6 mm -6.0 mm -11.6 mm -6.0 mm
Bottom bracket height 344.9 mm 350.4 mm 344.9 mm 350.5 mm 344.9 mm 350.5 mm
Wheel base 1,122.7 mm 1,121.8 mm 1,153.8 mm 1,152.9 mm 1,179.9 mm 1,179.0 mm
Bottom bracket center to toptube center
Bottom bracket center to top of seattube 415.0 mm 415.0 mm 440.0 mm 440.0 mm 475.0 mm 475.0 mm
Seat angle 67.9 ° 68.4 ° 67.9 ° 68.4 ° 67.9 ° 68.4 °
Chainstay 439.9 mm 438.9 mm 439.9 mm 438.9 mm 439.9 mm 438.9 mm
Reach 401.4 mm 406.1 mm 428.7 mm 433.4 mm 451.1 mm 455.7 mm
Stack 588.8 mm 585.5 mm 598.1 mm 594.7 mm 607.3 mm 603.9 mm
Stem length 60.0 mm 60.0 mm 70.0 mm 70.0 mm 80.0 mm 80.0 mm

Beskrivning av utvalda cykelegenskaper
27.5 wheels
When discussing the pros and cons of the big wheeled bikes, shorter riders find themselves in an ambivalent situation. They want to benefit from the 29” wheels, but suffer from the negative effects when fit is considered. Additionally, the increase in rotational weight challenges many lower watt producing riders, so the performance gains are negated when the rider cannot accelerate the wheel system as quickly. The solution for many riders is 27,5”. The new wheelsize standard combines the best of both worlds, 29” and 26”.

>Increased Roll-Over
>Increased Momentum
>Increased Traction
>Less rotational weight than 29”
>More Agile than 29”
>More suspension travel options
>Short chain stays
>Balanced Stability and Performance
>Geometry closer 26”
>Great balance of Agility and Momentum

Adjustable bottom bracket height
The Spark employs an adjustable geometry by way of a shock mount chip in the linkage. By changing the shock mount chip--simply removing it and flipping it in either mounting position--you affect the bottom bracket height by 7mm, which also affects the head tube angle by 0.5 degrees. The Spark is the only XC/Marathon bike on the market that offers this feature.

Twinloc lever system
Our patented Twin Loc technology now offers simultaneous control of rear shock travel and fork lockout. The open position allows full travel, front and rear. One click switches the rear shock to Traction mode, while the fork remains fully active. Click again and rear shock and fork lock at the same time. No other bike in the world offers this user friendly system. Found on the Spark & Genius and Genius LT models. Only available for Nude2 shocks on 2013 or previous year models.

IDS SL dropout system
Interchangeable and lightweight, the IDS-SL dropout system works with 142x12mm, 135x12mm and 135x5mm QR rear axle standards. Shred the turns more aggressively and with enhanced control, thanks to a laterally stiff rear end.

Direct post mount
We've saved even more weight by eliminating bulky brake hardware for mounting the rear caliper and integrated a direct post mount to the chain stay. This mounting position also decreases the load the brakes apply to the swingarm parts.
