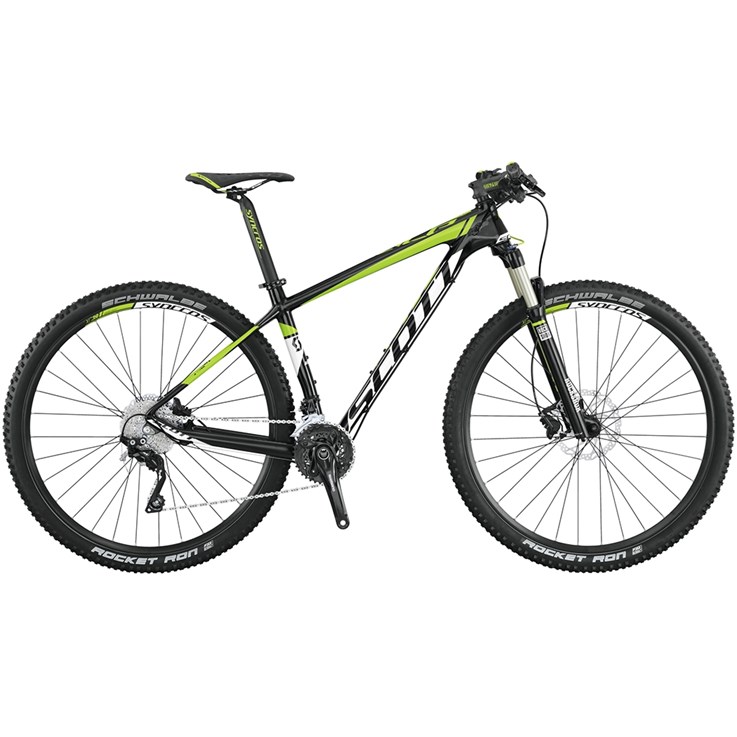

Scott Scale 935

The SCOTT Scale 935 boasts a super light Carbon Fiber frame. The series comes fully equipped with a Rock Shox fork, along with our Remote Lockout technology to always optimize your ride.

Cykelspecifikationer
Ram Scale Carbon IMP technology / Carbon / Tapered HT PM 160 Disc / BB92 IDS SL dropouts SDS Shock Damping System Travel 100mm
Gaffel eller ev. stötdämpare fram Rock Shox XC 30 Gold TK Solo Air Alloy Steerer / remote Lockout reb. Adj. / 100mm travel
Gaffel övrigt Rock Shox Pop Loc
Styrlager Syncros / VP-J205AM1 / 1.5" - 1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Växelförare bak Shimano XT RD-M781 SGS Shadow Type / 20 Speed
Växelförare fram Shimano Deore FD-M616 / 34.9
Växelhandtag Shimano DeoreSL-M610 Rapidfire plus / 2 way release w/gear indicator
Bromshandtag Shimano BL-M396 Disc
Bromsar Shimano BR-M396 Disc 180/F and 160/Rmm SM-RT54 CL Rotor
Vevparti Shimano FC-M625 2-piece Design 38 × 24 T
Vevlager Shimano SM-BB71-41A / shell 41x89.5mm
Styre Syncros FL2.0 Tbar Alloy 6061 / T shape Flat / 9° / 700mm
Styrstam Syncros FL2.0 6061 Alloy / oversize 31.8mm 1 1/8" / 6° angle
Sadelstolpe Syncros FL2.0 34.9mm
Sadel Syncros MTB Race
Nav fram Formula CL51
Nav bak Shimano FH-M615 Disc CL
Kedja KMC X10
Kassett eller ev. drev bak Shimano CS-HG5010 11-36 T
Ekrar Stainless Black 15G / 1.8mm
Fälgar Syncros XC / Eyelets / 32H XC39
Däck Schwalbe Rocket Ron / 2.1 67EPI Kevlar Bead / Dual compound Performance Series
Vikt i kg 11.25kg
Vikt i lbs 24.80lbs

Ramgeometri
S M L XL
Head tube angle 69.5 ° 69.5 ° 69.5 ° 69.5 °
Head tube length 105.0 mm 105.0 mm 115.0 mm 125.0 mm
Top tube horizontal 580.0 mm 600.0 mm 620.0 mm 640.0 mm
Standover height 756.0 mm 783.0 mm 810.0 mm 842.0 mm
Bottom bracket offset -60.0 mm -60.0 mm -60.0 mm -60.0 mm
Bottom bracket height 310.0 mm 310.0 mm 310.0 mm 310.0 mm
Wheel base 1,079.0 mm 1,096.8 mm 1,117.0 mm 1,137.9 mm
Bottom bracket center to toptube center 329.0 mm 375.0 mm 415.0 mm 465.0 mm
Bottom bracket center to top of seattube 390.0 mm 440.0 mm 480.0 mm 530.0 mm
Seat angle 72.5 ° 72.5 ° 72.5 ° 72.5 °
Chainstay 438.0 mm 438.0 mm 438.0 mm 438.0 mm
Reach 385.0 mm 405.0 mm 422.0 mm 439.0 mm
Stack 618.0 mm 618.0 mm 628.0 mm 637.0 mm
Stem length 70.0 mm 80.0 mm 90.0 mm 100.0 mm

Beskrivning av utvalda cykelegenskaper
29” Wheels
Improved roll-over is the most noticeable attribute when it comes to 29” wheels. The big wheels are great for rolling over nasty roots and rocky sections, essentially making it easier to ride these conditions. Improved traction is also a key factor with the increased wheel diameter compared to 26” wheels as tire contact to the ground is larger.

>Best Roll-Over Performance
>Carries Momentum
>Maximum Traction surface
>Best stability on easy trails
>Lowest suspension stress
>Great for larger frame sizes
>Increase stability on long curve

Tapered headtube
The Scale and Spark feature a tapered head tube for increased stiffness, safety, confidence, and control.
