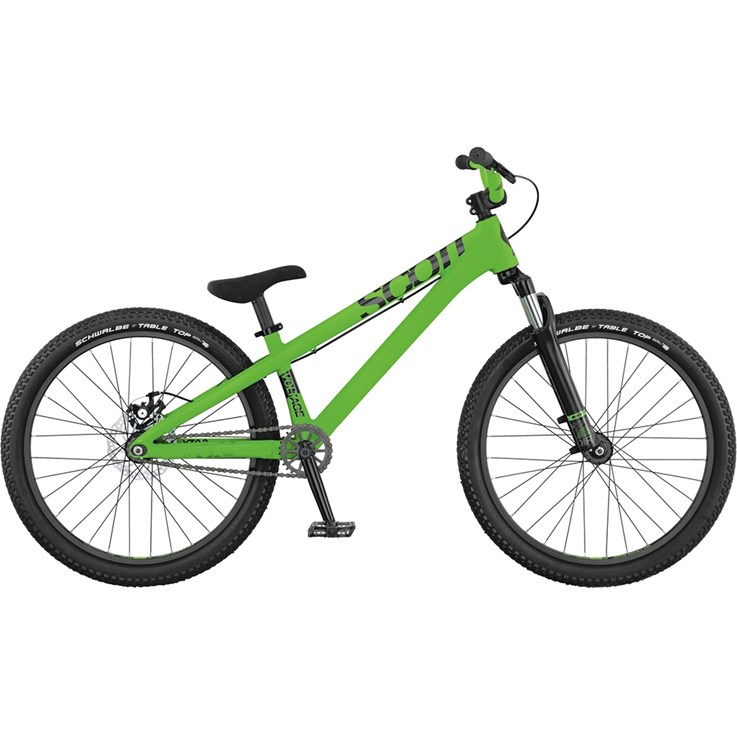

Scott Voltage YZ 0.3 24"

The SCOTT Voltage YZ 0.3 24 is our Pro riders 24" replica built around a newly developed highend Alloy dirtjump frame. Equipped with a BB92, ultashort adjustable chain stays and a tapered headtube, this bike is perfect to get started at the local pumptrack, dirt jumps or skatepark.

Cykelspecifikationer
Ram Voltage D-Ram 24 Hydroformed tubing Super Stiff 6061 Alloy Ram Disc Dropout, horizontal for 135x10mm singlespeed Travel 60mm
Gaffel eller ev. stötdämpare fram RST Dirt 60mm travel / firm spring DJ setup
Styrlager Ritchey H/S Logic Zero Press Fit
Växelförare bak Singlespeed
Bromshandtag SCOTT Comp
Bromsar Tektro Mech. Disc Brake SCM-01 160mm Rotor
Vevparti SCOTT Cr-Mo 3-piece cranks 175mm / 28 T Alloy BMX sprocket
Vevlager Jien-Yuan BB92 / 19mm Axle
Styre Syncros DJ2.0 / 31.8mm 750mm / 75mm Rise
Styrstam SCOTT Voltage 1 1/8" / 10°
Pedaler Wellgo B107.N flat
Sadelstolpe Syncros Pivotal / 31.6mm
Sadel Syncros Pivotal VL-7121
Nav fram Formula DC-20-N nutted
Nav bak Formula DC42-N w/tracknut / singlespeed
Kedja KMC Z510
Kassett eller ev. drev bak Sprocket / 12 T
Ekrar Stainless 14G / black / 2.0mm
Fälgar Alex DM-22 / 32H / black
Däck Schwalbe Table Top Sport Active line 50EPI / wire / 24 × 2.25
Vikt i kg 12.80kg
Vikt i lbs 28.22lbs

Beskrivning av utvalda cykelegenskaper
Voltage chips dropout system
The Chips dropout system on the new Voltage completely locks the rear axle into place resisting slippage in any direction.

Voltage press fit bottom bracket
Thanks to the Press Fit 92 bottom bracket standard the Voltage has shorter chain stays with more tire clearance.

Voltage tapered headtube
The new Voltage has improved strength at the down tube & head tube junction thanks to the ZS 44/56 integrated head tube standard. The smaller upper cup keeps the frame sleek and slender while the lower cup adds strength due to the larger diameter.
