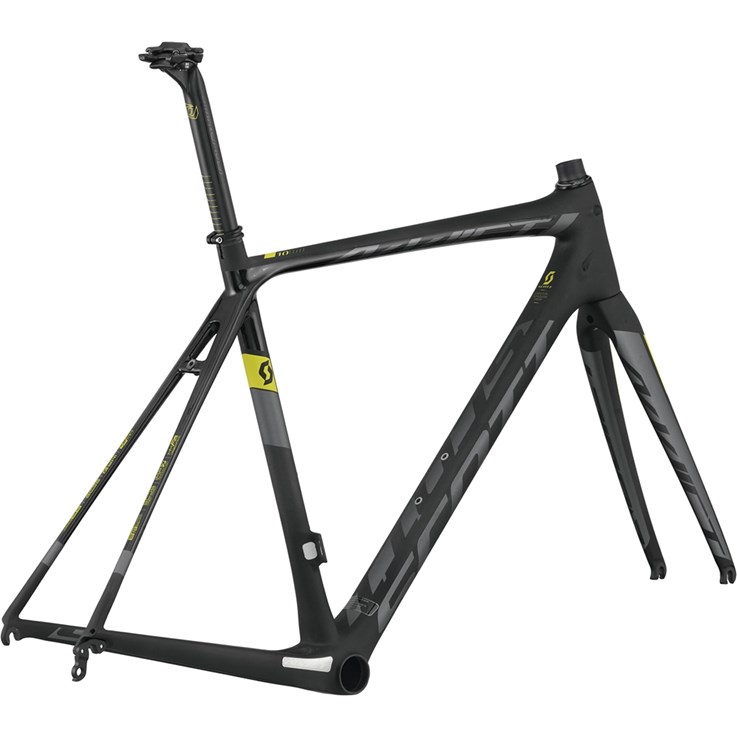

Scott Addict 10 HMF Frame Set

The SCOTT Addict 10's HMF Carbon Fiber frame and fork weigh in at just 890/360g. This is one extremely strong and light bike.

Cykelspecifikationer
Ram Addict HMF Carbon / IMP Superlight technology Road Race geometry / Replaceable Dropout / STD Seattube / INT BB
Gaffel eller ev. stötdämpare fram Addict HMF 1 1/8" - 1 1/4" Carbon steerer Integrated Carbon Dropout
Tillbehör Ritchey Pro Logic Zero PF Headset and Carbon Spacer, Expander for Carbon Steertube and Carbon Topcap, Shimano Press Fit BB, Syncros Carbon FL1.0 ECL Seatpost 27.2 mm
Ramens vikt i kg 890g Gaffelns vikt 360g
Ramens vikt i lbs 1.96lbs Gaffelns vikt .80lbs

Ramgeometri
XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61
Head tube angle 70.5 ° 71.0 ° 72.0 ° 72.5 ° 73.0 ° 73.3 ° 73.3 °
Head tube length 100.0 mm 105.0 mm 120.0 mm 140.0 mm 160.0 mm 180.0 mm 200.0 mm
Top tube horizontal 510.0 mm 520.0 mm 535.0 mm 550.0 mm 565.0 mm 580.0 mm 595.0 mm
Standover height 721.8 mm 734.7 mm 757.4 mm 777.0 mm 796.6 mm 815.9 mm 839.1 mm
Bottom bracket offset -67.0 mm -67.0 mm -67.0 mm -67.0 mm -67.0 mm -67.0 mm -67.0 mm
Bottom bracket height 272.0 mm 272.0 mm 272.0 mm 272.0 mm 272.0 mm 272.0 mm 272.0 mm
Wheel base 972.0 mm 978.0 mm 980.1 mm 987.0 mm 994.2 mm 1,002.9 mm 1,012.0 mm
Bottom bracket center to toptube center 410.0 mm 430.0 mm 460.0 mm 480.0 mm 500.0 mm 520.0 mm 550.0 mm
Bottom bracket center to top of seattube 455.0 mm 475.0 mm 505.0 mm 525.0 mm 545.0 mm 565.0 mm 596.0 mm
Seat angle 74.5 ° 74.5 ° 74.0 ° 73.6 ° 73.3 ° 73.0 ° 72.5 °
Chainstay 405.0 mm 405.0 mm 405.0 mm 405.0 mm 405.0 mm 405.0 mm 405.0 mm
Reach 370.6 mm 378.8 mm 384.0 mm 388.9 mm 394.5 mm 400.1 mm 403.4 mm
Stack 502.6 mm 509.0 mm 526.7 mm 547.5 mm 568.3 mm 588.5 mm 607.7 mm
Stem length 80.0 mm 90.0 mm 100.0 mm 110.0 mm 110.0 mm 120.0 mm 120.0 mm

Beskrivning av utvalda cykelegenskaper
Oversized bottom bracket Addict
In order to best manage power transfer our engineers developed a down tube and bottom bracket intersection that is the widest of any road bike currently on the market. The wide cross section and smooth transitions better manage loads and yield a laterally robust structure which increases pedaling efficiency by effectively delivering power to the drivetrain rather than losing it to unwanted frame flex.

Tapered headtube Addict
The Addict employs a tapered 1 1/4 - 1 1/8 tapered head tube and co-developed fork, adding structural integrity to the frameset without overdoing it.

Race Geometry
The geometry of the Addict is Competition Road, validated by out ORICA GreenEDGE and IAM Cycling teams and enjoyed by the most discerning customers. The handling and fit you’ve come to expect from SCOTT will be familiarly aggressive.

IMP carbon mainframe
Our engineers have developed IMP™, the newest technology applied to carbon production. Our proprietary process allows for lighter construction by removing 11% of the material from the headtube intersection while increasing strength by utilizing high modulus stressed fibers for more precise fiber placement in critical areas. To compliment the IMP™ process, our frames benefit from our Naked External Tubeset™, which eliminates the cosmetic carbon layer to shave precious grams. Both HMX and HMF fibers are used in our carbon frames ensuring the utmost durability, security, and longevity for the frame.

F01 aero technology
F01 Technology is based on the theory that a partial airfoil shape without the trailing edge can produce the same aerodynamic advantage as a traditional foil shape. Modern foil shapes are largely based on models and ratios created for airplanes by the National Advisory Committee for Aeronautics (NACA), but because bicycles attain speeds far less than those of airplanes, these ratios do not necessarily apply to bikes. SCOTT Aero Science engineers have thus developed F01 Technology to create unique, bicycle specific tube shapes which maximize aerodynamic efficiency at lower air speeds.
