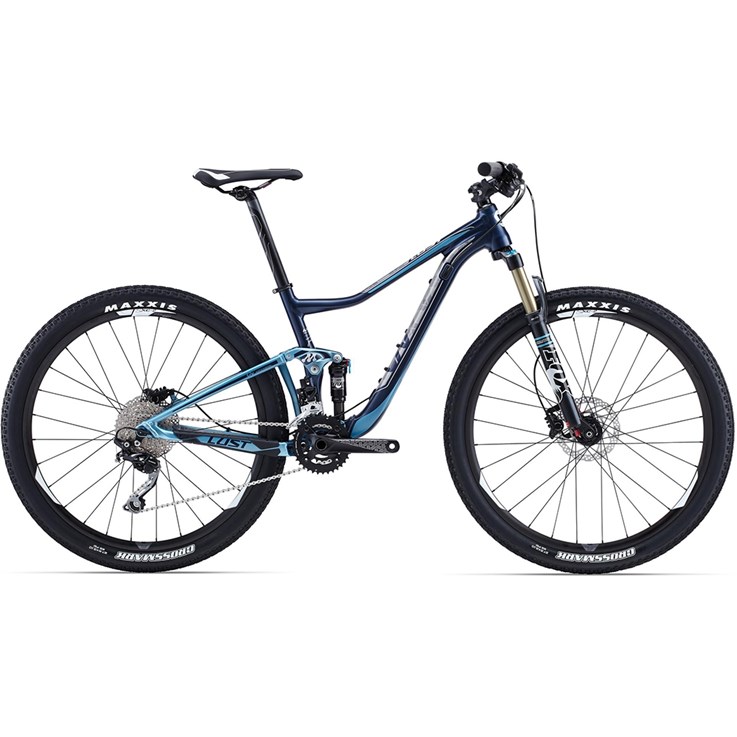

Liv Lust 2 Deep Blue

Unlock the secret to XC bliss: less weight plus more control equals more confidence, speed and fun on the trail.

Cykelbeskrivning

Lust features hydroformed ALUXX SL Aluminum Technology, specifically designed to fit the 27.5 wheel size and Liv’s women’s specifications. Combined with internal cable routing and integrated downtube and chainstay protection, and performance technology features such as OverDrive, PowerCore, and Maestro Suspension, the Lust offers premium off-road fit and performance.

>OverDrive steerer tube system for maximum front end stiffness
>142/135mm convertible dropout design
>Optimized women’s-specific 27.5 geometry for ideal handling and fit

Cykelkomponenter

Ramstorlekar

XS, S, M, L

Färg

Deep Blue

Ram

ALUXX SL-Grade Aluminum, 4"/100mm Maestro Suspension

Gaffel eller ev. stötdämpare fram

Fox Float CTD Evolution, 100mm travel, 15mm Thru-Axle, Tapered Steerer

Stötdämpare bak

Fox Float CTD Evolution

Handtag

Giant Contact

Styrstam

Giant Contact

Sadelstolpe

Giant Contact

Sadel

Liv Contact SL, Forward

Pedaler

N/A

Växelhandtag

Shimano Deore, 2x10 speed

Växelförare fram

SRAM X5, 10-speed

Växelförare bak

Shimano Deore, Shadow+, 10-speed

Bromsar

Shimano M446, 160mm

Bromshandtag

Shimano M506

Kassett eller ev. drev bak

Shimano HG50 11-36, 10-speed

Kedja

KMC X10

Vevparti

SRAM S1000, 22/36 custom

Vevlager

SRAM Press Fit

Fälgbana

Giant S-XC2 27.5 wheelset

Nav

Giant Tracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 135mm QR

Ekrar

Stainless 14G

Däck

Schwalbe Racing Ralph 27.5x2.25", Performance wire

Extra

derailleur hanger

Vikt

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.

Ramgeometri

Frame size

XS (34.5) S (39) M (44) L (49)

Head tube angle (°)

70.0 70.0 70.0 70.0

Seat tube angle (°)

73.0 73.0 73.0 73.0

Top tube length (cm)

55.0 57.0 59.0 60.0

Reach (cm)

N/A N/A N/A N/A

Head tube length (cm)

9.5 10.0 11.0 12.0

Stack (cm)

N/A N/A N/A N/A

Chain stay length (cm)

43.3 43.3 43.3 43.3

Wheelbase (cm)

105.4 106.9 108.9 110.0

Standover height (cm)

76.4 77.0 78.0 80.0

Cykelteknik

Giant Overdrive 2/Overdrive

As the first manufacturer to bring the tapered headtube to market—with the 2006 Glory mountain bike—Giant knows a thing or two about inventing solutions for improved steering precision. The original OverDrive technology resulted in groundbreaking stiffness-to-weight ratios, and the newer OverDrive 2 system on high-performance road and mountain bikes offers even further advantages.

Giant Overdrive 2

Features

Giant’s most advanced fork steerer-tube technology. Oversized headset bearings (1 1/4-inch top and 1 1/2-inch bottom bearings) and a tapered steerer tube combine for unprecedented steering performance with no additional weight.
>1 1/4-inch top bearing
>1 ½-inch bottom bearing
>1 1/4 –inch stem
>Tapered steerer-tube
>Custom OverDrive 2 expansion wedge

Benefit

Compared to the already stiff OverDrive system, OverDrive 2 provides up to 30 percent more torsional steering stiffness. This translates into industry-leading steering precision. Whether you’re sprinting for the finish or cornering hard in the most demanding conditions, you can ride with more power and confidence.

Giant Overdrive

Features

Giant’s original oversized fork steerer-tube technology. Designed to provide solid front-end steering performance, the system’s oversized headset bearings and tapered steerer tube provide optimal steering stiffness. Road models feature 1 1/8-inch top and 1 1/4-inch bottom bearings, while the mountain version features 1 1/8-inch top and 1 1/2-inch bottom bearings.

Benefit

OverDrive provides up to 15 percent more torsional steering stiffness than straight steerer-tube designs. This translates into much more accurate steering input from a rider’s hands, through the handlebar and stem, and down to the front wheel. Whether hammering uphill or carving through a corner, OverDrive transmits input directly to the front wheel for more precise handling.

Giant Maestro suspension

Whatever off-road adventures you seek, Giant's Maestro Suspension helps you make the most of your efforts. Control, traction, comfort, speed—you get more of everything with Maestro. From fast and efficient 4-inch-travel XC to full 8-inch DH bikes, Maestro is an adaptable system that offers smooth, active rear suspension on all types of terrain.

Pedaling efficiency

Whether you’re sprinting up a climb or coasting through a rock garden, Maestro Suspension performs consistently under pedaling power and doesn’t compromise efficiency.

Complete suspension activity

From high-frequency trail vibrations to heavy-hitting compressions, Maestro Suspension soaks up the full spectrum of trail impacts.

Total brake independence

Even under full braking force, Maestro Suspension remains fully active and reactive.

Giant 3F: Fit, Form, Function

Liv's unique 3F design philosophy ensures that, as a female rider, you are getting the best bike for your riding style. 3F stands for "Fit, Form, Function." These are the elements that guide Liv engineers and designers as they create your bike, apparel and gear. The 3F design philosophy produces the best and most appealing cycling equipment to help all women feel confident and enjoy the ride.

Fit

Liv bikes, apparel and gear are designed specifically for women. Liv's team of female designers and engineers consider all aspects of a woman's unique strengths and physical characteristics to create the only complete product collection designed solely for women. Examples of this include:
>Women's-specific fit based on global body dimension studies.
>Optimized stem lengths, handlebar width and drop, and crank arm length.
>Shorter brake reach.
>Comfortable saddle designed for female pelvis and hip shapes.
>Liv ApparelFit System with multiple fit options.

Form

Liv designers understand the importance of creating bikes, gear and apparel pieces that not only meet the highest performance standards, but also have a great look and feel. From crafting the lightest, smoothest riding bikes to designing distinctive color and graphics combinations, the Liv team is committed to providing the highest level of design and aesthetics. Examples include:
>Thoughtfully considered frame design.
>Dynamic use of color and graphics to create eye-catching designs.
>Color matching between rider gear and bikes.
>Flattering cuts and styles in all apparel items.
>Application of fashion color trends and patterns.

Function

Liv defines function by how well a product performs in its element. We strive to create lighter, faster, more confidence-inspiring bikes and products for women. Here are some of the ways Liv emphasizes Function:
>Utilizing Giant's world-leading craftsmanship and technology to produce a premium product collection 3F layup schedule results in custom, ultra-lightweight frame construction for the unique needs of female riders.
>Functional fabrics keep you comfortable and performing at your best.
>Women' s-specific chamois technology to fit female anatomy.

Giant 27.5 wheel technology

Superior performance without compromise. These are the reasons to ride Giant 27.5:

Lighter weight

Significantly lower bike and rotational wheel weight helps you climb faster with less effort.

Overall bike weight

Compare the weights of identically equipped bikes with different wheel sizes and you'll see substantial weight differences. As expected, the 26-inch-wheel bike is somewhat lighter than the 27.5, and substantially lighter than the 29 (up to two pounds of overall bike weight savings from 29 to 27.5). Every gram saved helps you ride faster.

Wheel/tire weight

The overall weight of a 27.5 wheel set (wheel, tire and inner tube) is only 5% greater than that of an identically built 26-inch wheel set. Compare this to the 12% increase of a 29-inch wheel set and you can see how a seemingly small increase in diameter results in substantial weight gain—and poorer performance when climbing or accelerating.

Weight comparison

Lighter wheels/tires result in a quicker acceleration and lighter overall bike weight - a win-win combination.

More efficient

Snappier acceleration and a reduced angle of attack for a smoother, more agile ride.

Rollover

Increased wheel diameter decreases the angle of attack (the angle in which a round object intersects a square object). This is a good thing. A 29-inch wheel rolls over a 6-centimeter square-edge obstacle 14% more efficiently than a 26-inch wheel does. In comparison, a 27.5-inch wheel rolls over the same obstacle 9.8% more efficiently than a 26-inch wheel does. Another way to analyze angle of attack is the degree of impact—where 26-inch equals X degree, 27.5 equals X-4 degrees and 29 equals X-6 degrees. Again, a shallower angle is better—so 29-inch takes the win, with 27.5 exhibiting nearly the same performance but without the weight penalty.

Acceleration

Arguably the most important benefit of 27.5 over 29 is quicker acceleration. This is the "snap" that a rider feels when they push hard on the pedals. It is affected not just by overall static weight but also where the weight is distributed throughout the wheel. The farther the weight is from the center of the hub, the slower the acceleration. So a similarly constructed 1000-gram 29-inch wheel is slower to accelerate than a 1000-gram 26-inch wheel—because the larger diameter rim and longer spokes place weight farther from the hub. The key to snappy acceleration is minimizing the weight of the outermost components (rim, nipples, spokes, tire, tube). As you can see, a 27.5-inch wheel is only 1.5% slower to accelerate than a similarly constructed 26-inch wheel, but a 29-inch wheel is 3.6% slower than a similarly constructed 26-inch wheel.

Better control

A larger tire contact patch, increased stiffness, and optimized frame geometry improve traction, braking and handling.

Traction

The larger the diameter of a wheel, the greater the contact patch of the tire. A larger contact patch results in better traction, which leads to improved acceleration, deceleration and cornering. As you can see, a 27.5-inch wheel has a similar contact patch to the 29.

Frame stiffness

Lateral (side-to-side) frame stiffness can be affected by wheel size. To accommodate larger wheels, frame dimensions must be elongated. Therefore, a size medium 29-inch wheel frame has more lateral flex (bottom bracket and headtube) than a size medium 27.5 or 26-inch wheel frameset. Additional flex compromises handling under heavy pedaling or sharp cornering.

Frame geometry

The larger the wheel, the more difficult it is to optimize geometry, especially on smaller frames. As the frame size decreases, headtube heights become higher (in relation to saddle height). On 26 or 27.5-inch frames, it's less of a problem, but geometry limitations can affect smaller 29-inch-wheel frames.
