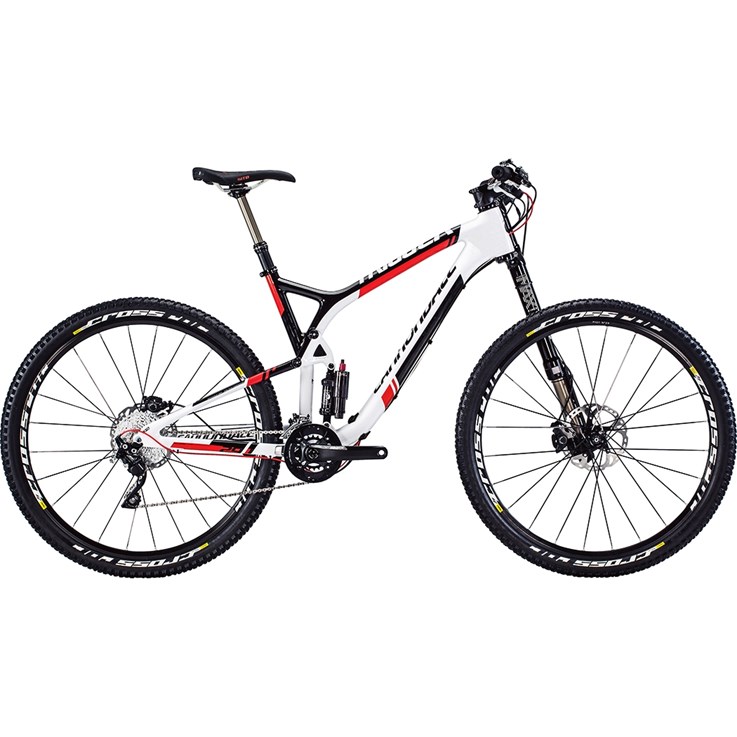

Cannondale Trigger 29 Carbon 2 Wht

Two personalities… and they 're both bad-ass. With its category-defying blend of agile, playful efficiency and fearless, roll-over-anything confidence, the Trigger 29 is so good at so many things, we almost don’t know how to define it. Part technical Enduro machine, part fast trail stomper, part mountain goat, and part monster truck, the Trigger 29 defies easy categorization, so we’ll settle for this one…FUN. Having dual personalities has never felt so sane.

Cykeltyp

>The most agile-handling long travel 29'er on the market.
>The best all-around all-mountain/trail bike for those who love the momentum and feel of 29" wheels.
>The genetically perfect result of Scalpel 29 and Jekyll "riding" together.

Cyklist

Aggressive-descending 29er fans who know the more efficiently they can climb, the more they can descend

Vikt

Cykelvikt

M 12,6 kg (Vikten gäller för CM2400_01/Cannondale Trigger 27,5 Carbon 2 Röd 2015)

Cykelspecifikation

Ram

Trigger 29, 130/80mm, BallisTec Hi-MOD Carbon, PF30, ISCG03, 1.5 Si headtube

Gaffel eller ev. stötdämpare fram

SuperMax 2.0 PBR 130 29, PBR Trail damper, Hybrid Needle Bearing Tech, 60mm offset

Vevparti

SRAM S1400 AM, BB30, 36/22T

Vevlager

Cannondale Alloy PressFit30

Växelreglage

Shimano XT w/ I-Spec

Kassett eller ev. drev bak

Shimano XT, 11-36, 10-speed

Kedja

KMC X10, 10-speed

Växelförare fram

Shimano XT, direct mount

Växelförare bak

Shimano XT, Shadow Plus

Fälgar

Mavic Crossroc 29 WTS, tubeless ready

Nav

Mavic Crossroc 29, Lefty SM front, 142x12mm rear

Däck Fram

Mavic Crossroc 27.5 WTS, 29x2.2", tubeless ready

Pedaler

Köp pedaler separat

Bromsar

s Shimano XT Trail, 180/180mm

Styre

Cannondale C1 riser, carbon, 740x15mm

Styrstolpe eller ev. styrstam

Cannondale C1, 1.5", 31.8, 5 deg.

Styrlager

Cannondale HeadShok Si

Bromshandtag

Shimano XT Trail

Ekrar

Mavic Crossroc 29

Handtag eller ev. linda

Cannondale Dual Locking Grips

Sadel

WTB Volt Race, Cromo

Sadelstolpe

KS LEV Integra dropper, internal routing, 31.6

Stötdämpare bak

Fox DYAD RT2, 130/80mm adj. travel, 2015 tune

Övrigt

High pressure shock pump

Ramgeometri

Sizes

SM MD LG XL

Seat tube length (cm/in)

42.5/16.7 44.5/17.5 48.5/19.1 50.9/20.0

Top tube length horizontal (cm/in)

57.8/22.8 60.6/23.9 63.4/25.0 66.2/26.1

Top tube length actual (cm/in)

53.2/20.9 55.9/22.0 58.5/23.0 61.3/24.1

Head tube angle (degrees)

69.0° H 69.5° H

Seat tube angle effective (degrees)

73.5° H H H

Seat tube angle actual (degrees)

67.5° 68.5° H 69.0°

Stand over height * (cm/in)

74.5/29.3 76.0/29.9 77.5/30.5 78.9/31.1

Head tube length (cm/in)

9.7/3.8 11.0/4.3 12.2/4.8 13.4/5.3

Wheel base (cm/in)

112.4/44.3 115.3/45.4 117.6/46.3 120.5/47.4

Front center (cm/in)

67.8/26.7 70.7/27.8 73.0/28.7 75.8/29.9

Chain stay length (cm/in)

44.8/17.6 H H H

Bottom bracket drop (cm/in)

2.8/1.1 H H H

Bottom bracket height (cm/in)

34.8/13.7 H H H

Fork rake (cm/in)

6.0/2.4 H H H

Trail (cm/in)

8.8/3.4 H 8.4/3.3 H

Stack (cm/in)

60.4/23.8 61.6/24.2 63.0/24.8 64.1/25.2

Reach (cm/in)

39.9/15.7 42.4/16.7 44.7/17.6 47.2/18.6

Cykelegenskaper

Travel

80mm to 130mm on-the-fly adjustable rear travel. 130mm front.

Lefty SuperMax

The most torsionally rigid suspension fork ever made, the SuperMa x brings unheard-of levels of steering precision to longer travel 29'ers. The unique 60mm offset helps increase both high speed stability and low speed agility - perfect for Trigger 29's full-throttle attitude.

Dyad RT2

The DYAD shock provides the same two-shocks-in-one benefits and performance of the Jekyll, but dialed for the Trigger 29: shorter travel (80mm) ELEVATE mode delivers near race-bike efficiency, while the longer travel FLO W (130mm) mode offers up a plusher, all-mountain feel.

Attitude adjust

Switch between modes on the DYAD and the bike’s geometry changes too. Steeper and more nimble in ELEVATE mode, lower and more stable in FLOW mode.

Ballistec Carbon/Smartformed Alloy

Using fibers developed by the military for ballistic armoring, this high-strength carbon construction process yields a full-carbon frame that's lighter than aluminum and pound-for-pound stronger than steel. The alloy versions use our ultra sophisticated SmartFormed aluminum construction for a frame that's strong yet light.

ECS-TC System

Clamped, 15mm thru-axles in the shock linkage and swingarm pivot, as well as double bearings at the rear dropouts eliminate flex and provide unmatched center-stiffness for complete control.

Zero Pivot

The carbon Triggers utilize our flexing Zero Pivot seatstays, which save weight and actually increase lateral stiffness over bearing pivot rear stays.
