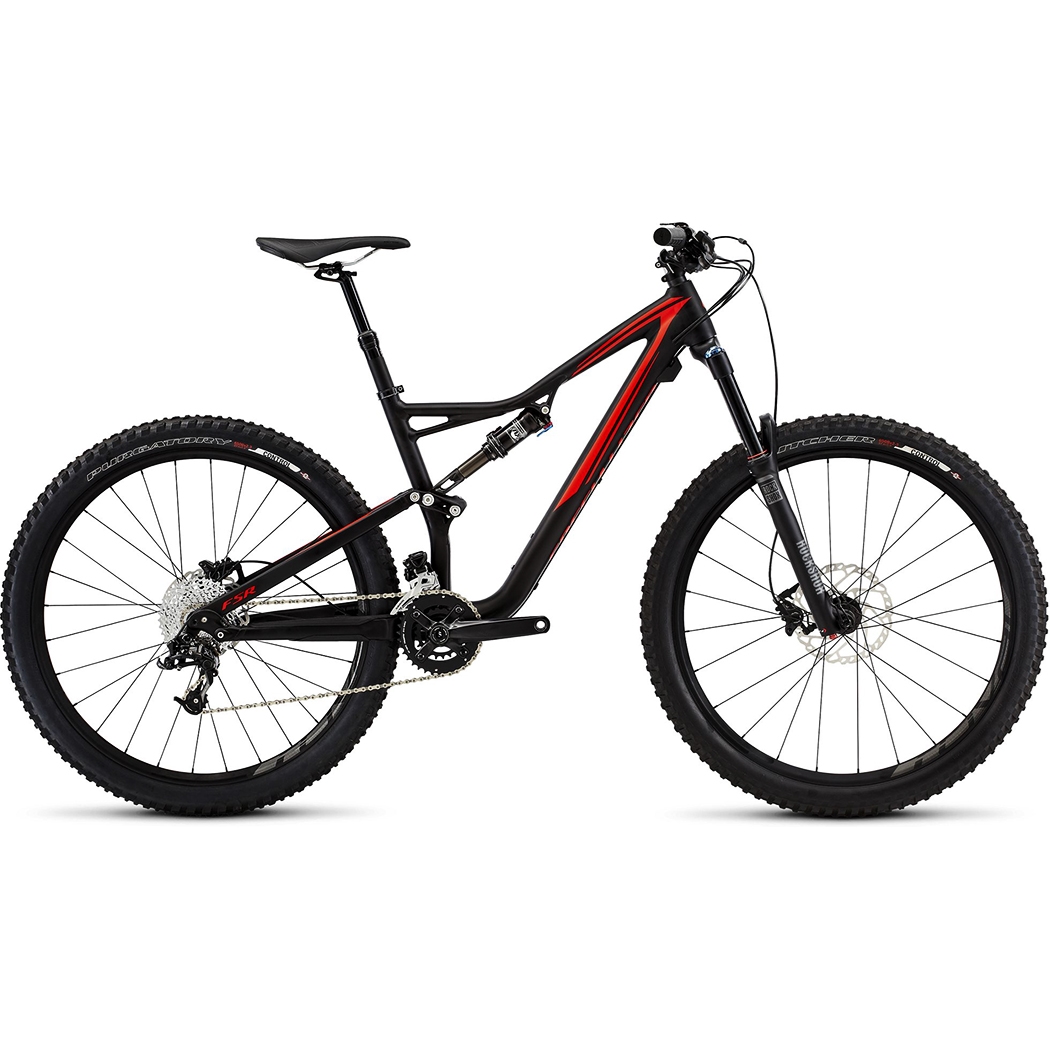

Specialized Stumpjumper FSR Comp 650B Satin Black/Rocket Red

Cykelbeskrivning

When you need to blend ruggedness, efficiency, and down right nimbleness into one trail bike, it's pretty damn hard to beat the confidence inspiring construction of an alloy frame like the Stumpjumper FSR Comp 650b. It features an M5 alloy construction that's lightweight, durable, and plenty stiff and compliant, while a durable blend of Shimano and SRAM components have been hand selected to ensure that you get the most performance over rugged terrain possible. And when you factor in our proprietary Rx Trail Tune at the shock, plus an aggressive, trail-eating geometry that features absurdly short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, you get a trail bike that you can be confident in, season after season.

>M5 alloy Trail Chassis with Stumpjumper FSR rear end blends durability, stiffness, and light weight, while 150mm of travel Trail 650b Geometry provide more than capable handling.
>Connected with our FSR 6-Pack Linkage, a custom FOX FLOAT Evolution rear shock features AUTOSAG for easy setup and 150mm of plush, adjustable suspension, while our Rx Trail Tune provides a more supple, responsive, and efficient feel for climbing up and descending down the trail.
>RockShox Revelation RC3 650b fork features a 15mm Maxle Lite thru-axle and 150mm of plush travel to take on hits and bumpy terrain with more control and confidence.
>650bx2.3” Specialized Butcher Control front tire inspires confidence through any terrain.
>650bx2.3” Specialized Purgatory Control rear tire delivers reliable traction over a diverse section of soils and conditions.
>Command Post IRcc seatpost features 12 positions of up to 125mm of height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 alloy, Trail 650b Geometry, internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, front derailleur compatible w/ Taco Blade, 150mm travel.

Stötdämpare bak

Custom FOX FLOAT Evolution CTD, AUTOSAG, Rx Trail Tune, 197x47.6mm.

Gaffel eller ev. stötdämpare fram

RockShox Revelation RC3 650b, Solo Air spring, 150mm travel, 3-position compression adjust, rebound adjust, tapered steerer, 42mm offset, 15mm Maxle Lite thru-axle.

Styrlager

Hella Flush, 1-1/8" and 1-1/2" threadless, Campy style upper w/ 1-1/2" lower, cartridge bearings.

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise.

Styre

Specialized, 6000 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm, 31.8mm.

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness.

Bromsar fram

Shimano Deore, hydraulic disc, resin pads.

Bromsar bak

Shimano Deore, hydraulic disc, resin pads.

Bromshandtag

Shimano BL-M447, I-spec compatible.

Växelförare fram

SRAM X7, mid direct mount, w/ Taco Blade.

Växelförare bak

SRAM X9 Type 2, 10-speed, mid cage.

Växelreglage

2014, new X7 10spd rear shifter, ball bearing design, zero loss mechanism.

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36t.

Kedja

SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish.

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed double, PF30, 36/22T, 104/64mm BCD spider.

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge.

Pedaler

Nylon, CEN std., w/ toe clips.

Fälgar

Roval 650b, alloy, 29mm inner width, 24/28h.

Nav fram

Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 24h.

Nav bak

Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 28h.

Ekrar

DT Swiss Industry, stainless.

Däck fram

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3".

Däck bak

Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3".

Innerslang

Standard, Presta valve.

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm.

Sadelstolpe

Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm.

Sadelstolpsklämma

Specialized, 7050 alloy, single bolt, 34.9mm.

Ramgeometri

Frame size

S M L XL.

Stack

590mm 599mm 608mm 617mm.

Reach

388mm 414mm 442mm 464mm.

Head tube length

95mm 105mm 115mm 125mm.

Head tube angle

67° 67° 67° 67°.

Bottom bracket height

335mm 335mm 335mm 335mm.

Bottom bracket drop

18mm 18mm 18mm 18mm.

Trail

104mm 104mm 104mm 104mm.

Fork length full

542mm 542mm 542mm 542mm.

Fork rake offset

42mm 42mm 42mm 42mm.

Front to center

677mm 706mm 738mm 764mm.

Chain stay length

420mm 420mm 420mm 420mm.

Wheel base

1096mm 1126mm 1158mm 1184mm.

Seat tube length horizontal

553mm 585mm 618mm 646mm.

Standover height

737mm 743mm 757mm 769mm.

Seat tube length

396mm 430mm 468mm 523mm.

Seat tube angle

74° 74° 74° 74°.

Handlebar width

750mm 750mm 750mm 750mm.

Stem length

45mm 60mm 60mm 60mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

390mm 430mm 430mm 430mm.
