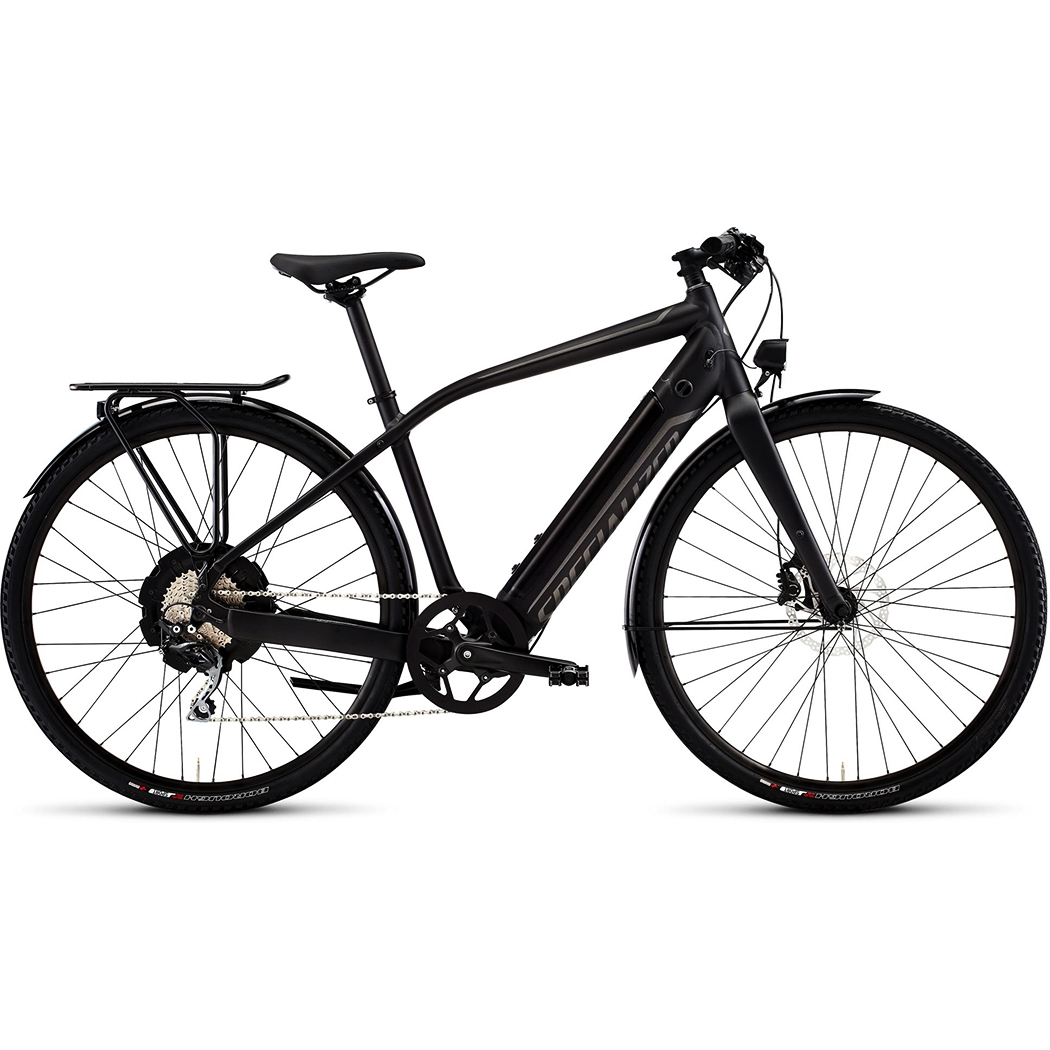

Specialized Turbo FLR Satin Black/Silver Reflective

Cykelbeskrivning

With its elegant design and smooth, powerful electric assist motor capable of an easy cruising speed of 25kph, the Turbo FLR is a versatile and capable e-bike. Coupled with integrated head and taillights as well as built-in fenders and rear rack, the Turbo FLR is the ultimate urban commuting bicycle.

>The Herrmans H-Flow headlight makes sure you can see—and be seen—no matter the conditions, keeping you safe and visible.
>Integrated rack and fenders keep mud and water off your clothing and allow for increased gear hauling capabilities.
>The custom Turbo FLR motor provides all the smooth and powerful accelerations you need to get off the line at stop lights and to your destination quickly.
>The Turbo Clean Cockpit puts all the controls at your thumb tips, with an illuminated display and regenerative braking options to help keep your battery charged up in a pinch.
>The Turbo's integrated down tube battery has a self-locking key release to prevent theft, as well as handy LED power indicators to give you charge levels at a glance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Turbo alloy, smooth welds, speed optimized geometry, fully-integrated
down tube battery, internal cable routing, 700c, X12 thru-axle
dropout, full fender/rack mounts

Gaffel eller ev. stötdämpare fram

Custom Turbo alloy, fender eyelets, Low Rider mounts

Styrlager

1-1/8" upper/lower, threadless, Campy style, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized, 3D forged alloy, 4-bolt, 7-degree rise

Styre

Specialized, flat bar, double-butted 6061 alloy, 9-degree backsweep

Handtag

Specialized Body Geometry XCT, dual compound, lock-on

Bromsar fram

Shimano Deore BR-M506, resin pads, 180mm rotor

Bromsar bak

Shimano Deore BR-M506, resin pads, 180mm rotor

Växelförare bak

Shimano Deore RD-M610 Shadow, 10-speed

Växelreglage

Shimano Deore, 10-speed

Kassett eller ev. drev bak

Shimano, 10-speed, 11-36t

Kedja

KMC X10, 10-speed, w/ reusable MissingLink

Vevparti

Specialized Stout, 3 pc., w/ alloy bashguard

Vevparti utväxling

48T

Vevlager

Square taper, cartridge bearings

Pedaler

Nylon body, alloy cage, low profile bearing system

Fälgar

700c, disc, alloy, double-wall, pin joint, w/ eyelets, 36h

Nav fram

Specialized, Hi Lo disc, alloy, RCC bearing system, QR, 36h

Ekrar

Stainless, 2.3/2.0/2.0mm

Däck fram

Specialized Borough, 60TPI, wire bead, BlackBelt protection,
700x45mm

Däck bak

Specialized Borough, 60TPI, wire bead, BlackBelt protection,
700x45mm

Innerslang

Standard, Schrader valve

Sadel

Body Geometry Targa Sport, steel rails, 155mm

Sadelstolpe

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm

Sadelstolpsklämma

Alloy, 34.9mm

Elmotor

Turbo Specialized Motor, 200Watt, X12 axle
USER INTERFACE Turbo Clean Cockpit, integrated thumb control, illuminated display

Batteri

Turbo integrated down tube battery, self-locking key release,
on-board or off-bike charge capable, LED power indicators, start-up
diagnostic feature, magnetic connectors, 396Wh capacity

Batteriladdare

Custom Specialized, 2ah, w/ Rosenberger plug

Elkablage

Wiring harness, DCDC converter, Rosenberger connector supporter

Belysning fram

Herrmans H-Flow

Belysning bak

Herrmans I-Valo, integrated w/ rear rack

Kedjeskydd

Aluminum

Stöd

Specialized, center mount

Pakethållare

Turbo Rack, w/ integrated rear LED light

Skärmar

Specialized Turbo, aluminum

Lås

Turbo Battery Lock, includes 2 keys

Ringklocka

Mini Bell, aluminum, w/ pivoted lever.

Ramgeometri

SIZES S M L XL.

Stack

(mm) 606 616 630 655.

Reach

(mm) 380 395 405 422.

Head tube length

(mm) 179 189 204 230.

Head tube angle

(deg) 71 71 71 71.

Bottom bracket height

(mm) 289.5 289.5 289.5 289.5.

Bottom bracket drop

(mm) 70 70 70 70.

Trail

(mm) 78 78 78 78.

Fork length full

(mm) 402 402 402 402.

Fork rake offset

(mm) 43 43 43 43.

Front to center

(mm) 614 632 647 673.

Chain stay length

(mm) 455 455 455 455.

Wheel base

(mm) 1060 1078 1093 1119.

Seat tube length horizontal

(mm) 577 595 610 635.

Standover height

(mm) 743 794 827 866.

Seat tube length

(mm) 420 460 500 540.

Seat tube angle

(deg) 72 72 72 72.

Handlebar width

(mm) 680 680 680 680.

Stem length

(mm) 70 90 90 100.

Crank length

(mm) 170 175 175 175.

Seatpost length

(mm) 350 350 350 350.
