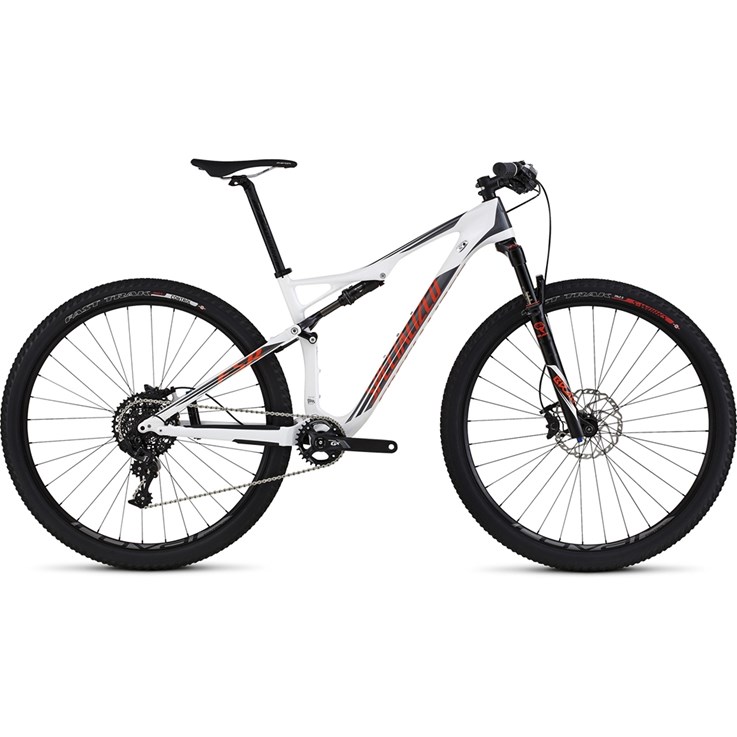

Specialized Epic FSR Elite Carbon World Cup 29 Gloss White/Charcoal/Moto Orange

Cykelbeskrivning

Where speed meets downright tough, you'll find our Epic Elite Carbon World Cup. Compared to a "standard" Epic, you'll find that the World Cup features shorter tube lengths and chainstays and a significantly tighter geometry. Why? Two reasons: more explosive power transfer and nimbler handling. And when coupled with the Elite's carbon chassis and M5 alloy rear end, you start to get the full picture of how this bike is balanced. But if you need more clarity, look no further than its build. It features a powerful mix of workhorse components from SRAM and Shimano, hand-built alloy wheels, and one of the most sought after suspension systems in the world—complete with our ultra-efficient Brain technology. So if you need a XC rig that can dish it out season after season, you've come to the right place.

>By pairing a FACT 9m carbon fiber frame w/ a M5 alloy rear end with our World Cup XC 29 Geometry, this Epic places a focus on tight tube angles and light overall weight for explosive speed and nimble handling on the race circuit.
>Custom FOX/ Specialized remote Mini Brain rear shock features AUTOSAG for easy set up and 95mm of fine-tunable suspension. To maximize efficiency, the proprietary design allows the shock to differentiate rider input and trail bumps, so the suspension feels firm under effort and plush over rough terrain.
>The RockShox SID Brain 29 fork provides 100mm of efficient travel. It features Brain technology that distinguishes between terrain and rider input in order to maximize your power, while a Brain Fade adjusts the oil flow when not hitting bumps.
>Roval Control 29 alloy wheels are hand-built to achieve the perfect tension and true, with the added benefit of ensuring a longer lifespan. However, the lightweight construction lends itself to sheer speed on climbs, while the wide design makes for an agile and confident wheel for descents.
>SRAM's X1 one-by groupset controls the drivetrain, offering up reliable performance and a wide range of gears for both the climbs and descents. Compared to a typical two-by setup, X1 shows weight savings, less required maintenance, and minimal chance of chain drop, making it perfectly suited for the task at hand.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 9m carbon, World Cup XC 29 Geometry, M5 rear triangle, carbon PF30 BB, carbon headset cups, 142mm dropouts, internal cable routing, PM 160 rear brake, SWAT tool cradle.

Stötdämpare bak

FOX/Specialized remote Mini Brain, AUTOSAG, Brain Fade adjust I-Valve, 200x48mm.

Gaffel eller ev. stötdämpare fram

RockShox SID Brain 29, Solo Air spring, 100mm travel, bottom-mount Brain fade adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle.

Styrlager

1-1/8" upper, 1-1/2" lower, threadless, Campy style, cartridge bearings.

Styrstolpe eller ev. styrstam

Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware.

Styre

Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm, 31.8mm.

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness.

Bromsar fram

Shimano SLX, hydraulic disc, metallic pads, I-spec compatible.

Bromsar bak

Shimano SLX, hydraulic disc, metallic pads, I-spec compatible.

Bromshandtag

Shimano SLX, I-spec compatible.

Växelförare bak

SRAM X1, 11-speed, alloy cage.

Växelreglage

SRAM X1, 11-speed, trigger.

Kassett eller ev. drev bak

SRAM XG-1175, 11-speed, 10-42t.

Kedja

KMC X11L, 11-speed, w/ reusable MissingLink.

Vevparti

SRAM S-1000, 11-speed, PF30, 30T X-Sync ring, 94mm BCD spider.

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge.

Pedaler

Nylon, CEN std., w/ toe clips.

Fälgar

Roval Control 29, alloy, disc, 21mm inner width, 32h.

Nav fram

Roval Control, 15mm end caps, 32h.

Nav bak

Roval Control 142+, SRAM XX1 XD driver body, 32h.

Ekrar

DT Swiss Revolution.

Däck fram

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0".

Däck bak

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0".

Innerslang

Standard, Presta valve.

Sadel

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm.

Sadelstolpe

Specialized, alloy, single bolt, 27.2mm.

Sadelstolpsklämma

Alloy, 31.6mm.

Ramgeometri

Frame size

S M L XL.

Stack

583mm 597mm 611mm 630mm.

Reach

398mm 423mm 446mm 465mm.

Head tube length

90mm 105mm 120mm 140mm.

Head tube angle

71° 71° 71° 71°.

Bottom bracket height

332mm 332mm 332mm 332mm.

Bottom bracket drop

40mm 40mm 40mm 40mm.

Trail

82mm 82mm 82mm 82mm.

Fork length full

499mm 499mm 499mm 499mm.

Fork rake offset

46mm 46mm 46mm 46mm.

Front to center

633mm 661mm 691mm 717mm.

Chain stay length

439mm 439mm 439mm 439mm.

Wheel base

1073mm 1103mm 1131mm 1157mm.

Seat tube length horizontal

562mm 592mm 618mm 643mm.

Standover height

770mm 774mm 780mm 793mm.

Seat tube length

400mm 434mm 470mm 520mm.

Seat tube angle

74° 74° 74° 74°.

Handlebar width

720mm 720mm 720mm 720mm.

Stem length

70mm 90mm 100mm 110mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

350mm 400mm 400mm 400mm.
