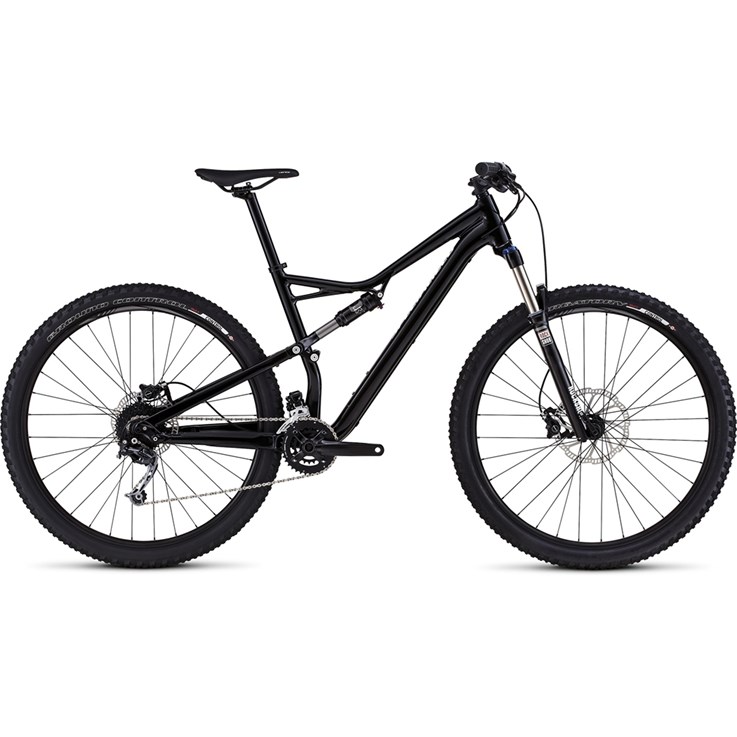

Specialized Camber FSR 29 Gloss Black/White/Clean

Cykelbeskrivning

The Camber 29 is designed for maximum speed over the entire trail. In other words, it blends all of the trail bike characteristics that you want with the XC climbing prowess that you need. This is achieved by thoughtfully combining our M5 alloy Trail Chassis with a Camber FSR rear end. The combination results in blending lightweight, rigidity, and durability in one package. At both ends of the bike, you'll find sufficient travel lengths that deliver plenty of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 29 Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it. For the build, we selected components that focus on strength and performance, like a custom SRAM double-ring crankset and powerful Shimano hydraulic disc brakes.

>M5 alloy Trail Chassis w/ Camber FSR rear end has been paired with our Trail 29 Geometry to create a bike that's fast, durable, and just at home on the climbs as it is mowing over rock gardens. It also features our Taco Blade technology for the shortest, most nimble rear end possible, and internal shift cable routing to make clean lines and reliable shifting through any condition.
>Connected with our FSR Concentric Linkage, a Custom X-Fusion 02 Pro RL rear shock provides 120mm of responsive travel, rebound adjust for fine-tuned performance, and a lockout for maximum efficiency on climbs.
>The RockShox Recon Silver 29 features 120mm of plush, predictable travel, plus stiff 32mm stanchions and a PopLoc remote lockout for the climbs.
>A 29x2.3" Purgatory Control tire at the front and a 2.3" Ground Control tire at the rear work in tandem to provide remarkable traction, speed, and cut-resistance.
>Tektro Gemini Comp hydraulic disc brakes put out plenty of stopping power and intuitive modulation, all while retaining a comfortable, ergonomic lever design.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 alloy, Trail 29 Geometry, threaded BB, 142mm dropouts, internal shift cable routing, w/ Taco Blade, 120mm travel.

Stötdämpare bak

Custom X-Fusion 02 Pro RL, air sleeve, rebound adjust, lockout, 205x53mm.

Gaffel eller ev. stötdämpare fram

RockShox Recon Silver 29, Solo Air spring, 120mm travel, TurnKey compression adjust, 46mm offset, 15mm Maxle Lite thru-axle.

Styrlager

Hella Flush, 1-1/8" and 1-1/2" threadless, Campy style upper w/ 1-1/2" lower, cartridge bearings.

Styrstolpe eller ev. styrstam

Specialized Trail, forged alloy, 4-bolt, 8-degree rise.

Styre

Specialized, butted 6000 alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 750mm, 31.8mm.

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness.

Bromsar fram

Tektro Gemini Comp, hydraulic disc, resin/metallic pads, S/M: 180mm rotor, L/XL: 200mm rotor.

Bromsar bak

Tektro Gemini Comp, hydraulic disc, resin/metallic pads, S/M: 160mm rotor, L/XL: 180mm rotor.

Bromshandtag

Tektro Gemini Comp, hydraulic, reach adjust.

Växelförare fram

SRAM X7, mid direct mount, w/ Taco Blade.

Växelförare bak

Shimano Deore Shadow, 9-speed, SGS long cage.

Växelreglage

Shimano Alivio, 9-speed.

Kassett eller ev. drev bak

SRAM PG-920, 9-speed, 11-34t.

Kedja

SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish.

Vevparti

Custom SRAM S-1255, GXP spindle, 10-speed, 36/22T, 104mm BCD spider.

Vevlager

SRAM GXP XR, 73mm.

Pedaler

Nylon, 9/16", loose ball bearings, w/ reflectors .

Fälgar

Alex XD, 650b, 24/28h.

Nav fram

Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 24h.

Nav bak

Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 28h.

Ekrar

Stainless, 14g.

Däck fram

Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3".

Däck bak

Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3".

Innerslang

Standard, Presta valve.

Sadel

Body Geometry mountain, hollow Cr-Mo rails, 143mm.

Sadelstolpe

Alloy, 2-bolt, 12.5mm offset, 30.9mm, anti-corrosion hardware.

Sadelstolpsklämma

Specialized, 7050 alloy, single bolt, 34.9mm.

Ramgeometri

Frame size

S M L XL XXL.

Stack

609mm 609mm 627mm 655mm 678mm.

Reach

399mm 427mm 445mm 471mm 487mm.

Head tube length

95mm 95mm 115mm 145mm 170mm.

Head tube angle

68.5° 68.5° 68.5° 68.5° 68.5°.

Bottom bracket height

330mm 330mm 330mm 330mm 330mm.

Bottom bracket drop

42mm 42mm 42mm 42mm 42mm.

Trail

97mm 97mm 97mm 97mm 97mm.

Fork length full

531mm 531mm 531mm 531mm 531mm.

Fork rake offset

46mm 46mm 46mm 46mm 46mm.

Front to center

673mm 701mm 726mm 763mm 788mm.

Chain stay length

437mm 437mm 437mm 437mm 437mm.

Wheel base

1107mm 1135mm 1160mm 1197mm 1222mm.

Seat tube length horizontal

562mm 590mm 613mm 647mm 669mm.

Standover height

734mm 739mm 752mm 764mm 778mm.

Seat tube length

396mm 430mm 468mm 523mm 523mm.

Seat tube angle

75° 75° 75° 75° 75°.

Handlebar width

750mm 750mm 750mm 750mm 750mm.

Stem length

60mm 60mm 75mm 90mm 90mm.

Crank length

170mm 175mm 175mm 175mm 175mm.

Seatpost length

380mm 430mm 430mm 430mm 430mm.
