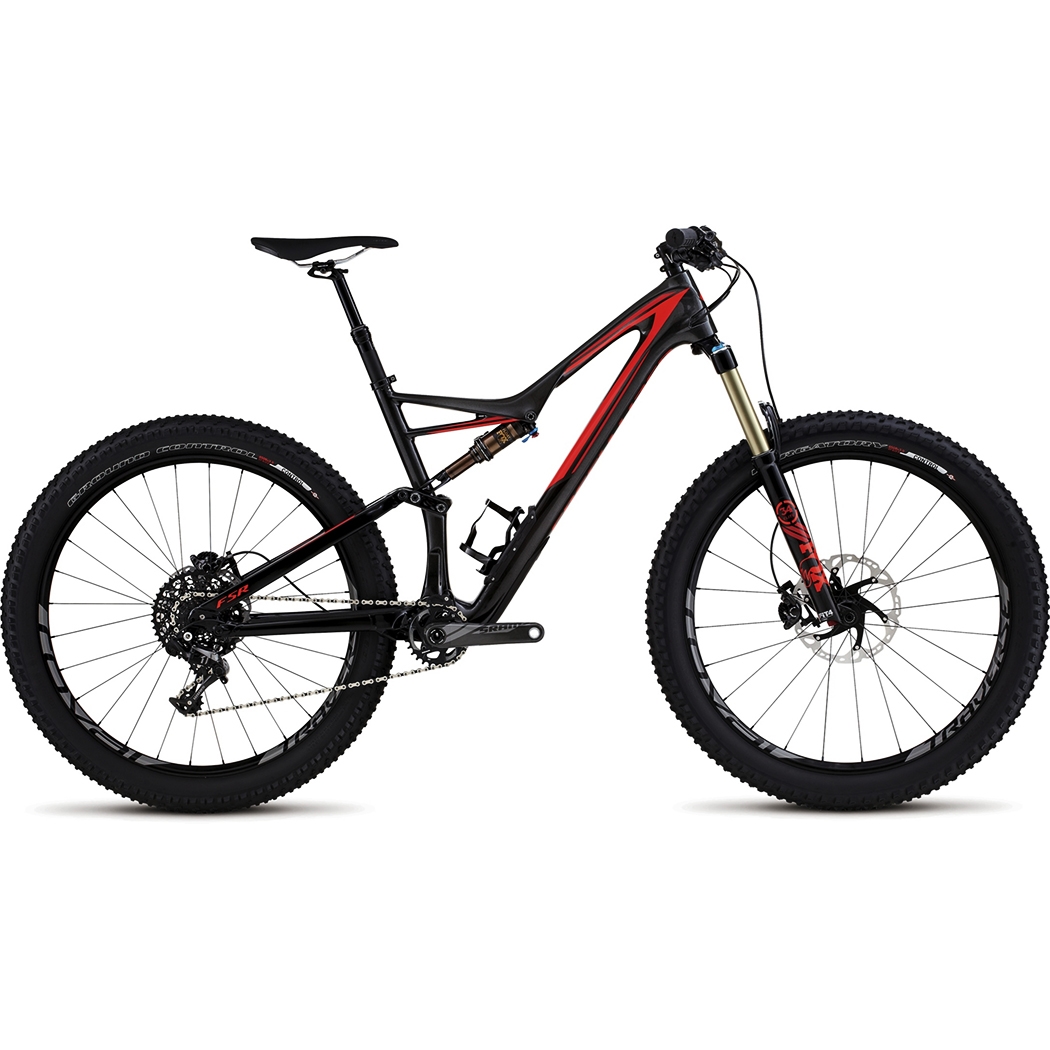

Specialized Stumpjumper FSR Expert Carbon 6Fattie Gloss/Silver Tint Carbon/Rocket Red/Flo Red

Cykelbeskrivning

After one ride on the all-new Stumpjumper FSR Expert Carbon 6Fattie, you'll never be riding trail again. It's a bold statement to make, but the increase in traction, control, and floatation that our 6Fattie Wheel System provides is nothing short of revolutionary. And then, of course, there's the rest of the bike. It features our FACT 9m carbon fiber for the bulk of the construction in order to provide an ultra-lightweight, strong, and stiff frame. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. And when you factor in a build spec that mixes some of SRAM and Shimano's best performing, durable components, you have a bike that will have you never looking back—unless it's to see your buddies eating your dust.

>FACT 9m carbon fiber Trail Chassis with Stumpjumper 6Fattie M5 alloy rear end with 148mm spacing blends stiffness with light weight to form the pinnacle of efficiency, while 135mm of travel, fully enclosed cable routing, and integrated SWAT Door create exceptional handling and zero-hassle storage.
>Connected with our FSR 6-Pack Linkage, a custom FOX FLOAT Factory DPS rear shock features 135mm of plush, adjustable suspension, while our Rx Trail Tune provides a more supple, responsive, and efficient feel for climbing up and descending down the trail.
>FOX 34 Plus Peformance fork provides 150mm of trail-eating travel. It accepts 15mm thru-axles for added responsiveness and strength, while its three-position compression adjust puts out the perfect ride quality for every stage of the trail.
>650bx3.0" 6Fattie Purgatory tire features a perfectly sized contact patch for life-changing levels of traction and floatation, all without sacrificing climbing efficiency or descending prowess.
>650bx3.0" 6Fattie Ground Control tire features the perfect contact patch size to traction and floatation in the corners and while climbing.
>Command Post IRcc seatpost features 12 positions of up to 125mm of height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 9m carbon, Trail 6Fattie Geometry, FACT IS carbon construction, M5 alloy rear triangle, SWAT Door integration, PF30 BB, fully enclosed internal cable routing, 148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel.

Stötdämpare bak

FOX FLOAT Factory DPS, AUTOSAG, Rx Trail Tune, Kashima coating, 197x47.6mm.

Gaffel eller ev. stötdämpare fram

FOX 34 Plus Performance Elite, 150mm travel, 3-position compression adjust, tapered steerer, 51mm offset, 15mm thru-axle.

Styrlager

Hella Flush, 1-1/8" and 1-1/2" threadless, Campy style upper w/ 1-1/2" lower, cartridge bearings.

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise.

Styre

Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 750mm, 31.8mm.

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness.

Bromsar fram

Shimano Deore XT, Ice-Tech metallic pads.

Bromsar bak

Shimano Deore XT, Ice-Tech metallic pads.

Bromshandtag

Shimano XT, I-spec compatible.

Växelförare bak

SRAM X01, 11-speed, carbon cage.

Växelreglage

SRAM X1, 11-speed, trigger.

Kassett eller ev. drev bak

SRAM XG-1180, 11-speed, 10-42t.

Kedja

SRAM PC-X1, 11-speed.

Vevparti

Custom SRAM S-2200, carbon, PF30 spindle, 28T, direct mount.

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge.

Pedaler

Nylon, CEN std., w/ toe clips.

Fälgar

Roval Traverse 650b, alloy, disc, 29mm wide, 24/28h.

Nav fram

Roval Traverse, 15x110mm thru-axle, 24h.

Nav bak

Roval Traverse, SRAM XX1 XD driver body, 12x148mm thru-axle, 28h.

Ekrar

DT Swiss Revolution.

Däck fram

Specialized 6Fattie Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0".

Däck bak

Specialized 6Fattie Ground Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0".

Innerslang

Standard, Presta valve.

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm.

Sadelstolpe

Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm.

Sadelstolpsklämma

Specialized, 7050 alloy, single bolt, 34.9mm.

Ramgeometri

Frame size

S M L XL.

Stack

618mm 618mm 646mm 664mm.

Reach

386mm 413mm 431mm 457mm.

Head tube length

95mm 95mm 125mm 145mm.

Head tube angle

67° 67° 67° 67°.

Bottom bracket height

331mm 331mm 331mm 331mm.

Bottom bracket drop

33mm 33mm 33mm 33mm.

Trail

96.5mm 96.5mm 96.5mm 96.5mm.

Fork length full

560mm 560mm 560mm 560mm.

Fork rake offset

51mm 51mm 51mm 51mm.

Front to center

687mm 714mm 744mm 777mm.

Chain stay length

437mm 437mm 437mm 437mm.

Wheel base

1122mm 1149mm 1179mm 1212mm.

Seat tube length horizontal

563mm 590mm 616mm 648mm.

Standover height

754mm 761mm 770mm 777mm.

Seat tube length

396mm 430mm 468mm 523mm.

Seat tube angle

74° 74° 74° 74°.

Handlebar width

750mm 750mm 750mm 750mm.

Stem length

45mm 60mm 60mm 60mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

390mm 430mm 430mm 430mm.
