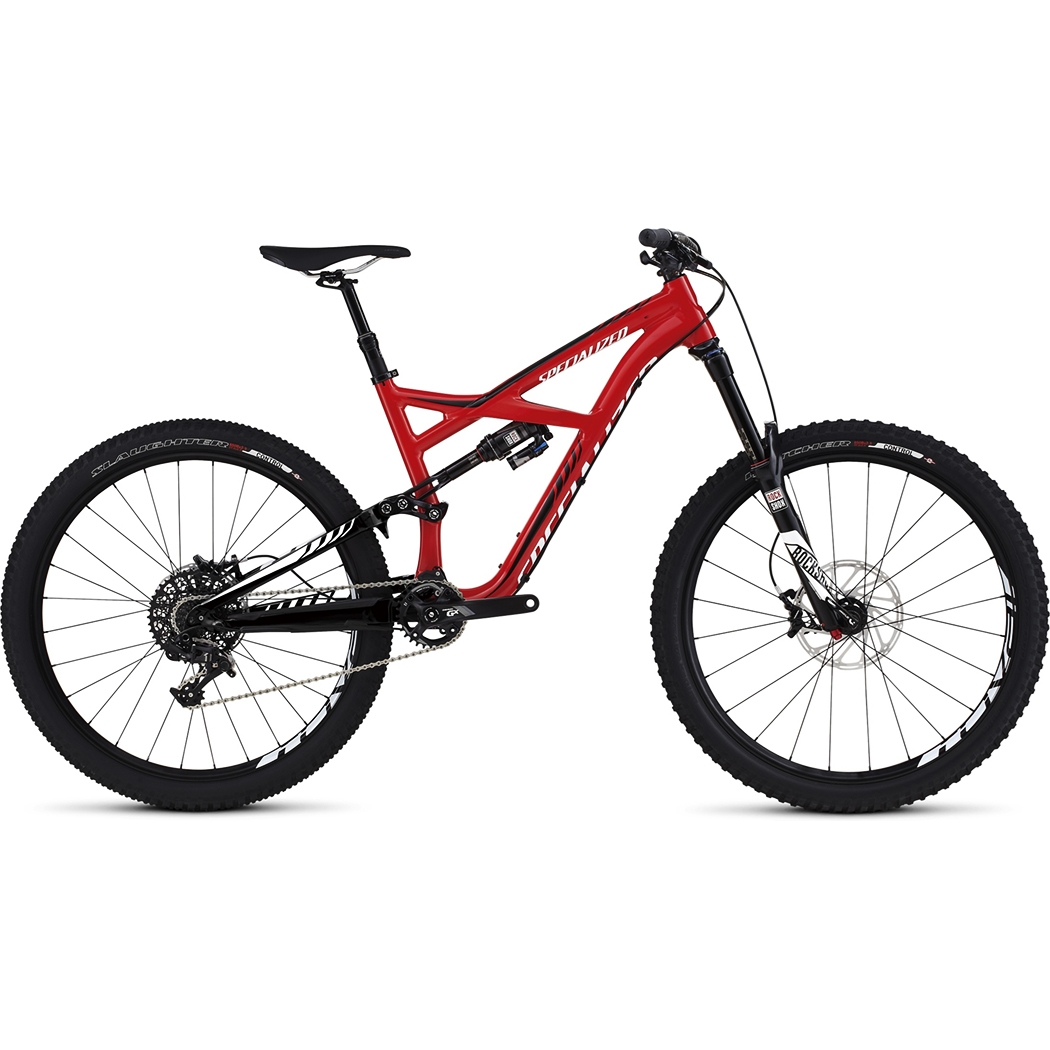

Specialized Enduro FSR Elite 650B Gloss Red/Black/White
Artikelnummer.
93616-4302 (S)
Övriga art.nr.
93616-4303 (M)
93616-4304 (L)
Cykelbeskrivning
If you're looking for a bike that's agile on big, nasty descents and holds its own on long, arduous climbs, look no further than the Enduro FSR Elite 650b. Its frame features a M5 aluminum construction that's built off our 650b Geometry. Along these lines, the frame gets a roomy top tube, the shortest possible chainstays, a low bottom bracket, and a slacker head tube than what's found on the 29—all to perfectly blend climbing and descending characteristics together. This Enduro also includes plenty of travel, 160mm at the front and 165mm at the rear, in order to increase control over small bumps and big hits alike. At the build kit, we spec'd for reliable performance, including a RockShox Pike RC 29 fork and a custom Monarch Plus for a supremely plush suspension setup, a one-by SRAM X1 drivetrain with a wide range of gears, and a Command Post IRcc dropper with up to 10 middle positions. Altogether, this Enduro is agile, eager, and ready to dominate the entire mountain.
>M5 alloy has been paired with our 650b Geometry to form a frame that's quite literally capable of everything. The material featured here is light, stiff, and durable, while the geometry and smaller wheel size lend themselves perfectly to playful riding styles and jumps, speeding up climbs, and pinning it through corners. You'll also find an ISCG '05 mount for chain guides, internal Command Post IR routing, and sealed cartridge bearing pivots to reduce maintenance over time.
>Custom RockShox Monarch Plus rear shock features AUTOSAG for easy set up, 165mm of travel, and RockShox's Rapid Recovery and Solo Air technologies for twice the rebound range—all in a lightweight package.
>RockShox Pike RC 650b fork features a 15mm Maxle Ultimate thru-axle, compression adjust, and 160mm of plush air-sprung travel to take on big hits and bumpy terrain with supreme confidence and efficiency.
>Roval 650b alloy wheels were selected with the rigors of all mountain and enduro riding in mind. They're constructed with a 29mm internal width and 15mm thru-axle at the front to make them tough, fast, and agile over terrain.
>Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
M5 alloy, 650b geometry, tapered head tube, PF30 BB, ISCG '05 mount, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 165mm travel.
Stötdämpare bak
Custom RockShox Monarch Plus, AUTOSAG, 3-position compression adjust, rebound adjust, 215.9x57.2mm.
Gaffel eller ev. stötdämpare fram
RockShox Pike RC 650b, Solo Air spring, 160mm travel, compression adjust, rebound adjust, tapered steerer, 42mm offset, 15mm Maxle Ultimate thru-axle.
Styrlager
1-1/8" upper, 1-1/2" lower, threadless, Campy style, cartridge bearings.
Styrstolpe eller ev. styrstam
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise.
Styre
Specialized Demo, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 780mm, 31.8mm.
Handtag
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness.
Bromsar fram
SRAM Guide R, metallic pads, 200mm Centerline rotor.
Bromsar bak
SRAM Guide R, metallic pads, 180mm Centerline rotor.
Bromshandtag
SRAM Guide R, alloy lever, reach adjust.
Växelförare bak
SRAM X1, 11-speed, alloy cage.
Växelreglage
SRAM X1, 11-speed, trigger.
Kassett eller ev. drev bak
SRAM XG-1175, 11-speed, 10-42t.
Kedja
KMC X11L, 11-speed, w/ reusable MissingLink.
Vevparti
SRAM GX-1000, 11-speed, PF30, 30T X-Sync ring, 94mm BCD spider.
Vevlager
SRAM, PF30, OS press-in bearings, sealed cartridge.
Pedaler
Nylon, CEN std., w/ toe clips.
Fälgar
Roval 650b, alloy, 29mm inner width, 24/28h.
Nav fram
Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h.
Nav bak
Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 28h.
Ekrar
DT Swiss Industry, stainless.
Däck fram
Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3".
Däck bak
Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3".
Innerslang
Standard, Presta valve.
Sadel
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm.
Sadelstolpe
Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm.
Sadelstolpsklämma
Specialized, 7050 alloy, single bolt, 34.9mm.
Ramgeometri
Frame size
S M L.
Stack
588mm 597mm 606mm.
Reach
386mm 421mm 443mm.
Head tube length
110mm 120mm 130mm.
Head tube angle
65.5° 65.5° 65.5°.
Bottom bracket height
351mm 351mm 351mm.
Bottom bracket drop
2mm 2mm 2mm.
Trail
115mm 115mm 115mm.
Fork length full
552mm 552mm 552mm.
Fork rake offset
42mm 42mm 42mm.
Front to center
699mm 738mm 764mm.
Chain stay length
422mm 422mm 422mm.
Wheel base
1121mm 1160mm 1186mm.
Seat tube length horizontal
547mm 584mm 609mm.
Standover height
766mm 776mm 780mm.
Seat tube length
393mm 425mm 463mm.
Seat tube angle
74.7° 74.7° 74.7°.
Handlebar width
780mm 780mm 780mm.
Stem length
45mm 45mm 60mm.
Crank length
170mm 175mm 175mm.
Seatpost length
380mm 430mm 430mm.
