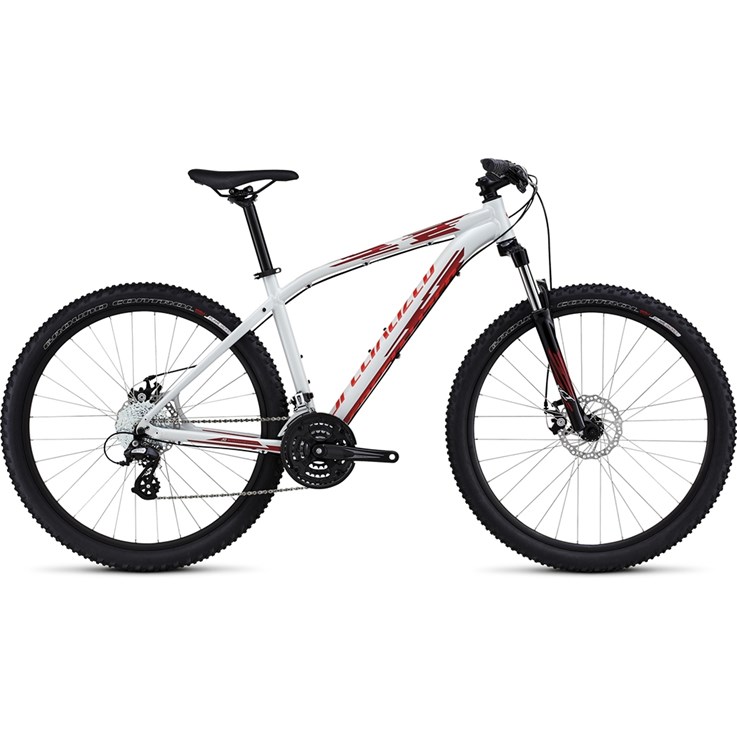

Specialized Pitch 650B Gloss Dirty White/Candy Red/Rocket

Cykelbeskrivning

You've thought about it—probably even got out on the dirt or gravel a few times— and now's the time to pull the trigger on a fully-fledged mountain bike. Well, you're in the right place. The Pitch 650b features everything you need to start getting off the road and out on some trails. It features a light aluminum frame that's equal parts performance-driven and durable, while all of the components have been mindfully selected for their capability and long term strength. And when you factor in a geometry that's going to leave you feeling confident and ready to get after it, it's safe to say that the Pitch 650b is the perfect starting point for your life of playing in the dirt.

>The frame is constructed from lightweight A1 Premium Aluminum in order to provide a compliant, durable platform to support our acclaimed Sport Trail 650b Geometry. Combined, you get a bike that's extremely versatile, making it equally capable on the climbs and descents.
>SR Suntour XCT 650b fork features a coil spring that delivers 80/100mm (size-specific) of trail absorbing travel.
>650b alloy rims have been laced to our Stout hubs to form wheels that allow you mow over everything in sight, climb gracefully, and get to the bottom of the trail eager for more.
>With reliable traction, puncture-resistance, and sheer speed over the dirt, our 650bx2.1" Ground Control Sport tires will keep you rolling with confidence over almost any terrain.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger.

Gaffel eller ev. stötdämpare fram

SR Suntour XCT 650b, coil/MCU spring, S: 80mm travel, M/L/XL: 100mm travel, preload adjust, 1-1/8" steerer, alloy lowers, Hi-Ten 28mm stanchions, disc mount.

Styrlager

1-1/8" upper/lower, ZeroStack 44, steel cups, loose ball bearings.

Styrstolpe eller ev. styrstam

Specialized, 3D forged alloy, 4-bolt, 6-degree rise.

Styre

Specialized Stout, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm.

Handtag

Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end.

Bromsar fram

Tektro Aries, mechanical disc, organic pads.

Bromsar bak

Tektro Aries, mechanical disc, organic pads.

Växelförare fram

Shimano Altus, high mount, bottom swing, dual pull.

Växelförare bak

Shimano Altus, 8-speed.

Växelreglage

Shimano ST-EF51, w/ integrated brake lever.

Kassett eller ev. drev bak

Sunrace, 8-speed, 11-34t.

Kedja

KMC X8, 8-speed, w/ reusable MissingLink.

Vevparti

Samox, forged alloy, 3 pc., 8-speed, 42/32/22T, w/ chainguard.

Vevlager

Square taper, cartridge bearings.

Pedaler

Plastic, 9/16", w/ reflectors.

Fälgar

650b, disc, alloy, double-wall, pin joint, 25mm inner width, 32h.

Nav fram

Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h.

Nav bak

Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h.

Ekrar

Stainless, 14g.

Däck fram

Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1".

Däck bak

Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1".

Innerslang

Standard, Schrader valve.

Sadel

Body Geometry mountain, thick padding, steel rails, 143mm.

Sadelstolpe

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware.

Sadelstolpsklämma

Alloy, nylon/glass fiber washer, QR, 34.9mm.

Ramgeometri

Frame size

XS S M L XL.

Stack

580mm 580mm 580mm 580mm 599mm.

Reach

370mm 391mm 410mm 429mm 449mm.

Head tube length

100mm 100mm 100mm 100mm 120mm.

Head tube angle

70.5° 70.5° 70.5° 70.5° 70.5°.

Bottom bracket height

301mm 301mm 301mm 301mm 301mm.

Bottom bracket drop

48mm 48mm 48mm 48mm 48mm.

Trail

79mm 79mm 79mm 79mm 79mm.

Fork length full

475mm 475mm 475mm 475mm 475mm.

Fork rake offset

42mm 42mm 42mm 42mm 42mm.

Front to center

605mm 626mm 645mm 664mm 690mm.

Chain stay length

425mm 425mm 425mm 425mm 425mm.

Wheel base

1025mm 1046mm 1065mm 1084mm 1110mm.

Seat tube length horizontal

536mm 557mm 587mm 606mm 632mm.

Standover height

694mm 733mm 780mm 792mm 835mm.

Seat tube length

330mm 394mm 444mm 460mm 510mm.

Seat tube angle

74° 74° 73° 73° 73°.

Handlebar width

700mm 700mm 720mm 720mm 720mm.

Stem length

60mm 60mm 70mm 80mm 90mm.

Crank length

170mm 170mm 175mm 175mm 175mm.

Seatpost length

300mm 350mm 350mm 400mm 400mm.
