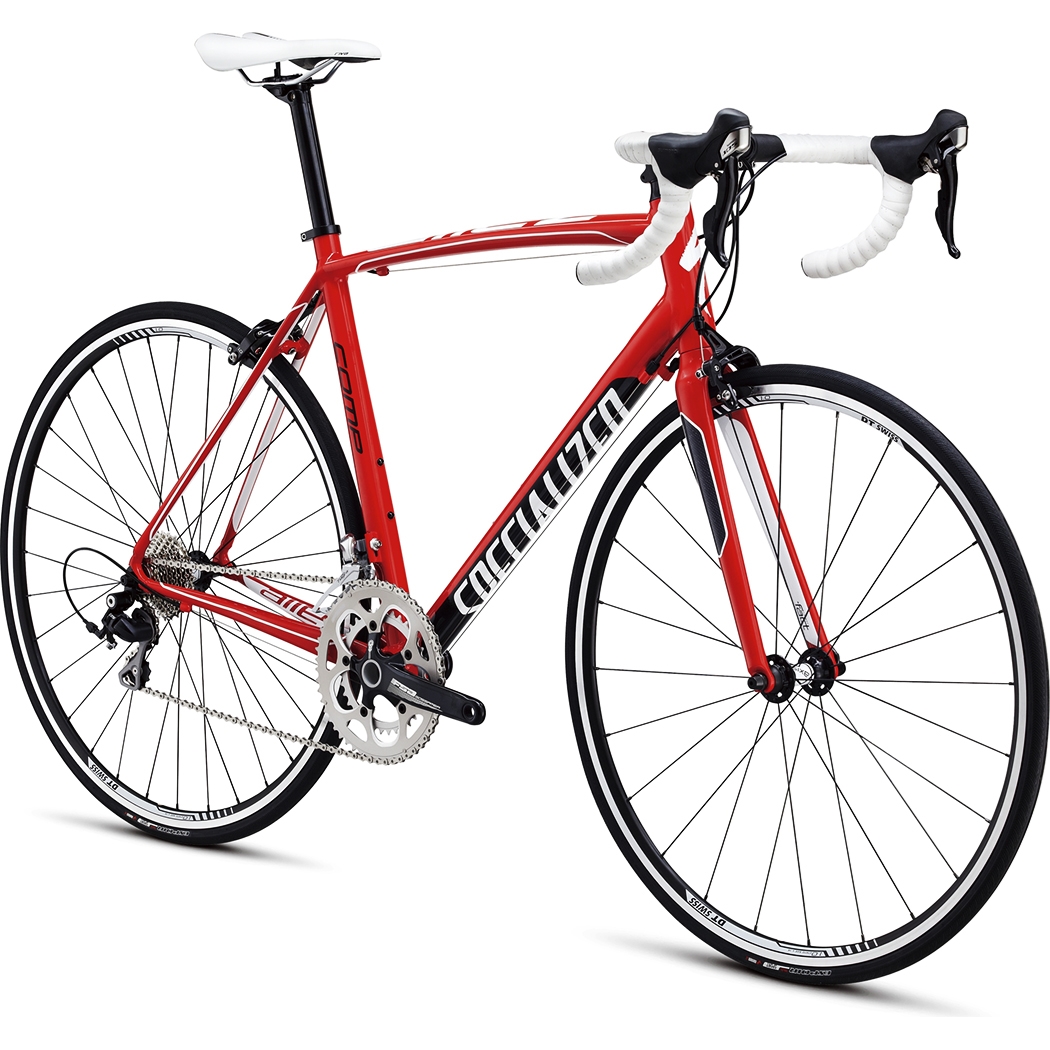

Specialized Allez Comp Dubbel Kompakt Mid Röd/Vit/Svart

Cykelbeskrivning

Stiff, light, race-inspired Allez Comp offers great acceleration and handling—perfect for aspiring racers, or as a winter training bike for more accomplished veterans. 10-speed Shimano 105 group and upgraded wheels give this bike race-ready performance.

>Race-inspired, smooth-welded, fully-manipulated E5 alloy frame is light, stiff, and fast with our race-tuned geometry for precise handling.
>Specialized FACT carbon fork provides precise steering through the tightest turns and ultra light weight.
>DT Axis 1.0 wheelset is significantly lighter than comparable-level wheelsets. These tough wheels roll smooth and fast.
>FSA Gossamer BB30 alloy crankset with mid-compact gearing is stiff and light for efficiency over any terrain.
>Tarmac Comp oversized aluminum bar is stiff and light for serious performance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized E5 alloy, fully manipulated tubing with smooth welds, 1-1/8" lower bearing, OSBB

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Specialized FACT carbon, aluminum steerer and crown, 1-1/8"

Styrlager

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers

Styrstolpe eller ev. styrstam

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm

Styre

Specialized Comp, 6061 alloy, shallow bend

Styrlinda

Specialized S-Wrap w/ bar shapers

Bromsar fram

Axis DC 1.0

Bromsar bak

Axis DC 1.0

Bromshandtag

Växelförare fram

Shimano Tiagra

Växelförare bak

Shimano 105

Växelreglage

Shimano 105 STI

Kassett eller ev. drev bak

Shimano Tiagra 10-speed, 12-28t

Kedja

KMC X10 CP

Vevparti

FSA Gossamer BB30

Vevparti utväxling

52/36

Vevlager

OS integrated

Pedaler

Nylon flat test ride, loose-ball, w/ reflectors

Hjul fram

DT Axis 1.0

Hjul bak

DT Axis 1.0

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x23c

Däck bak

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x23c

Innerslang

Standard presta valve

Sadel

Body Geometry Riva Road Gel, Cr-Mo rails, 143mm

Sadelstolpe

Specialized Sport alloy, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm NOTESChainstay protector, derailleur hanger, clear coat, owner's manual

Ramgeometri

Frame size

49 52 54 56 58 61 64.

Seat tube length bottom bracket center to top

460mm 490mm 510mm 530mm 550mm 580mm 620mm.

Top tube length horizontal

518mm 537mm 548mm 565mm 582mm 600mm 605mm.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm 410mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5° 72.5°.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74° 74°.

Fork rake

45mm 45mm 45mm 43mm 43mm 43mm 43mm.

Trail

64.5mm 60mm 60mm 56.5mm 56.5mm 53mm 53mm.

Front to center

576mm 576mm 583mm 593mm 607mm 615mm 618mm.

Wheel base

970mm 970mm 978mm 988mm 1005mm 1015mm 1019mm.

Stand over height

752mm 777mm 798mm 816mm 836mm 863mm 892mm.

Head tube length

100mm 120mm 145mm 170mm 205mm 230mm 250mm.

Stack

505mm 527mm 548mm 574mm 606mm 632mm 651mm.

Reach

385mm 385mm 385mm 392mm 397mm 402mm 401mm.

Handle bar width

400mm 420mm 420mm 420mm 440mm 440mm 440mm.

Stem length

75mm 90mm 100mm 100mm 110mm 110mm 120mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm 175mm.

Seat post length

300mm 300mm 350mm 350mm 350mm 350mm 350mm.
