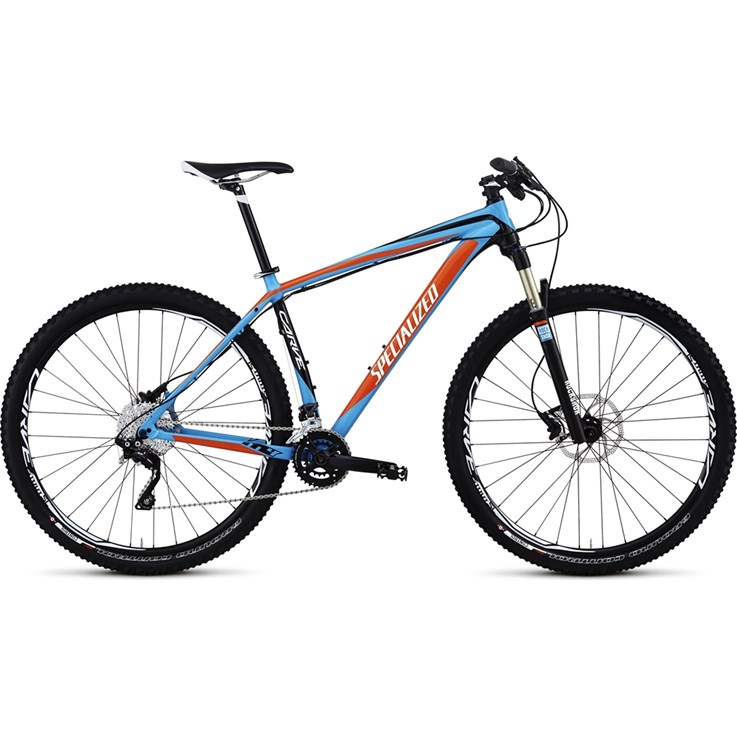

Specialized Carve Expert 29 Blå/Orange/Svart

Cykelbeskrivning

Equipped with a 100mm-travel RockShox Reba RL 29 fork, the aluminum Carve Expert 29 is ready for race day or a quick loop after work. Featuring Avid hydraulic disc brakes, Shimano 2x10 drivetrain, and versatile Specialized Ground Control 2.1-inch tires, the Carve Expert provides race-day performance that rips on yourfavorite local trail.

>Fully butted, smooth-welded M4SL alloy frame is superlight, stiff, and efficient, with 29er XC geometry, integrated headset, tapered head tube for front-end stiffness, plus bridge-less seatstays for compliance over bumps.
>100mm-travel RockShox Reba RL 29 fork features a new Solo Air spring, remote Push-Loc, tapered steerer tube and externally adjustable rebound for plush and lightweight trail performance.
>Light and stiff, double-walled alloy rims for added stiffness; front hub has cartridge bearings and oversized dropout interface for front-end rigidity.
>Custom SRAM 10-speed XC double-ring crankset with 29er gearing and GXP bottom bracket offers lightweight and durable performance.
>Avid Elixir 3 hydraulic disc brakes use 180mm front rotor for increased leverage on 29" wheels, while 160mm rear rotor keeps weight low.
>Shimano Deore XT Shadow 10-speed rear derailleur for lightweight, pro-level shifting, and improved clearance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized M4SL Aluminum, 29er frame w/ XC geometry, fully butted w/ smooth welding, tapered headtube and seat tube, forged post mount 160mm disc dropouts, alloy replaceable der. hanger

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

RockShox Reba RL 29", TurnKey damping w/ Push-Loc remote lock out, Solo Air spring, tapered alloy steerer, 32mm alloy stanchions, external rebound adj., 100mm travel

Styrlager

Integrated 1-1/8" upper and 1-1/2" lower threadless, Campy-style, full cartridge bearings

Styrstolpe eller ev. styrstam

Specialized 3D forged 6061 alloy, 4 bolt clamp, 7º rise, 31.8mm

Styre

Flat bar, 6061 double butted alloy, 700mm wide, 10º backsweep, 4º upsweep, 31.8mm

Handtag

Specialized Body Geometry XCT, Kraton rubber w/ gel, closed end, 132mm, lock-on

Bromsar fram

Avid Elixir 3R, hydraulic disc, G2 CleanSweep 180mm rotor

Bromsar bak

Avid Elixir 3R, hydraulic disc, G2 CleanSweep 160mm rotor

Bromshandtag

Avid Elixir 3R, hydraulic lever, tool-less reach adjust

Växelförare fram

SRAM X7, 10-speed 2X10, 34.9mm clamp

Växelförare bak

Shimano Deore XT Shadow, 10-Speed, GS cage

Växelreglage

Shimano Deore, 10-speed Rapidfire plus, SL type

Kassett eller ev. drev bak

SRAM PG 1030, 10-speed cassette, 11-36

Kedja

KMC X-10, 10-speed w/ reusable Missing Link

Vevparti

Vevparti utväxling

36/22, aluminum

Vevlager

SRAM GXP BB for 2pc, 73mm shell

Pedaler

Alloy 1pc. body and cage, w/ reflectors, 9/16"

Fälgar

Carve SL Disc, 29", alloy double-wall, sleeve joint, 26mm, 32h

Nav fram

Specialized MTB disc hub, alloy, Hi Lo flange, cartridge bearings, alloy axle, QR, 32h

Nav bak

Specialized MTB disc hub, alloy, Hi Lo flange, cartridge bearings, steel axle, steel cassette body, QR, 32h

Ekrar

Stainless, 2.0mm (14g)

Däck fram

Specialized Ground Control, 29x2.1", Kevlar bead, 60TPI

Däck bak

Specialized Ground Control, 29x2.1", Kevlar bead, 60TPI

Innerslang

Presta valve

Sadel

Specialized Body Geometry Carve SL, hollow Cr-Mo rails, 143mm width

Sadelstolpe

Specialized 2 bolt head, forged alloy, 12.5mm offset, micro adjust, 27.2mm, 350mm or 400mm

Sadelstolpsklämma

31.8mm, forged alloy QR, brass washer NOTESchainstay protector, reflectors, clear coat, owners manual

Ramgeometri

Frame size

15.5 17.5 19.0 21.0 23.0.

Seat tube length center to top

394mm 445mm 483mm 533mm 584mm.

Top tube length horizontal

576mm 603mm 625mm 650mm 670mm.

Top tube length actual

562mm 574mm 594mm 620mm 645mm.

Chainstay length

442mm 442mm 442mm 442mm 442mm.

Bottom bracket drop

63.5mm 63.5mm 63.5mm 63.5mm 63.5mm.

Bottom bracket height

308mm 308mm 308mm 308mm 308mm.

Head tube length

110mm 100mm 115mm 130mm 150mm.

Head tube angle

71.5° 71.5° 71.5° 71.5° 71.5°.

Seat tube angle actual

71° 71° 71° 71° 71°.

Seat tube angle effective

74° 73° 73° 73° 73°.

Wheel base

1070mm 1085mm 1108mm 1133mm 1154mm.

Stack

615mm 625mm 639mm 653mm 672mm.

Reach

400mm 412mm 430mm 450mm 464mm.

Standover height

760mm 796mm 825mm 859mm 896mm.

Handlebar width

700mm 700mm 700mm 700mm 700mm.

Stem length

60mm 75mm 75mm 90mm 90mm.

Crank length

170mm 175mm 175mm 175mm 175mm.

Seatpost length

350mm 350mm 400mm 400mm 400mm.
