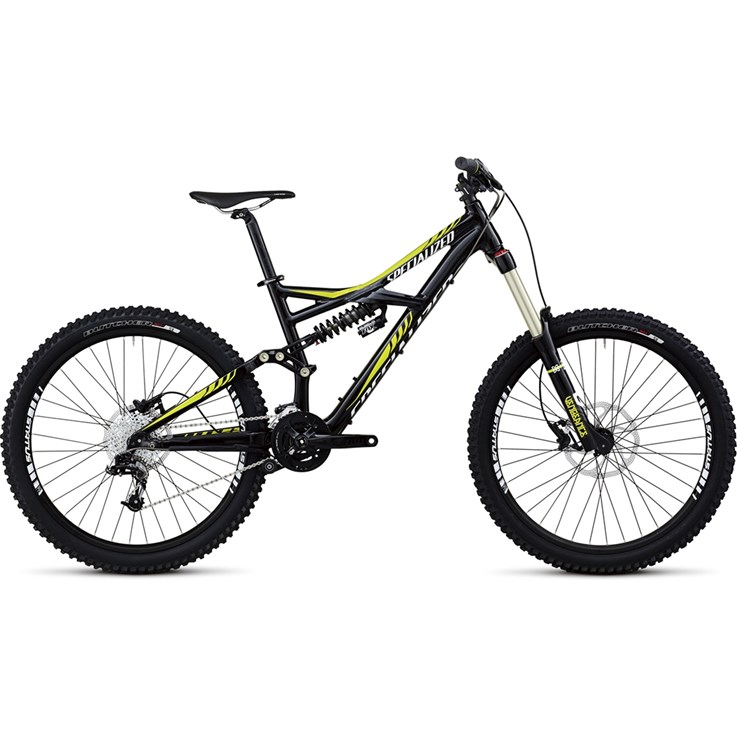

Specialized Enduro FSR Evo Svart/Limegrön Grön

Cykelbeskrivning

The 165mm-travel M5 aluminum Enduro EVO is an all-mountain machine catered to aggressive descending. Equipped with a Fox VAN R coil shock, X-Fusion Vengeance R coil-sprung fork, SRAM 2x10 drivetrain and custom Avid Elixir 3 SL hydraulic disc brakes.

>All-new, fully manipulated M5 alloy FSR frame with ORE tubing is the centerpiece of this incredibly versatile 180mm-travel design; featuring sealed cartridge bearing pivots, 142mm + dropouts, ISCG '05 mount, and replaceable derailleur hanger.
>Custom FOX Van R coil shock with adjustable rebound works with the bike's FSR design to keep the rear wheel planted for maximum traction.
>X-Fusion Vengeance coil-sprung fork with tapered alloy steerer tube, 170mm of travel, adjustable rebound control and 20mm thru-axle makes a plush fork that tracks through technical terrain.
>Specialized Butcher SX 2.3" dual-compound tires for premium traction on challenging terrain.
>Custom SRAM S-1250 AM double crankset with PF30 spindle and shiftguide works with the SRAM 10-speed cassette for high-performance shifting and acceleration.
>The 750mm-wide Specialized DH low-rise handlebar is super wide to control the toughest conditions.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>Avid Elixir 3 hydraulic disc brakes with a 200mm front and 180mm rear rotors for reliable stopping power.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 aluminum, EVO geometry, fully manipulated frame w/ ORE TT/ DT, tapered HT, PF30 BB, ISCG 05 mount, 142+ dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 180mm travel

Stötdämpare bak

FOX VAN R, coil spring, rebound adj., S: 450, M: 500, L: 550

Gaffel eller ev. stötdämpare fram

X-Fusion Vengeance R, coil spring, tapered alloy steerer, reb adj., 20mm thru-axle, 170mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized P.Series MTB, forged alloy, 4-bolt, 40mm length, 31.8mm

Styre

Specialized DH low-rise bar, 6061 alloy, 750mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Custom Avid Elixir 3 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor, 200mm

Bromsar bak

Custom Avid Elixir 3 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor, 180mm

Bromshandtag

Avid Elixir 3, hydraulic disc, tool-less reach adj.

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X9 Type 2, 10-speed, mid cage

Växelreglage

SRAM X7, 10-speed, trigger, w/MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36

Kedja

KMC X10, nickel plate, reusable Missing Link

Vevparti

Custom SRAM S-1250, 10-speed AM double, PF30 spindle w/ shift guard, S: 170mm, Others: 175mm

Vevparti utväxling

36/24

Vevlager

SRAM PF30, OS press-in bearing, sealed cartridge

Pedaler

Resin Test Ride Pedals with toe clips, CEN std.

Fälgar

P-Disc, 32mm wide, 36h

Nav fram

Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 15mm thru-axle, 36h

Nav bak

Specialized Hi Lo disc, 4x-sealed cartridge bearing, 12mm thru-axle, 36h

Ekrar

Stainless, 14g

Däck fram

Specialized Butcher SX, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"

Däck bak

Specialized Butcher SX, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"

Innerslang

Ultralight presta

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm

Sadelstolpsklämma

34.9mm clamp, 7050 hard anodized alloy collar w/ QR, black NOTES

Ramgeometri

Frame size

S M L.

Seat tube length center to top

396mm 430mm 458mm.

Top tube length horizontal

568mm 590mm 623mm.

Top tube length actual

535mm 556mm 585mm.

Chainstay length

419mm 419mm 419mm.

Bottom bracket height

350mm 350mm 350mm.

Seat tube angle actual

69.5° 69.5° 69.5°.

Seat tube angle effective

75° 75° 75°.

Head tube angle

65° 65° 65°.

Wheel base

1153mm 1177mm 1211mm.

Standover height

740mm 747mm 756mm.

Head tube height

110mm 120mm 130mm.

Handlebar width

750mm 750mm 750mm.

Stem length

40mm 40mm 40mm.

Crank length

170mm 175mm 175mm.

Seatpost length

380mm 425mm 425mm.

Stack

589mm 598mm 607mm.

Reach

410mm 430mm 460mm.
