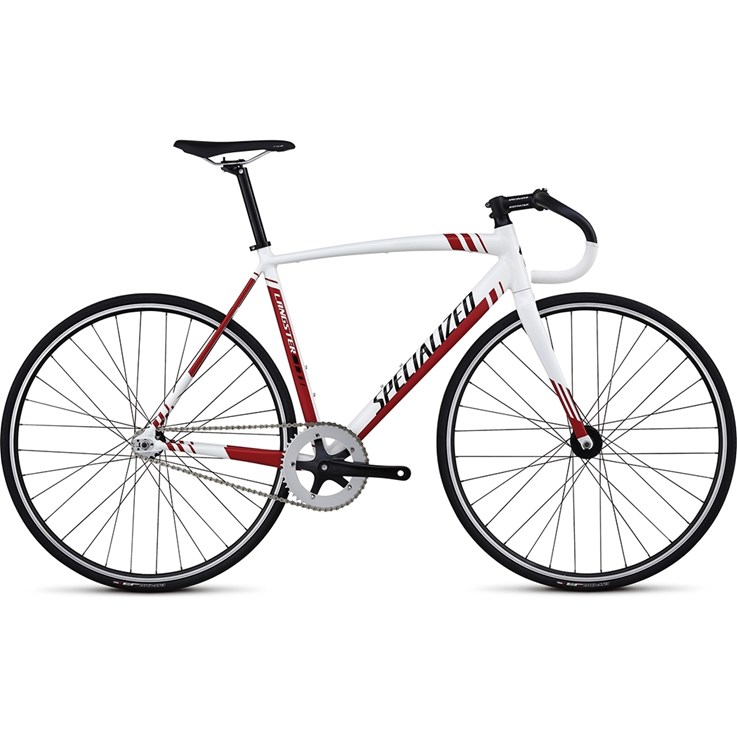

Specialized Langster Vit/Svart/Röd

Cykelbeskrivning

With a sleek, minimalist aesthetic, and an A1 Premium Aluminum frame designed for raw speed, the Langster can tear up the track or tear through the city; with a two-sided, fix/fix hub for easy gearing change.

>A1 Premium Aluminum compact frame with integrated headset, fully manipulated tubing, and track geo excels in the city or at the velodrome.
>Specialized FACT carbon fork provides precise steering through the tightest turns and ultra light weight.
>Track-specific, square taper alloy crankarm for acceleration and power. Built for the velodrome.
>Adjustable four-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning.
>Oversized aluminum handlebar is stiff for serious performance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized A1 Premium Aluminum, fully manipulated tubing, compact design w/ track geo, integrated headset

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Specialized FACT carbon, carbon legs, aluminum crown and steerer

Styrlager

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers

Styrstolpe eller ev. styrstam

Specialized Elite-Set, 3D-forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

Styre

Specialized Pista, alloy, deep track drop

Styrlinda

Bromsar fram

Tektro dual-pivot brake

Bromsar bak

Tektro dual-pivot brake

Bromshandtag

Tektro forged alloy, ergo design

Växelförare fram

Växelförare bak

Växelreglage

Kassett eller ev. drev bak

Shimano MX-30 freewheel, singlespeed, 16T

Kedja

KMC Z-510HX singlespeed

Vevparti

BCD 144, alloy track

Vevparti utväxling

48T

Vevlager

Cartridge bearing, square spindle, w/ crank stop right side, capless bolts

Pedaler

Nylon flat test ride, loose ball, w/ reflectors

Hjul fram

Hjul bak

Fälgar

Alex Classic rim, double-wall alloy

Nav fram

Track, bolt-on w/ track axle nuts, 32h

Nav bak

Track rear, fixed/free, bolt-on w/ track axle nut, 1 lockring, 32H

Ekrar

Stainless, 14g

Däck fram

Specialized Espoir Sport, double BlackBelt, 60TPI, wire bead, 700x23c

Däck bak

Specialized Espoir Sport, double BlackBelt, 60TPI, wire bead, 700x23c

Innerslang

Lightweight, presta

Sadel

Body Geometry Riva Road, Cr-Mo rails, 155mm

Sadelstolpe

Specialized Sport, alloy, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm NOTESChainstay protector, clear coat, owners manual

Ramgeometri

Frame size

46.0 49.0 52.0 54.0 56.0 58.0 61.0.

Seat tube length bottom bracket center to top

410mm 440mm 480mm 500mm 520mm 540mm 570mm.

Top tube length horizontal

501mm 512mm 529mm 539mm 558mm 569mm 585mm.

Bottom bracket drop

55mm 55mm 52.5mm 52.5mm 50mm 50mm 47.5mm.

Chain stay length

396mm 396mm 395mm 395mm 394mm 394mm 393mm.

Seat tube angle

74° 74° 74° 74° 74° 74° 74°.

Head tube angle

71° 72° 73° 73° 74° 74° 74°.

Fork rake

45mm 45mm 45mm 45mm 45mm 45mm 45mm.

Trail

63mm 59mm 58mm 58mm 58mm 58mm 58mm.

Front to center

565mm 568mm 569mm 580mm 584mm 596mm 612mm.

Wheel base

955mm 957mm 959mm 969mm 973mm 985mm 1000mm.

Stand over height

713mm 733mm 763mm 780mm 802mm 821mm 846mm.

Head tube length

95mm 100mm 115mm 130mm 150mm 170mm 190mm.

Handle bar width

400mm 400mm 400mm 400mm 420mm 420mm 420mm.

Stem length

75mm 90mm 100mm 100mm 110mm 110mm 110mm.

Crank length

165mm 165mm 165mm 167.5mm 170mm 170mm 172.5mm.

Seat post length

300mm 300mm 350mm 350mm 350mm 350mm 350mm.

Reach

362mm 372mm 384mm 390mm 403mm 409mm 420mm.

Stack

478mm 487mm 504mm 518mm 540mm 559mm 576mm.
