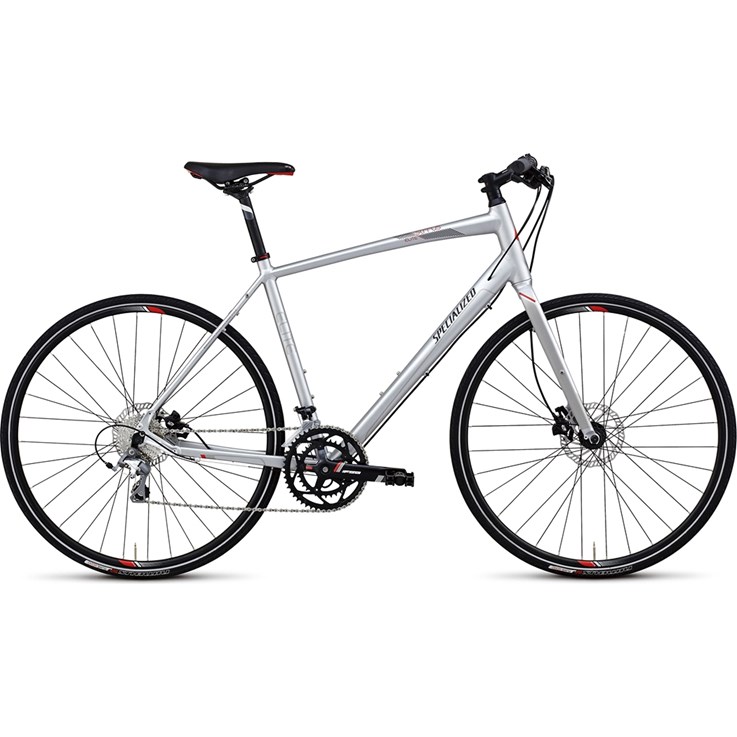

Specialized Sirrus Elite Skivbroms Silver/Svart/Röd

Cykelbeskrivning

Combining the heart of the world's best road bikes with a flat-bar, urban-friendly form, Sirrus Elite Disc redefines the notion of versatility. Hydraulic disc brakes add confident braking in any weather with any load, plus the lightweight carbon fork and 2x9 Shimano gearing means lighter, smoother, and greater efficiency over varied terrain.

>Super light E5 fully-manipulated alloy disc frame, plus alloy fork with Cr-Mo steerer, built for high speed, low-fuss, and great versatility, with tapered head tube, internal routing, low-mount disc dropout, and rack/fender mounts.
>Strong, reliable Tektro Draco hydraulic disc brakes for sure stopping and control in any weather with any load.
>Strong and light Sirrus alloy, double-wall, disc-specific rims.
>Flak Jacket protection and a grooved tread make the 28c Specialized Nimbus tires perfect for city or open road use.
>FSA compact 9-speed crank with 50/34 configuration means ample gearing and crisp shifting.
>Body Geometry Targa gel grips lock on and help alleviate hand pain and tingling fingers.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized E5 aluminum with low-mount disc dropout, fully manipulated butted tubing, smooth weld, internal cable routing, tapered/integrated headset, fender/rack eyelets

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Sirrus Disc Fork, A1 Premium Aluminum crown, Cr-Mo steerer

Styrlager

1-1/8" FSA Campy-style, integrated cartridge, 15mm alloy cone spacer

Styrstolpe eller ev. styrstam

Specialized 3D forged alloy, 10-degreeree rise, 31.8mm clamp

Styre

Specialized alloy flat bar, 31.8mm, 6-degreeree backsweep

Styrlinda

Body Geometry Targa, lock-on

Bromsar fram

Tektro Draco hydraulic disc

Bromsar bak

Tektro Draco hydraulic disc

Bromshandtag

Tektro Draco hydraulic disc

Växelförare fram

Shimano FDM-3500, 9-speed, top-swing, dual-pull

Växelförare bak

Shimano Tiagra

Växelreglage

Shimano Sora, Rapidfire

Kassett eller ev. drev bak

Shimano HG-50 9-speed, 11-30

Kedja

KMC X-9, reusable Missing Link

Vevparti

FSA Tempo Compact 9-speed

Vevparti utväxling

50/34, alloy outer ring

Vevlager

Cartridge bearing, square spindle w/ crank stop right side, capless bolts

Pedaler

Sirrus nylon body, 1.5mm varus angle, symmetric alloy cage, toe clip capable

Hjul fram

Hjul bak

Fälgar

Alloy double-wall, disc, 32 holes

Nav fram

Disc hub, loose ball, Hi Lo flange, machined disc side, dual lock nuts w/ 19mm contact, QR

Nav bak

Disc hub, loose ball, Hi Lo flange, machined disc mount, double-sealed, ground race, dual lock nuts w/ 19mm contact side, QR

Ekrar

Stainless, 14g

Däck fram

Specialized Nimbus w/ Flak Jacket, 26TPI, reflective sidewall, 700x28c

Däck bak

Specialized Nimbus w/ Flak Jacket, 26TPI, reflective sidewall, 700x28c

Innerslang

Specialized Presta Valve

Sadel

Body Geometry Targa Sport, 143mm

Sadelstolpe

Alloy, 2-bolt head, 27.2mm

Sadelstolpsklämma

Alloy clamp, 31.8mm NOTESn/a

Ramgeometri

Frame size

XS SM MD LG XL.

Seat tube length bottom bracket center to top

395mm 440mm 485mm 530mm 570mm.

Top tube length horizontal

555mm 570mm 580mm 600mm 620mm.

Bottom bracket drop

70mm 70mm 70mm 70mm 70mm.

Chain stay length

445mm 445mm 445mm 445mm 445mm.

Seat tube angle

73.5° 73.25° 73.5° 73° 73°.

Head tube angle

70.5° 71° 71.5° 72° 72°.

Fork rake

51mm 51mm 51mm 51mm 51mm.

Trail

70mm 67mm 63mm 60mm 60mm.

Front to center

621mm 629mm 637mm 647mm 667mm.

Wheel base

1056mm 1065mm 1073mm 1082mm 1103mm.

Stand over height

716mm 750mm 786mm 821mm 859mm.

Head tube length

130mm 150mm 165mm 190mm 225mm.

Handle bar width

580mm 580mm 580mm 580mm 580mm.

Stem length

75mm 90mm 90mm 100mm 100mm.

Crank length

170mm 170mm 175mm 175mm 175mm.

Seat post length

300mm 350mm 350mm 350mm 350mm.
