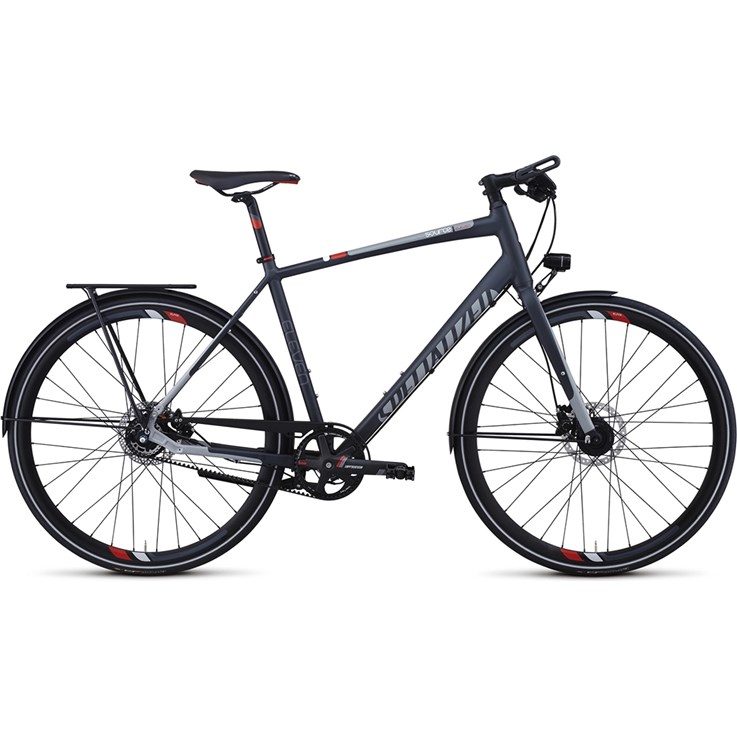

Specialized Source 11 Grå/Röd

Cykelbeskrivning

A true multi-tasker for anything from commuting to a loaded weekend camping trek down the coast, the Source Eleven does it all anytime, anywhere. Equipped with disc brakes and integrated lights, rack, and fenders, plus 11-speed Shimano Alfine internal gearing with belt drive for the ultimate in low-maintenance efficiency and ultimate reliability.

>All-new, super light E5 fully-manipulated alloy frame is built for high speed, low-fuss, and great versatility, with tapered head tube, internal routing, rack/fender mounts, and wide tire clearance; Plus open rear triangle for belt drive.
>Sturdy alloy fork with Cr-Mo steerer and fender/rack mounts and internal light cable routing for the ultimate multi-purpose bike.
>Shimano Alfine 11-speed internal hub is the epitome of quality, versatility, and simplicity.
>Body Geometry Targa gel grips lock on and help alleviate hand pain and tingling fingers. Integrated bar ends for changing hand position included.
>Strong, reliable Shimano dual-piston hydraulic disc brakes for sure stopping and control in any weather with any load.
>New Gates Centerline 24t sprocket for Shimano Alfine 11-speed belt drive with 55T chainring.
>Supernova E3 Pro headlight supplies over 300 lumens of light, plus a minimal but superbright taillight to keep you safe on the road anytime, both powered with a on/off switchable Supernova Infinity 8 hubdynamo.
>Supernova Infinity 8 hub-dynamo is superlight and can be switched off for a drag free option.
>Super light and compact Racktime Ultra hollow alloy rack lets you carry supplies without adding a lot of bulk; max load 10kg.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized E5 aluminum, fully manipulated tubing, smooth weld, compact design, internal cable routing, integrated headset, fender/rack eyelets, center kickstand plate, eccentric BB adjuster

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets, internal light cable routing

Styrlager

1-1/8" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer with 25mm of spacers

Styrstolpe eller ev. styrstam

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

Styre

Specialized butted alloy flat bar, 6-degree back sweep, 31.8mm

Handtag

Body Geometry Targa, lock on for bar ends

Bromsar fram

Shimano BRM-446 hydraulic disc, dual-piston, 160mm rotor

Bromsar bak

Shimano BRM-446 hydraulic disc, dual-piston, 160mm rotor

Bromshandtag

Shimano BLM-505 hydraulic 3-finger alloy lever

Växelförare fram

Information saknas och/eller medföljer inte

Växelförare bak

Information saknas och/eller medföljer inte

Växelreglage

Shimano Alfine 11 Rapidfire

Kassett eller ev. drev bak

Custom Gates Centerline sprocket for Alfine 11, 26t

Kedja

Gates Centerline belt

Vevparti

Single ring, forged, 130BCD, 170mm length, w/o chainring

Vevparti utväxling

50T Gates Centertrack belt drive chainring

Vevlager

GXP, external bearing

Pedaler

Sirrus pedal, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable

Fälgar

DRX300 Disc, alloy double-wall, sleeved, CNC machined, 32h

Nav fram

Supernova Infinity 8 dynamo hub, Freespin technology, switchable drag, QR

Nav bak

Shimano Alfine 11, 32h

Ekrar

Stainless, 2mm

Däck fram

Specialized Espoir Sport Reflect w/ double BlackBelt, 60 TPI, wire bead, 700x30c

Däck bak

Specialized Espoir Sport Reflect w/ double BlackBelt, 60 TPI, wire bead, 700x30c

Innerslang

Presta Valve

Sadel

Body Geometry Targa Comp, 143mm wide

Sadelstolpe

Alloy, 2-bolt forged head, 27.2mm, 350mm

Sadelstolpsklämma

31.8 clamp ID, superlight forged and machined alloy HEADLIGHTSupernova E3 Pro, w/ multimount TAILLIGHTSupernova E3 tail light, black DYNAMOSupernova Infinity 8 dynamo hub, 32h

Kedja

CASEAluminum for single chainring KICKSTANDSpecialized extra light, aluminum RACKRacktime Ultra, Specialized custom, hollow alloy, max. load 10kg FENDERSSpecialized aluminum, anodized finish, aluminum struts, "hidden" rack mount bracket BIKE LOCK- BELLNuvo aluminum mini bell NOTESOwners manual

Ramgeometri

Frame size

SM MD LG XL.

Seat tube length bottom bracket center to top

440mm 485mm 530mm 570mm.

Top tube length horizontal

570mm 580mm 600mm 620mm.

Bottom bracket drop

70mm 70mm 70mm 70mm.

Chain stay length

450mm 450mm 450mm 450mm.

Seat tube angle

73.25° 73.5° 73° 73°.

Head tube angle

71° 71.5° 72° 72°.

Fork rake

51mm 51mm 51mm 51mm.

Trail

66mm 63mm 60mm 60mm.

Front to center

629mm 637mm 647mm 667mm.

Wheel base

1070mm 1078mm 1087mm 1108mm.

Stand over height

750mm 786mm 821mm 859mm.

Head tube length

150mm 165mm 190mm 225mm.

Handle bar width

580mm 580mm 580mm 580mm.

Stem length

90mm 90mm 100mm 100mm.

Crank length

170mm 175mm 175mm 175mm.

Seat post length

350mm 350mm 350mm 350mm.
