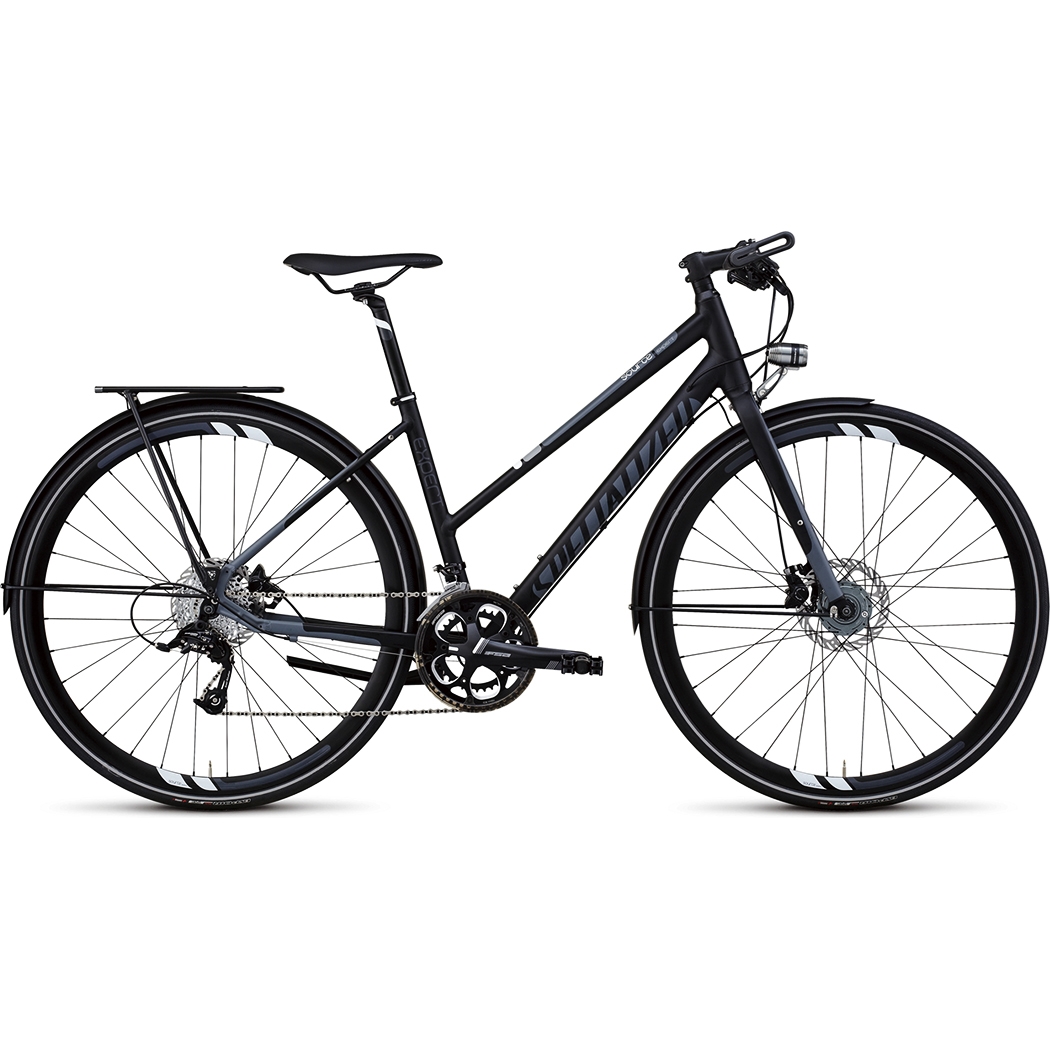

Specialized Source Expert Skivbroms Step Through Svart/Grå/Vit

Cykelbeskrivning

A true multi-tasker for anything from commuting to a loaded weekend camping trek down the coast, the Source Expert Disc does it all anytime, anywhere. Equipped with disc brakes and integrated lights, rack, and fenders, this step-through frame adds convenience, plus the 2x10 FSA/SRAM Apex drivetrain means light weight and flawless shifting.

>All-new, super light E5 fully-manipulated alloy frame is built for high speed, low-fuss, and great versatility, with tapered head tube, internal routing, rack/fender mounts, and center kickstand attachment.
>Sturdy alloy fork with Cr-Mo steerer and fender/rack mounts and internal light cable routing for the ultimate multi-purpose bike.
>SRAM Apex 2x10 drivetrain with 11-32t cassette and FSA compact crank for the latest in lightweight, wide-range gearing and spot-on shifting every time.
>Body Geometry Contour gel grips lock on and help alleviate hand pain and tingling fingers; compatible with integrated bar ends for changing hand position.
>Strong, reliable Avid hydraulic disc brakes for sure stopping and control in any weather with any load.
>Supernova E3 Pro headlight supplies over 300 lumens of light, plus a minimal but superbright taillight to keep you safe on the road anytime, both powered with a on/off switchable Supernova Infinity 8 hubdynamo.
>Supernova Infinity 8 hub-dynamo is superlight and can be switched off for a drag free option.
>Super light and compact Racktime Ultra hollow alloy rack lets you carry supplies without adding a lot of bulk; max load 10kg.
>.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized E5 aluminum, fully manipulated tubing, smooth weld, compact design, inside rear triangle disc mount, internal cable routing, integrated headset, fender/rack eyelets, center kickstand plate

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets, internal light cable routing

Styrlager

1 1/8" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers

Styrstolpe eller ev. styrstam

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

Styre

Specialized Expert flat bar, 2014 aluminum, 31.8mm

Handtag

Body Geometry Contour Women's, lock-on for bar ends

Bromsar fram

Avid Trekking hydraulic disc, 160mm G2CS rotors

Bromsar bak

Avid Trekking hydraulic disc, 160mm G2CS rotors

Bromshandtag

Avid Trekking hydraulic, 3-finger lever

Växelförare fram

SRAM Apex

Växelförare bak

SRAM Apex

Växelreglage

SRAM S700 flat bar, 10-speed

Kassett eller ev. drev bak

SRAM 1050, 10-speed, 11-32t

Kedja

KMC DX10SC

Vevparti

FSA Omega, 48/34, w/chainguard

Vevparti utväxling

48/34, alloy outer ring, w/chainguard

Vevlager

GXP, external bearing

Pedaler

Sirrus pedal, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable

Fälgar

DRX300 Disc, alloy double-wall, sleeved, CNC machined, 32h

Nav fram

Supernova Infinity 8 dynamo hub, Freespin technology switchable drag, QR

Nav bak

Forged alloy, sealed, cassette, QR, 32h

Ekrar

Stainless, 2mm

Däck fram

Specialized Espoir Sport Reflect w/ double BlackBelt, 60 TPI, wire bead, 700x30c

Däck bak

Specialized Espoir Sport Reflect w/ double BlackBelt, 60 TPI, wire bead, 700x30c

Innerslang

Presta Valve

Sadel

Body Geometry Riva Comp, 155mm wide

Sadelstolpe

Alloy, 2-bolt forged head, 27.2mm, 350mm

Sadelstolpsklämma

31.8 clamp ID, superlight forged and machined alloy HEADLIGHTSupernova E3 Pro, w/ multimount TAILLIGHTSupernova E3 tail light, grey DYNAMOSupernova Infinity 8 dynamo hub, 32h

Kedja

CASE- KICKSTANDSpecialized extra light, aluminum RACKRacktime Ultra, Specialized custom, hollow alloy, max. load 10kg FENDERSSpecialized aluminum, anodized finish, aluminum struts, "hidden" rack mount bracket BIKE LOCK- BELLNuvo aluminum mini bell NOTESOwners manual

Ramgeometri

Frame size

SM MD LG XL.

Seat tube length bottom bracket center to top

440mm 485mm 530mm 570mm.

Top tube length horizontal

570mm 580mm 600mm 620mm.

Bottom bracket drop

70mm 70mm 70mm 70mm.

Chain stay length

445mm 445mm 445mm 445mm.

Seat tube angle

73.25° 73.5° 73° 73°.

Head tube angle

71° 71.5° 72° 72°.

Fork rake

51mm 51mm 51mm 51mm.

Trail

67mm 63mm 60mm 60mm.

Front to center

629mm 637mm 647mm 667mm.

Wheel base

1065mm 1073mm 1082mm 1103mm.

Stand over height

750mm 786mm 821mm 859mm.

Head tube length

150mm 165mm 190mm 225mm.

Handle bar width

580mm 580mm 580mm 580mm.

Stem length

90mm 90mm 100mm 100mm.

Crank length

170mm 175mm 175mm 175mm.

Seat post length

350mm 350mm 350mm 350mm.
