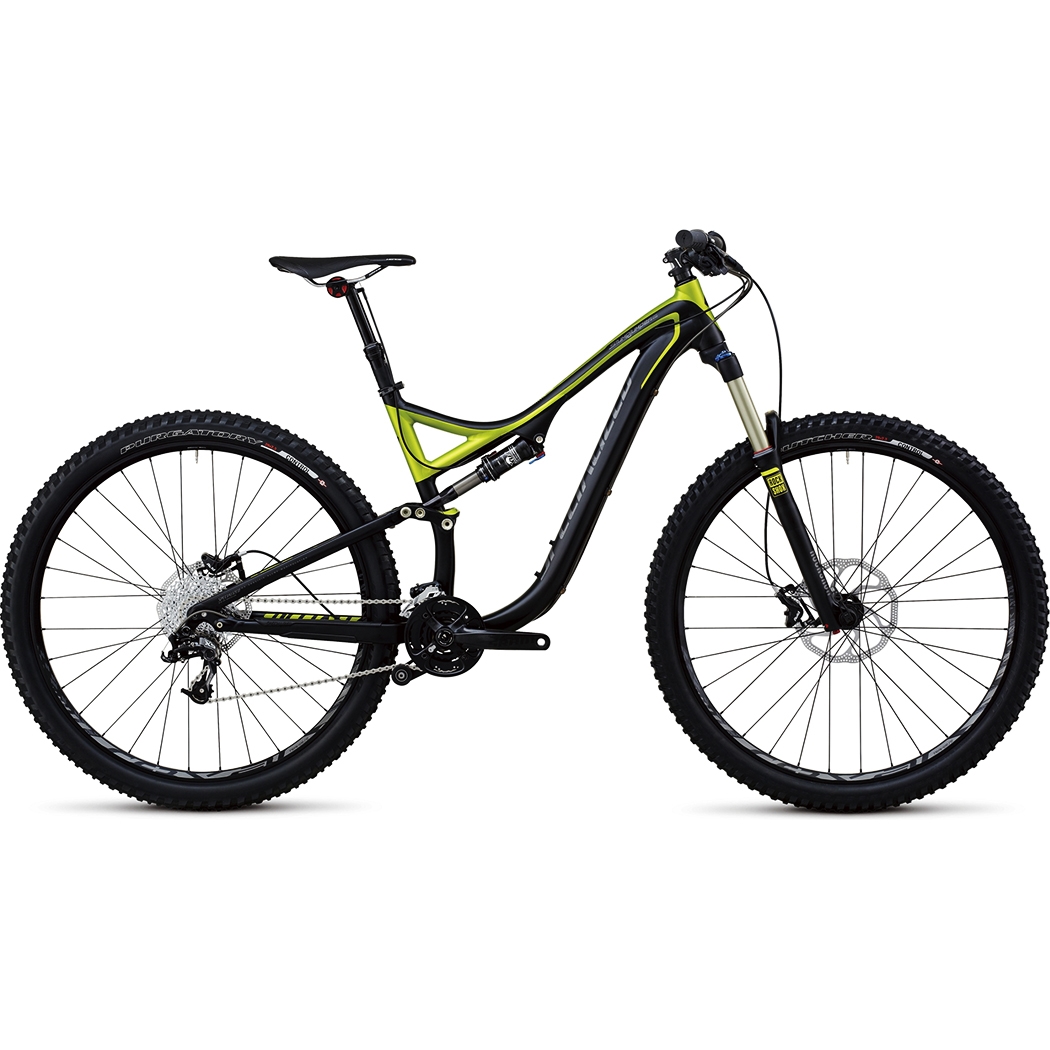

Specialized Stumpjumper FSR Comp Evo 29 Svart/Limegrön

Cykelbeskrivning

Aggressive trail riding meets 29" wheels in the form of the Stumpjumper FSR Comp EVO 29. The 135mm-travel Comp Evo 29 features a Fox Float CTD Factory shock with AUTOSAG, Custom RockShox Revelation 29 RC3, and Roval Traverse 29 142+ wheelset mounted to Specialized Purgatory and Butcher tires.

>M5 manipulated alloy frame with 135mm of rear wheel travel, EVO 29 geometry, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots pushes the boundaries of trail riding.
>FOX Float CTD Evolution shock with proprietary Specialized AUTOSAG features 3 compression settings: Climb, Trail and Descend, plus ProPedal.
>RockShox Revelation RC3 29 140mm fork has a tapered steerer, 20mm Maxle Lite thru-axle, 3-position damper: open, medium, and firm, rebound adjust, and lockout for a lightweight trail bike slider capable of ripping technical descents.
>Specialized Command Post BlackLite uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance.
>Wider Roval 29 rims mated to Specialized Hi Lo hubs, oversized endcaps, a 142+ rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding.
>All-new 2Bliss ready Specialized Butcher Control 29 2.3" dual-compound front tire for premium control on challenging trail conditions.
>Custom SRAM S-1250 XC Trail double crankset with PF30 spindle for improved ground clearance and a custom alloy guard for chain retention during high-speed descents.
>Specialized 720mm-wide, alloy XC Mini-Riser handlebar ideal for 29er handling and position.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>SRAM X9, Type2, 10-speed mid-cage rear derailleur for smooth and reliable shifts.
>SRAM PG-1030, 10-speed 11-36t cassette compliments the 2x10 drivetrain.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 hydroformed tubing, EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel

Stötdämpare bak

Custom FOX Float CTD Evolution with AUTOSAG, Climb, Trail, Descend settings and rebound adj., 194x48mm

Gaffel eller ev. stötdämpare fram

Custom RockShox Revelation 29 RC3, 3P damper, tapered alloy steerer, 3-position compression and reb adj., 20mm Maxle Lite, 140mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm

Styre

Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 180mm; L/XL 200mm rotor

Bromsar bak

Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 160mm; L/XL 180mm rotor

Bromshandtag

Custom Avid Elixir 5 R SL, tool-less reach adj.

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X9, 10-speed, mid cage, Type 2

Växelreglage

SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36

Kedja

KMC X10, nickel plate, reusable Missing Link

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed AM double, PF30 spindle, S: 170mm, Others: 175mm

Vevparti utväxling

33/22, w/ alloy guard

Vevlager

SRAM PF30, OS press-in bearing, sealed cartridge

Pedaler

Resin Test Ride Pedals with toe clips, CEN std.

Fälgar

Roval 29, alloy disc, 28mm wide, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearing, 20mm thru-axle, 32h

Nav bak

New Specialized disc, 4x-sealed cartridge bearing, 12mm thru-axle, 32h

Ekrar

DT Industry, 2.0 stainless

Däck fram

Specialized Butcher Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 29x2.3"

Däck bak

Specialized Purgatory Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 29x2.3"

Innerslang

Ultralight presta

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm travel

Sadelstolpsklämma

Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt NOTESProtective clear coat, derailleur hanger, owners manual

Ramgeometri

Frame size

S M L XL XXL.

Seat tube length center to top

396mm 430mm 468mm 523mm 565mm.

Top tube length

, Horizontal 567mm 596mm 622mm 648mm 668mm.

Top tube length

, Actual 579mm 606mm 632mm 660mm 684mm.

Bottom bracket drop

37mm 37mm 37mm 37mm 37mm.

Bottom bracket height

335mm 335mm 335mm 335mm 335mm.

Chainstay length

455mm 455mm 455mm 455mm 455mm.

Seat tube angle

, Actual 68° 68.4° 68.8° 69.3° 69.6°.

Seat tube angle

, Effective 73.5° 73.5° 73.5° 73.5° 73.5°.

Head tube angle

68° 68° 68° 68° 68°.

Wheel base

1126mm 1156mm 1183mm 1211mm 1234mm.

Standover height

750mm 741mm 750mm 764mm 779mm.

Head tube length

100mm 110mm 125mm 145mm 170mm.

Stack

619mm 629mm 643mm 661mm 685mm.

Reach

387mm 413mm 435mm 456mm 469mm.

Handlebar width

720mm 720mm 720mm 720mm 720mm.

Stem length

60mm 75mm 90mm 90mm 105mm.

Crank length

170mm 175mm 175mm 175mm 175mm.

Seatpost length

380mm 425mm 425mm 425mm 425mm.
