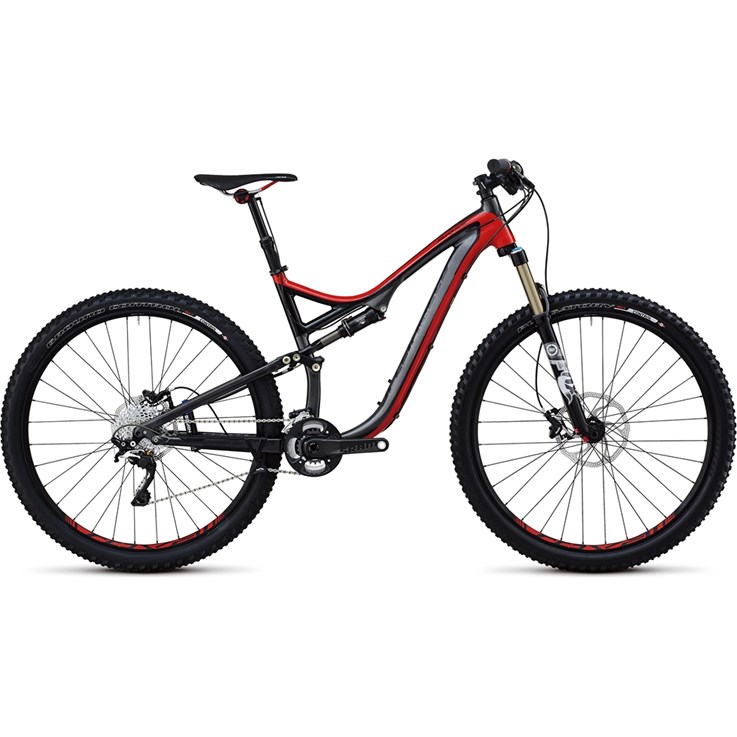

Specialized Stumpjumper FSR Elite 29 Röd/Grå/Svart
Artikelnummer.
93E3-5392 (S)
Övriga art.nr.
93E3-5393 (M)
93E3-5394 (L)
93E3-5395 (XL)
Cykelbeskrivning
The 130mm M5 hydroformed frame with 29er Trail geometry, plus a Fox/Specialized remote Brain shock with AUTOSAG, Fox TALAS CTD Evolution fork, custom Avid Elixir 5 SL disc brakes and a 142+ wheelset makes the SJ FSR Elite 29 one of the fiercest bikes on the trail.
>M5 alloy FSR frame with 29er geometry with 130mm of travel, full-cartridge bearing pivots, PF30 BB, Brain mount on seatstay and 142mm dropouts makes an amazingly stiff, light, and agile trail bike.
>FOX/Specialized Brain shock with ground-breaking AUTOSAG feature, Trail Tuned inertia valve damping, Brain Fade, and adjustable rebound lets riders dial in the perfect combination of pedaling efficiency and bump compliance.
>FOX TALAS CTD Evolution 29 series has an adjustable air spring with two-position travel between 140/120mm, rebound adjust and lockout, 15mm thru-axle and a tapered steerer tube for precise and plush performance.
>Roval 29 rims mated to Specialized Hi Lo hubs, a 142+ rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding.
>All-new 2.3" Purgatory Control with Adaptive Tread Technology has a fast-rolling tread pattern with awesome bite for loose conditions.
>Custom SRAM S2200 carbon double XC crankset with 36/22 gearing is built for strong ,yet lightweight performance; custom carbon chainring guard.
>Specialized 720mm-wide, alloy XC Mini-Riser handlebar ideal for 29er handling and position.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>Custom Avid Elixir 5 R SL with tool-less reach adjust, HS-1 rotors and alloy-backed organic pads for high-performance stopping power.
>Shimano XTR Shadow Plus long cage, 10-speed rear derailleur is tough, lightweight, and delivers pinpoint shifts.
>Shimano SLX 10-speed trigger shifters are lightweight and deliver pinpoint shifts.
>SRAM PG-1050, 10-speed 11-36t cassette compliments the 2x10 XC Trail drivetrain.
>Specialized Command Post BlackLite uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
M5 hydroformed tubing, 29" geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
Stötdämpare bak
FOX/Specialized remote Brain with AUTOSAG, inertia valve w/Trail Tune, BrainFade adjust, 194x48mm
Gaffel eller ev. stötdämpare fram
FOX TALAS CTD Evolution 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 130/105mm travel
Styrlager
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Styrstolpe eller ev. styrstam
Specialized XC Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm
Styre
Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10-degree backsweep, 6-degree upsweep, 31.8mm
Handtag
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
Bromsar fram
Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 180mm; L/XL 200mm rotor
Bromsar bak
Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 160mm; L/XL 180mm rotor
Bromshandtag
Custom Avid Elixir 5 R SL, tool-less reach adj.
Växelförare fram
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
Växelförare bak
Shimano XTR Shadow Plus, 10-speed, SGS long cage
Växelreglage
Shimano SLX 10-speed, trigger
Kassett eller ev. drev bak
SRAM PG-1050, 10-speed, 11-36
Kedja
KMC X10, nickel plate, reusable Missing Link
Vevparti
Custom SRAM carbon S-2200, 10-speed XC Trail double w/ carbon guard, PF30 spindle, removable spider, S: 170mm, Others: 175mm
Vevparti utväxling
36/22, w/ carbon guard
Vevlager
SRAM PF30, OS press-in bearing, sealed cartridge
Pedaler
Resin Test Ride Pedals with toe clips, CEN std.
Fälgar
Roval 29, alloy disc, 26mm wide, 32h
Nav fram
Specialized Hi Lo disc, sealed cartridge bearing, 15mm thru-axle, 32h
Nav bak
New Specialized disc, 4x-sealed cartridge bearing, 12mm thru-axle, 32h
Ekrar
DT Industry, 2.0 stainless
Däck fram
Specialized Purgatory Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 29x2.3"
Däck bak
Specialized Ground Control, 2Bliss Ready, 60TPI, aramid bead, 29x2.3"
Innerslang
Ultralight presta
Sadel
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Sadelstolpe
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm travel
Sadelstolpsklämma
Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt NOTESProtective clear coat, Specialized Dangler chain management radness, derailleur hanger, reflectors, owners manual, Mylar DT protector
Ramgeometri
Frame size
S M L XL.
Seat tube length center to top
396mm 430mm 468mm 523mm.
Top tube length
, Horizontal 567mm 596mm 622mm 648mm.
Top tube length
, Actual 576mm 603mm 632mm 660mm.
Bottom bracket drop
34mm 34mm 34mm 34mm.
Bottom bracket height
338mm 338mm 338mm 338mm.
Chainstay length
450mm 450mm 450mm 450mm.
Seat tube angle
, Actual 69° 69.4° 69.8° 70.3°.
Seat tube angle
, Effective 74.5° 74.5° 74.5° 74.5°.
Head tube angle
69° 69° 69° 69°.
Wheel base
1117mm 1147mm 1175mm 1203mm.
Standover height
750mm 741mm 750mm 764mm.
Head tube length
90mm 100mm 125mm 145mm.
Stack
605mm 614mm 638mm 656mm.
Reach
399mm 427mm 445mm 466mm.
Handlebar width
720mm 720mm 720mm 720mm.
Stem length
60mm 75mm 90mm 90mm.
Crank length
170mm 175mm 175mm 175mm.
Seatpost length
380mm 425mm 425mm 425mm.
