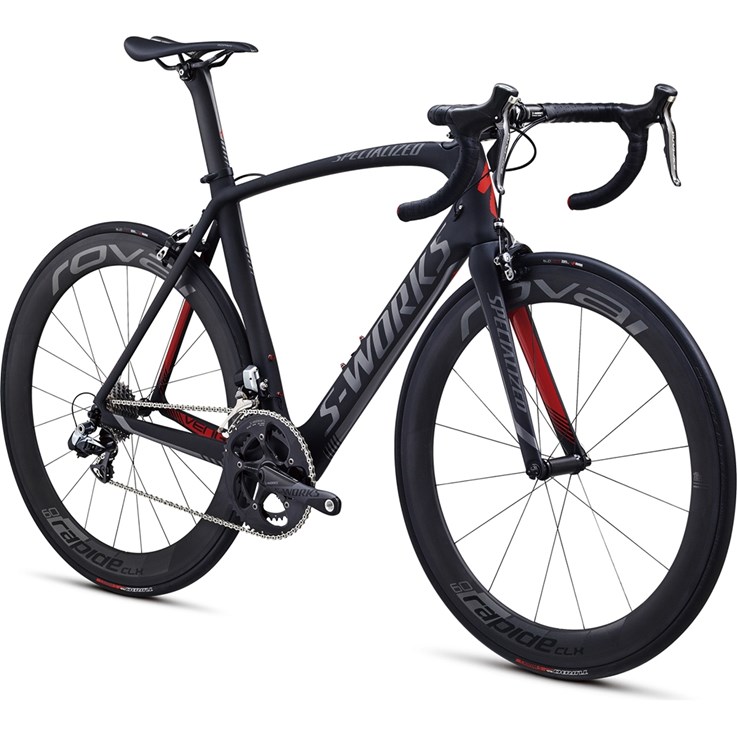

Specialized S-Works Venge Shimano Di2 Dubbel Standard Materialfärg/Grå/Röd

Cykelbeskrivning

The S-Works Venge's competition-crushing combo of Tarmac-inspired stiffness and light weight with Shiv-inspired aerodynamics makes this pure race machine truly more bike than aero. Throw in a FACT IS 11r carbon frame plus Pro Tour-proven Shimano Di2 electronic components, and this bike will elevate you to a whole new level.

>UCI-legal, FACT IS 11r Aero Race Design, full-monocoque carbon frame with one-piece carbon OSBB/chainstay, internal cable routing, and tapered head tube provides the complete performance formula for weight, stiffness and aerodynamics.
>UCI-legal, full carbon monocoque S-Works fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness; carbon dropouts with co-molded steel inserts for added durability.
>Specialized S-Works FACT carbon crankset with OSBB, removable carbon spider, and ceramic bearings has incredible stiffness-to-weight for max power.
>S-Works Turbo 220 TPI tire offers a fast, light, and touhg tire. Extremely low rolling resistance and superior cornering traction lets you climb easily, desend faster, and corner harder.
>Stiff, light, UCI-legal bladed carbon seatpost flips between 20mm and 0mm setback and wide range of vertical adjustability; pairs with lightweight BG Romin Pro saddle with carbon rails.
>Pro-quality, long-lasting and lightweight Ceramic Speed bottom bracket with ceramic bearings for reduced friction.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

S-Works FACT 11r carbon, FACT IS construction, aero tube shape, compact race design, tapered 1-1/8" to 1-3/8" head tube, internal cable routing, carbon OSBB

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

S-Works FACT carbon, full monocoque, OS race for 1-3/8" bearing

Styrlager

1-1/8" upper and 1-3/8" lower Cr-Mo cartridge bearings, w/ custom Venge top cap

Styrstolpe eller ev. styrstam

New S-Works ProSet stem, 7050 3D-forged with carbon-clip front cap/cone, 4-degree shim, CNC head bolts

Styre

S-Works Tarmac carbon, short drop

Styrlinda

Specialized S-Works wrap

Bromsar fram

New Shimano Dura-Ace

Bromsar bak

New Shimano Dura-Ace

Bromshandtag

Shimano Dura-Ace Di2, Flight Deck compatible

Växelförare fram

New Shimano Dura-Ace Di2 11-speed

Växelförare bak

New Shimano Dura-Ace Di2 11-speed

Växelreglage

New Shimano Dura-Ace Di2

Kassett eller ev. drev bak

Shimano Dura Ace, 11-speed, 11-25

Kedja

New Shimano Dura-Ace 11-speed

Vevparti

S-Works FACT carbon

Vevparti utväxling

53/39

Vevlager

Ceramic Speed, OSBB integrated ceramic, 30x42x7mm

Pedaler

Nylon flat test ride, loose ball, w/ reflectors

Hjul fram

Roval Rapide CLX 60 with Ceramic Speed bearings

Hjul bak

Roval Rapide CLX 60 with Ceramic Speed bearings

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

S-Works Turbo, BlackBelt, 220TPI, aramid bead, 700x23c

Däck bak

S-Works Turbo, BlackBelt, 220TPI, aramid bead, 700x23c

Innerslang

Super Light Turbo, 60mm presta valve

Sadel

Body Geometry Romin Pro, carbon rails, 143mm

Sadelstolpe

S-Works Venge FACT carbon, flippable 20/0mm offset

Sadelstolpsklämma

Venge integrated seat clamp assembly NOTESCarbon chainstay protector, derailleur hanger, clear coat, owners manual

Ramgeometri

Frame size

49 52 54 56 58 61.

Seat tube length bottom bracket center to top

467mm 487mm 507mm 527mm 547mm 577mm.

Top tube length horizontal

518mm 537mm 548mm 565mm 582mm 600mm.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5°.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74°.

Fork rake

45mm 45mm 45mm 43mm 43mm 43mm.

Trail

62mm 57mm 57mm 56mm 56mm 53mm.

Front to center

576mm 576mm 583mm 590mm 605mm 612mm.

Wheel base

970mm 970mm 978mm 986mm 1003mm 1013mm.

Stand over height

741mm 766mm 789mm 809mm 834mm 860mm.

Head tube length

100mm 120mm 140mm 160mm 190mm 210mm.

Handle bar width

400mm 420mm 420mm 420mm 440mm 440mm.

Stem length

75mm 90mm 100mm 100mm 110mm 110mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Seat post length

300mm 300mm 300mm 350mm 350mm 350mm.

Reach

385mm 385mm 386mm 395mm 401mm 407mm.

Stack

506mm 528mm 544mm 566mm 593mm 614mm.
