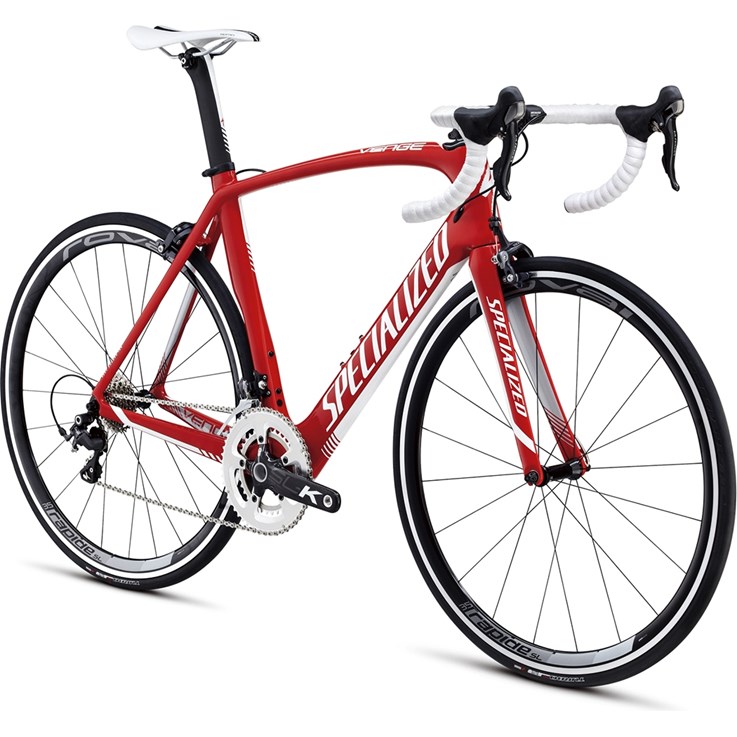

Specialized Venge Expert Dubbel Kompakt Mid Röd/Vit

Cykelbeskrivning

The Venge Expert's competition-crushing combo of Tarmac-inspired stiffness and light weight with Shiv-inspired aerodynamics makes this pure race machine truly more bike than aero. Shimano Ultegra components and Roval Rapide SL 35 aero wheels are ready to race.

>UCI-legal, FACT IS 11r Aero Race Design, full-monocoque carbon frame with one-piece carbon OSBB/chainstay, internal cable routing, and tapered head tube provides the complete performance formula for weight, stiffness and aerodynamics.
>FSA SL-K Light carbon BB30 crank is stiff and light for excellent power transfer.
>UCI-legal, full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness.
>Specialized Turbo Elite 100 TPI, offers BlackBelt protection for a tough tire that still offers low rolling resistance, great traction, and light weight to allow for quick climps and fast decents.
>Stiff, light, UCI-legal bladed carbon seatpost; pairs with Specialized BG Romin Comp with a shaped profile for max power and hollow Cr-Mo rails for durability.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 10r carbon, FACT IS construction, aero tube shape, compact race design, tapered 1-1/8" to 1-3/8" head tube, internal cable routing, carbon OSBB

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Venge Pro FACT carbon, full monocoque, OS race for 1-3/8" bearing

Styrlager

1-1/8" upper and 1-3/8" lower Cr-Mo cartridge bearings, w/ custom Venge top cap

Styrstolpe eller ev. styrstam

Specialized Comp-Set 6061 alloy, cone head bolt, 12-degree, 4-degree shim, 31.8mm

Styre

Specialized Tarmac Expert, 2014 alloy

Styrlinda

Specialized Pro D2

Bromsar fram

Shimano Ultegra

Bromsar bak

Shimano Ultegra

Bromshandtag

Shimano Ultegra STI, Flight Deck compatible

Växelförare fram

Shimano Ultegra

Växelförare bak

Shimano Ultegra

Växelreglage

Shimano Ultegra STI

Kassett eller ev. drev bak

Shimano 105, 10-speed, 11-28

Kedja

Shimano Tiagra 10-speed

Vevparti

FSA SL-K Light, carbon, BB30

Vevparti utväxling

50/36

Vevlager

With crankset

Pedaler

Nylon flat test ride, loose ball, w/ reflectors

Hjul fram

Roval Rapide SL 35

Hjul bak

Roval Rapide SL 35

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Specialized Turbo Elite, BlackBelt, 100TPI, aramid bead, 700x23c

Däck bak

Specialized Turbo Elite, BlackBelt, 100TPI, aramid bead, 700x23c

Innerslang

Lightweight, 60mm, presta

Sadel

Body Geometry Romin Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Venge Aero, FACT carbon, flippable 20/0mm offset

Sadelstolpsklämma

Venge integrated seat clamp assembly NOTESchainstay protector, chain catcher, derailleur hanger, clear coat, owners manual

Ramgeometri

Frame size

49.0 52.0 54.0 56.0 58.0 61.0.

Seat tube length bottom bracket center to top

467mm 487mm 507mm 527mm 547mm 577mm.

Top tube length horizontal

518mm 537mm 548mm 565mm 582mm 600mm.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5°.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74°.

Fork rake

45mm 45mm 45mm 43mm 43mm 43mm.

Trail

62mm 57mm 57mm 56mm 56mm 53mm.

Front to center

576mm 576mm 583mm 590mm 605mm 612mm.

Wheel base

970mm 970mm 978mm 986mm 1003mm 1013mm.

Stand over height

741mm 766mm 789mm 809mm 834mm 860mm.

Head tube length

100mm 120mm 140mm 160mm 190mm 210mm.

Handle bar width

400mm 420mm 420mm 420mm 440mm 440mm.

Stem length

75mm 90mm 100mm 100mm 110mm 110mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Seat post length

300mm 300mm 300mm 350mm 350mm 350mm.

Reach

385mm 385mm 386mm 395mm 401mm 407mm.

Stack

506mm 528mm 544mm 566mm 593mm 614mm.
