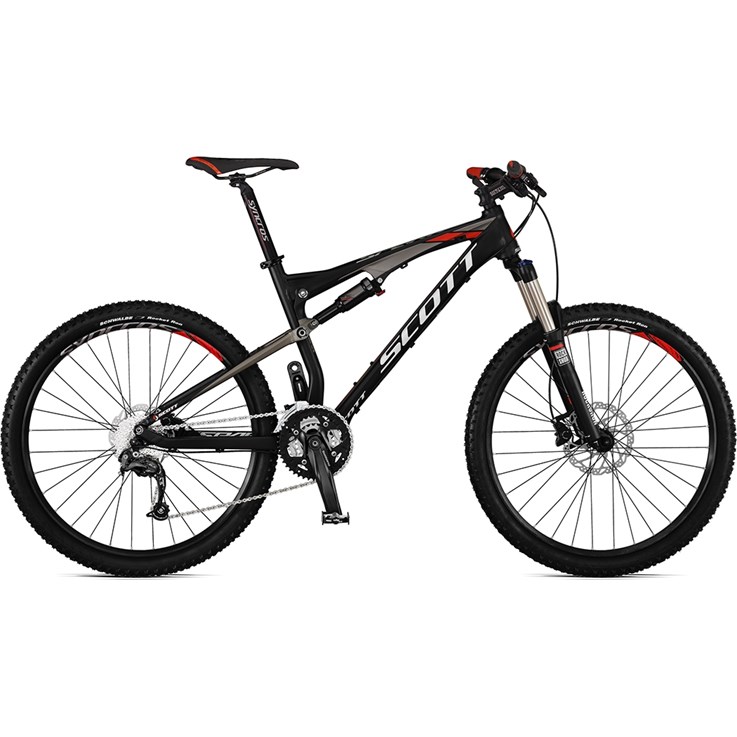

Scott Spark 660

Low price fully with high end and light alloy frame, performance selected parts, Syncros components

Specifikationsnyheter
Syncros components

Cykelspecifikationer
Ram Spark Alloy 6061 custom butted, hydroformed tubes / U-Mono Link, replaceable derailleur hanger / 135mm, rear PM 160 / BB height adjustable, 120mm rear travel
Gaffel eller ev. stötdämpare fram Rock Shox XC 32 TK / Coil spring, Alloy Steerer / Lockout, reb. Adj. / 120 mm travel
Gaffel övrigt nil
Stötdämpare bak X-Fusion E1 RL, 190 x 50mm / reb. Reb. / Lockout
Styrlager Ritchey OE 1 1/8", semi integrated 44/50mm
Växelförare bak Shimano SLX RD-M662 SGS, Shadow Type / 27 Speed
Växelförare fram Shimano SLX FD-M660-E / DM
Växelhandtag Shimano Alivio SL-M430, Rapidfire plus, w/gear indicator
Bromshandtag Shimano BL-M445 Disc
Bromsar Shimano BR-M446 Disc, 180/F and 160/R mm SM-RT54 CL Rotor
Vevparti Shimano FC-M430-8 Octalink, 44x32x22 T
Vevlager Shimano ES25 Octalink / 73-118mm
Styre Syncros FL2.5, 6061 D.B. 15mm rise / 9° / 700mm
Styrstam Syncros FL2.0, 6061 Alloy / oversize 31.8mm, 1-1/8" / 6° angle
Pedaler Wellgo M-21
Sadelstolpe Syncros FL2.5 / 31.6mm
Sadel Syncros XR2.5
Nav fram Formula CL51
Nav bak Shimano FH-RM66 Disc CL
Kedja KMC X9
Kassett eller ev. drev bak Shimano CS HG-50 -9, 11-34 T
Ekrar Stainless Black 15G / 1.8mm
Fälgar Syncros XC-44 Disc , 32H / Eyelets,
Däck Schwalbe Rocket Ron, 26 x 2.25 / 50EPI, Active Line
Vikt 13.2 kg / 29.07 lbs

Ramgeometri
S S M M L L XL XL
BB setting high BB setting low BB setting high BB setting low BB setting high BB setting low BB setting high BB setting low
Head tube angle 68.7° 68.0° 68.7° 68.0° 68.7° 68.0° 68.7° 68.0°
Head tube length 110 mm 4.3 in 110 mm 4.3 in 120 mm 4.7 in 120 mm 4.7 in 140 mm 5.5 in 140 mm 5.5 in 160 mm 6.3 in 160 mm 6.3 in
Top tube horizontal 553 mm 21.8 in 555 mm 21.9 in 589 mm 23.2 in 590 mm 23.2 in 618 mm 24.3 in 620 mm 24.4 in 648 mm 25.5 in 650 mm 25.6 in
Top tube length actual 509 mm 20.0 in 509 mm 20.0 in 540 mm 21.3 in 540 mm 21.3 in 570 mm 22.4 in 570 mm 22.4 in 602 mm 23.7 in 602 mm 23.7 in
Seat tube angle 74.2° 73.5° 74.2° 73.5° 74.2° 73.5° 74.2° 73.5°
Bottom bracket center to top of seattube 400 mm 15.7 in 400 mm 15.7 in 450 mm 17.7 in 450 mm 17.7 in 490 mm 19.3 in 490 mm 19.3 in 540 mm 21.3 in 540 mm 21.3 in
Bottom bracket center to toptube center 331 mm 13.0 in 331 mm 13.0 in 347 mm 13.7 in 347 mm 13.7 in 395 mm 15.6 in 395 mm 15.6 in 435 mm 17.1 in 435 mm 17.1 in
Chainstay length 420 mm 16.5 in 420 mm 16.5 in 420 mm 16.5 in 420 mm 16.5 in 420 mm 16.5 in 420 mm 16.5 in 420 mm 16.5 in 420 mm 16.5 in
Bottom bracket offset 2 mm 0.1 in -8 mm -0.3 in 2 mm 0.1 in -8 mm -0.3 in 2 mm 0.1 in -8 mm -0.3 in 2 mm 0.1 in -8 mm -0.3 in
Bottom bracket height 342 mm 13.5 in 332 mm 13.1 in 342 mm 13.5 in 332 mm 13.1 in 342 mm 13.5 in 332 mm 13.1 in 342 mm 13.5 in 332 mm 13.1 in
Standover height 757 mm 29.8 in 753 mm 29.6 in 767 mm 30.2 in 763 mm 30.0 in 804 mm 31.7 in 800 mm 31.5 in 835 mm 32.9 in 830 mm 32.7 in
Wheel base 1072 mm 42.2 in 1073 mm 42.2 in 1108 mm 43.6 in 1109 mm 43.7 in 1140 mm 44.9 in 1141 mm 44.9 in 1172 mm 46.1 in 1173 mm 46.2 in
Reach 397 mm 15.6 in 391 mm 15.4 in 429 mm 16.9 in 423 mm 16.7 in 453 mm 17.8 in 448 mm 17.6 in 478 mm 18.8 in 473 mm 18.6 in
Stack 552 mm 21.7 in 556 mm 21.9 in 561 mm 22.1 in 565 mm 22.2 in 579 mm 22.8 in 583 mm 23.0 in 598 mm 23.5 in 602 mm 23.7 in
Stem length 70 mm 70 mm 80 mm 80 mm 90 mm 90 mm 100 mm 100 mm
