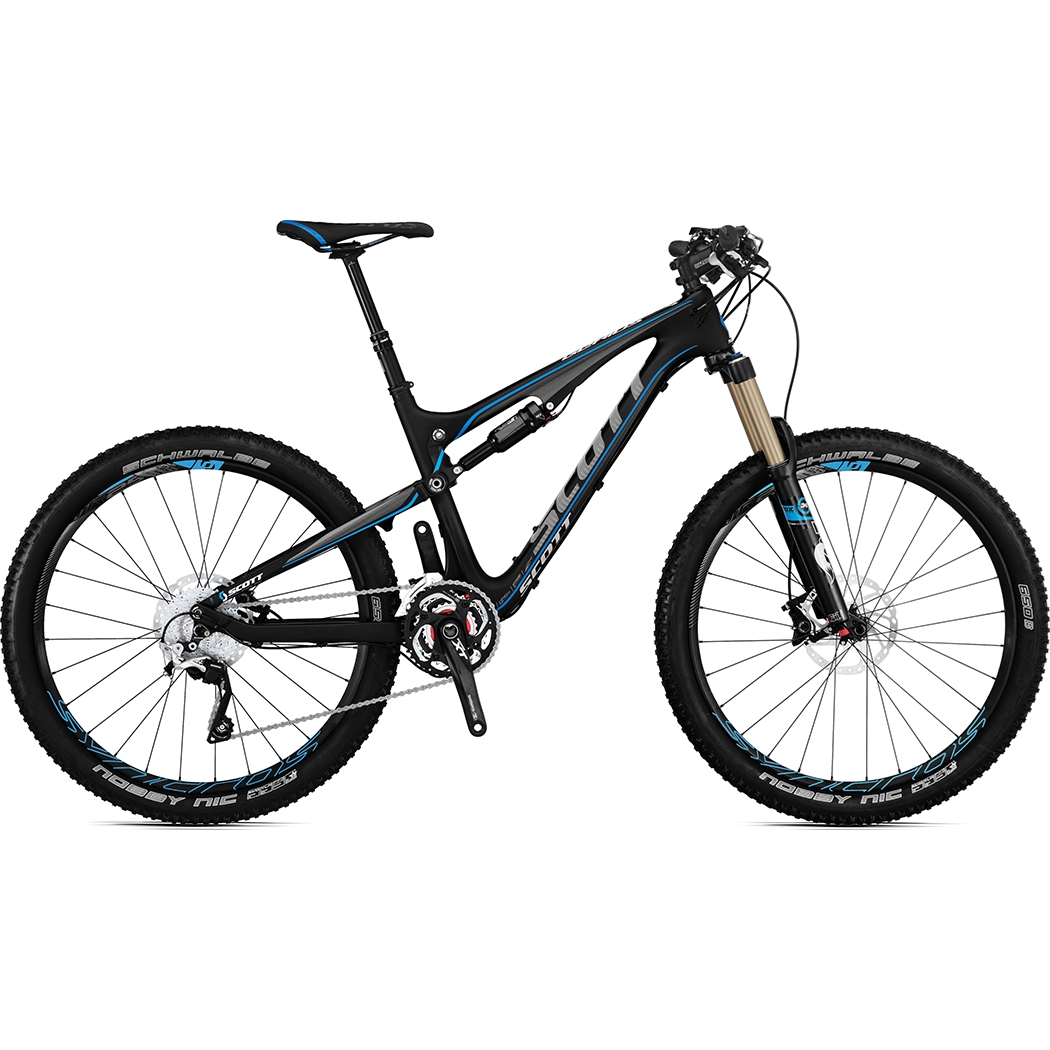

Scott Genius 710

Best trail chassis in the market, 27,5" (650b) wheels, super light for 150mm travel, TwinLoc, LTD suspension with 3 modes on fork and shock, adjustable geometry, front and rear thru axle, Rock Shox Reverb Stealth adj seatpost, tubeless ready, Syncros components

Specifikationsnyheter
New model, frame featuring 150mm of travel, 27,5" (650b) wheels, FOX fork and Nude 2 rear shock with updated damping, LTD suspension with 3 modes F & R, rear IDS SL 12mm thru axle,Syncros components

Cykelspecifikationer
Ram Genius 650b Carbon / IMP5 / HMF net, BB 92 / Alloy swingarm with 180PM, U-Mono Link / Tapered Headtube, IDS SL dropouts for 142 x12mm, BB height adj. / 150mm rear travel
Gaffel eller ev. stötdämpare fram FOX 34 Talas 650b Factory CTD FIT Air, CTD remote damper with 3 modes, 15mm QR axle / tapered steerer , reb. Adj. / 150 - 120 mm travel
Gaffel övrigt Scott LTD suspension technology, Lock - Traction (travel / geo adj) - Descend, activate by Twinloc Remote Lever, Lockout - 100 - 150mm
Stötdämpare bak Scott DT Nude2 / 3 modes Lockout-TC-D, Ball joints / 200 x 57mm / reb. Adj.
Styrlager Ritchey Pro Tapered 1.5" - 1 1/8", semi integr. OD 50/61mm / ID 44/55mm
Växelförare bak Shimano XT RD-M786 SGS, Shadow PlusType / 30 Speed
Växelförare fram Shimano XT FD-M780-E / DM
Växelhandtag Shimano XT SL-M780-I, Rapidfire Plus / 2 way release, Ispec clamp
Bromshandtag Shimano XT BL-M785 Disc
Bromsar Shimano XT BR-M785 Disc, 180/F and 180/R mm SM-RT64 CL Rotor
Vevparti Shimano XT FC-M780, hollowtech 2, 42Ax32Ax24A T
Vevlager Shimano SM-BB71-41A / shell 41x92mm
Styre Syncros FL1.5 Tbar, Alloy 7050 D.B. / T shape Flat / 9° / 700mm, Syncros Pro lockon grips
Styrstam Syncros TR1.5, 2014 / 4D forged / oversize 31.8mm, 1-1/8" / 6° angle
Pedaler nil
Sadelstolpe Rock Shox Reverb Stealth, inside hydraulic
Gaffel övrigt / 31.6mm
Sadel Syncros TR1.5 / Titanium rails
Nav fram Syncros TR 2.0 650b CL / 15mm, made by DT Swiss
Nav bak Syncros TR 2.0 650b CL / 12 x 142 RWS, made by DT Swiss
Kedja Shimano CN-HG74
Kassett eller ev. drev bak Shimano XT CS-M77110, 11-36 T
Ekrar DT Swiss Super Comp black
Fälgar Syncros / DT Swiss TR 2.0 650b (27.5), 28 H
Däck Schwalbe Nobby Nic EVO Snake Skin, 27.5 (650b) x 2.25 / 67 EPI Kevlar Bead, Pace Star compound / Tubeless ready
Vikt 12.7 kg / 27.97 lbs

Ramgeometri
S S M M L L XL XL
Position low Position high Position low Position high Position low Position high Position low Position high
Fork rake 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in
Head tube angle 67.7° 68.2° 67.7° 68.2° 67.7° 68.2° 67.7° 68.2°
Head tube length 100.0 mm 3.9 in 100.0 mm 3.9 in 110.0 mm 4.3 in 110.0 mm 4.3 in 120.0 mm 4.7 in 120.0 mm 4.7 in 135.0 mm 5.3 in 135.0 mm 5.3 in
Top tube horizontal 570.0 mm 22.4 in 570.0 mm 22.4 in 600.0 mm 23.6 in 600.0 mm 23.6 in 625.0 mm 24.6 in 625.0 mm 24.6 in 650.0 mm 25.6 in 650.0 mm 25.6 in
Seat tube angle 73.8° 74.3° 73.8° 74.3° 73.8° 74.3° 73.8° 74.3°
Bottom bracket center to top of seattube 415.0 mm 16.3 in 415.0 mm 16.3 in 440.0 mm 17.3 in 440.0 mm 17.3 in 475.0 mm 18.7 in 475.0 mm 18.7 in 510.0 mm 20.1 in 510.0 mm 20.1 in
Chainstay length 440 mm 17.3 in 440 mm 17.3 in 440 mm 17.3 in 440 mm 17.3 in 440 mm 17.3 in 440 mm 17.3 in 440 mm 17.3 in 440 mm 17.3 in
Bottom bracket offset 10.0 mm -0.4 in -4.0 mm -0.2 in 10.0 mm -0.4 in -4.0 mm -0.2 in 10.0 mm -0.4 in -4.0 mm -0.2 in 10.0 mm -0.4 in -4.0 mm -0.2 in
Bottom bracket height 346.0 mm 13.6 in 352.0 mm 13.9 in 346.0 mm 13.6 in 352.0 mm 13.9 in 346.0 mm 13.6 in 352.0 mm 13.9 in 346.0 mm 13.6 in 352.0 mm 13.9 in
Standover height 776.0 mm 30.6 in 776.0 mm 30.6 in 777.0 mm 30.6 in 777.0 mm 30.6 in 809.0 mm 31.9 in 809.0 mm 31.9 in 815.0 mm 32.1 in 815.0 mm 32.1 in
Wheel base 1124 mm 44.3 in 1124 mm 44.3 in 1155 mm 45.5 in 1155 mm 45.5 in 1181 mm 46.6 in 1181 mm 46.6 in 1208 mm 47.6 in 1208 mm 47.6 in
Reach 399.0 mm 15.7 in 404.0 mm 15.9 in 427.0 mm 16.8 in 431.0 mm 17.0 in 449.0 mm 17.7 in 454.0 mm 17.9 in 470.0 mm 18.5 in 475.0 mm 18.7 in
Stack 590.0 mm 23.2 in 587.0 mm 23.1 in 599.0 mm 23.6 in 596.0 mm 23.5 in 609.0 mm 24.0 in 605.0 mm 23.8 in 623.0 mm 24.5 in 619.0 mm 24.4 in
Stem length 60 60 70 70 80 80 90 90
