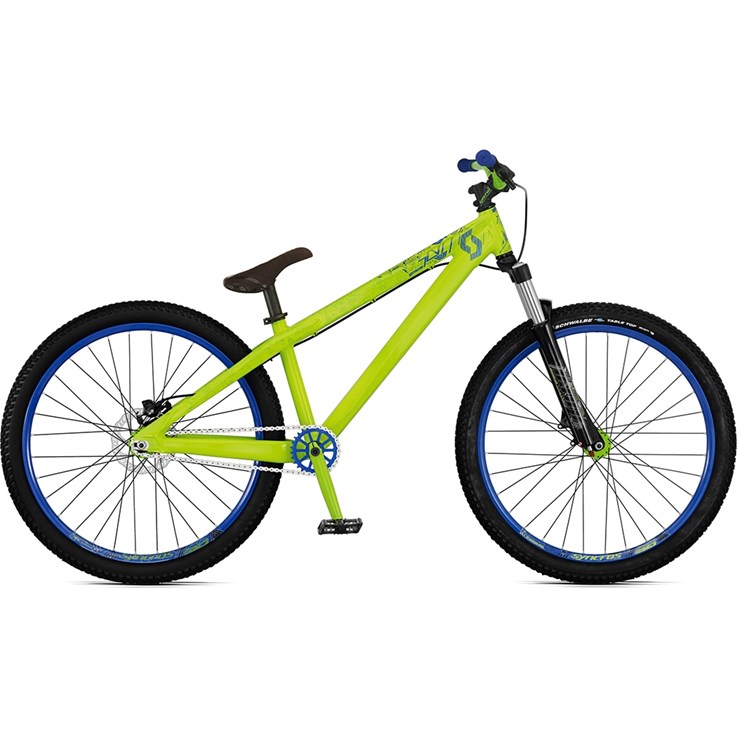

Scott Voltage YZ 0.1

A solid singlespeed dirtjumper with all the pimpest parts, at a great price.

Specifikationsnyheter
Syncros DJ components

Cykelspecifikationer
Ram Scott Voltage B-Ram, super stiff 6061 alloy
Ram, hydroformed tubing, Disc Dropout, horizontal for 10mm singlespeed
Gaffel eller ev. stötdämpare fram Suntour Duro DJ D / Coil, reb adj. / preload adjustable, 100mm travel
Styrlager Ritchey LB Plus / 1 1/8"
Bromshandtag Tektro HDC 300
Bromsar Tektro HDC 300 Hydraulic Disc, 160mm F & R Rotor
Vevparti Scott Cr-Mo 3-piece cranks 175mm,, 28T Alloy BMX sprocket,
Vevlager Scott Euro BB external alloy cups 73mm , Spanished sealed bearings, , hollow 19mm 8T spindle
Styre Syncros DJ 2.0, 6061 alloy D.B / 740mm /50mm rise
Styrstam Syncros FR 1.5, 11/8" / 8° angle, 50mm ext.
Pedaler Wellgo B107.N / flat
Sadelstolpe Syncros Pivotal / 31.6mm
Sadel Syncros Pivotal
Nav fram Formula DC-20-N
Nav bak Formula DC42-N, w/tracknut, cassette singlespeed
Kedja KMC Z510
Kassett eller ev. drev bak Sprocket cassette, 12T
Ekrar Stainless Black 15G / 1.8mm
Fälgar Syncros FR 30 Disc, 32H
Däck Schwalbe Table Top Sport Active, 50EPI / wire bead, 26x2.25 / Timo's signature tires
Vikt 12.8 kg / 28.19 lbs

Ramgeometri
YZ A-FRAME YZ B-FRAME YZ D-FRAME 26" YZ D-FRAME 24"
Head tube angle 68.5° 68.5° 68.5° 69.0°
Head tube length 110 mm 4.3 in 110 mm 4.3 in 110 mm 4.3 in 110 mm 4.3 in
Top tube horizontal 595 mm 23.4 in 575 mm 22.6 in 585 mm 23.0 in 584 mm 23.0 in
Top tube length actual 567 mm 22.3 in 568 mm 22.4 in 574 mm 22.6 in 563 mm 22.2 in
Seat tube angle 71.0° 74.0° 74.0° 70.3°
Bottom bracket center to top of seattube 316 mm 12.4 in 330 mm 13.0 in 330 mm 13.0 in 260 mm 10.2 in
Bottom bracket center to toptube center 266 mm 10.5 in 280 mm 11.0 in 280 mm 11.0 in 215 mm 8.5 in
Chainstay length 385 mm - with IDS washer +5mm or -6mm 405 mm 15.9 in 405 mm 15.9 in 360 mm 14.2 in
Bottom bracket offset -15 mm -0.6 in -15 mm -0.6 in -22 mm -0.9 in -3 mm -0.1 in
Bottom bracket height 325 mm 12.8 in 325 mm 12.8 in 318 mm 12.5 in 307 mm 12.1 in
Standover height 702 mm 27.6 in 707 mm 27.8 in 707 mm 27.8 in 690 mm 27.2 in
Wheel base 1050 mm 41.3 in 1078 mm 42.4 in 1073 mm 42.2 in 999 mm 39.3 in
Reach 400 mm 15.7 in 414 mm 16.3 in - - - -
Stack 567 mm 22.3 in 562 mm 22.1 in - - - -
Stem length 40 mm 40 mm 40 mm 40 mm
