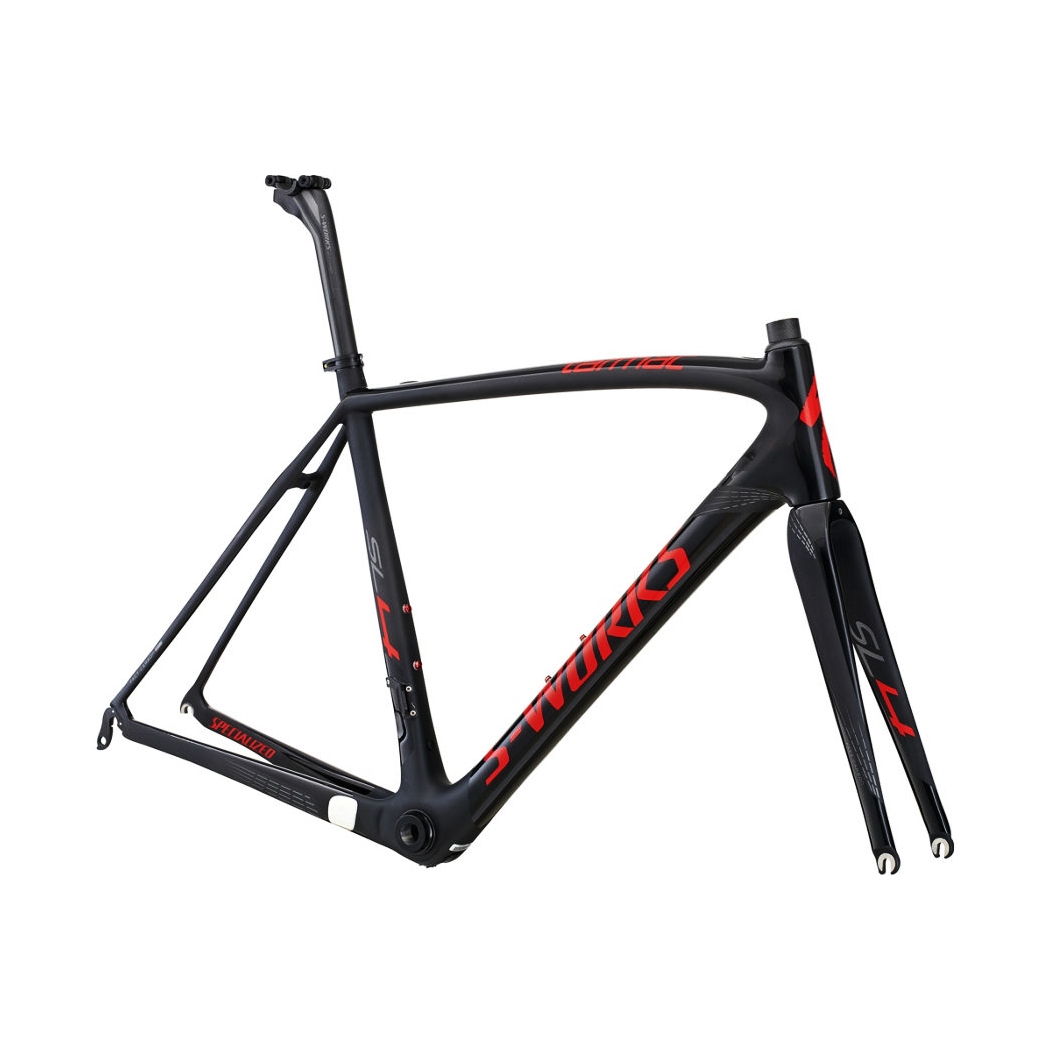

Specialized S-Works Tarmac SL4 Bara Ram (Frameset) Materialfärg/Röd

Cykelbeskrivning

The S-Works Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. It's the lightest, stiffest frame we make and it shows as soon as you push on the pedals. Bottom line, you'll be faster on this bike. There's a reason it's the weapon of choice for the Saxo-Tinkoff, Astana and Omega Pharma-Quick-Step Pro Tour teams.

>S-Works SL4 FACT 11r carbon frame has our highest stiffness-to-weight ratio ever, with tapered headtube, OSBB, and internal cable routing for race day performance.
>Full monocoque FACT carbon fork with a tapered carbon steerer is super light with great torsional rigidity for high-speed handling.
>Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket with ceramic bearings for reduced friction.
>S-Works FACT carbon seatpost and cradle is super light and stiff for optimal power transfer, fully adjustable, and accommodates carbon rails.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

S-Works SL4 FACT 11r carbon, FACT construction, tapered/shaped headtube, compact race design, 1-3/8" lower headset bearing, carbon OSBB

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

S-Works Tarmac FACT carbon full monocoque, OS race for 1-3/8" bearing, hollow carbon dropouts

Styrlager

1-1/8" upper and 1-3/8" lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

Styrstolpe eller ev. styrstam

Styre

Styrlinda

Bromsar fram

Bromsar bak

Bromshandtag

Växelförare fram

Växelförare bak

Växelreglage

Kassett eller ev. drev bak

Kedja

Vevparti

Vevparti utväxling

Vevlager

OS integrated, CeramicSpeed, sealed ceramic bearings

Pedaler

Hjul fram

Hjul bak

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Däck bak

Innerslang

Sadel

Sadelstolpe

S-Works SL, FACT carbon, 2-bolt, 27.2mm

Sadelstolpsklämma

Forged alloy, 32.6mm, Ti bolt

Utrustning

Övrigt

Ramgeometri

Frame size

490.0 520.0 540.0 560.0 580.0 610.0.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Fork rake

45mm 45mm 45mm 43mm 43mm 43mm.

Front to center

576mm 576mm 583mm 591mm 605mm 612mm.

Handle bar width

400mm 420mm 420mm 420mm 440mm 440mm.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74°.

Head tube length

100mm 120mm 140mm 160mm 190mm 210mm.

Reach

386mm 386mm 387mm 395mm 402mm 408mm.

Seat post length

300mm 300mm 350mm 350mm 350mm 350mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5°.

Seat tube length bottom bracket center to top

460mm 490mm 510mm 530mm 550mm 580mm.

Stack

504mm 526mm 543mm 564mm 591mm 612mm.

Stand over height

730mm 755mm 775mm 795mm 826mm 850mm.

Stem length

75mm 90mm 100mm 100mm 110mm 110mm.

Top tube length horizontal

518mm 537mm 548mm 565mm 582mm 600mm.

Trail

62mm 57mm 57mm 56mm 56mm 53mm.

Wheel base

970mm 970mm 978mm 986mm 1003mm 1013mm.
