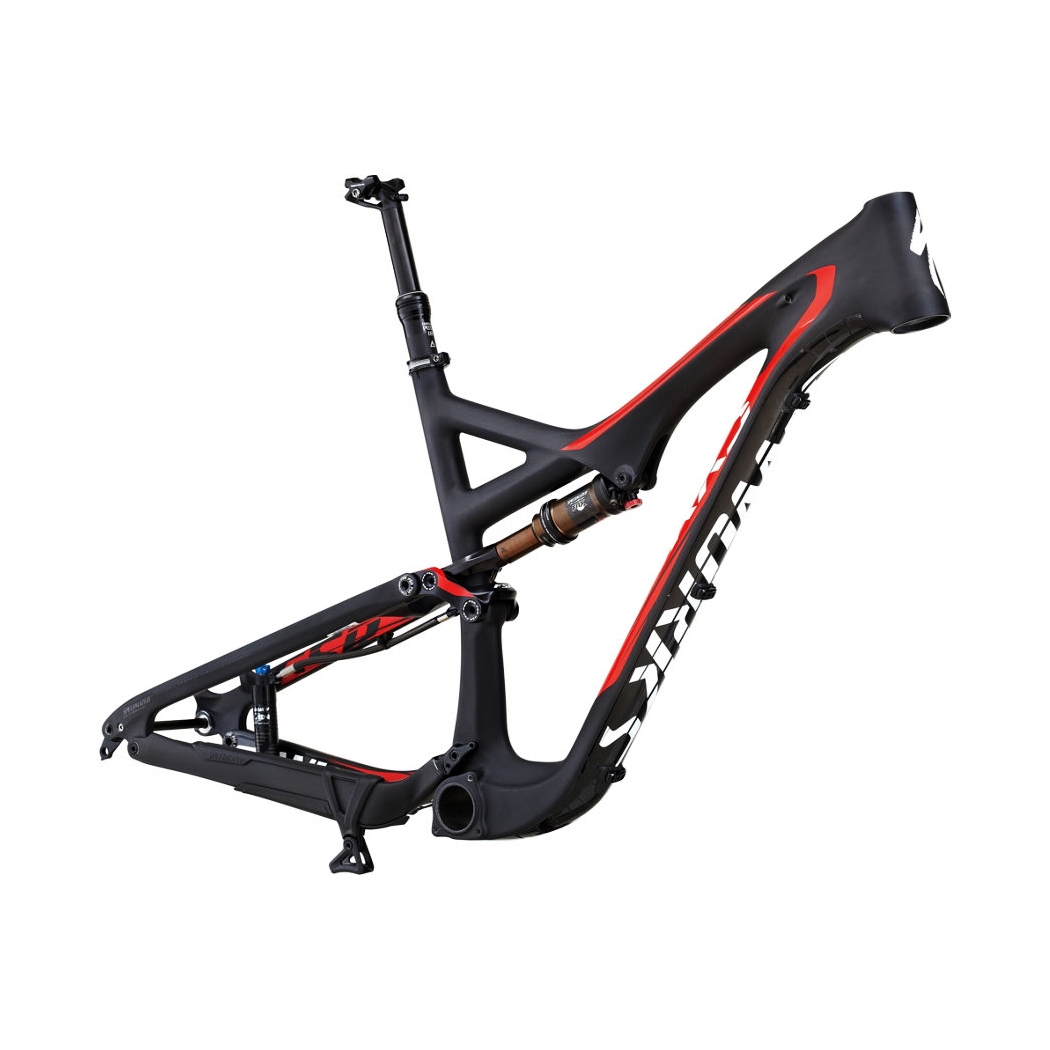

Specialized S-Works Stumpjumper FSR Carbon 29 Bara Ram (Frameset) Materialfärg/Röd/Vit
Artikelnummer.
77514-0002 (S)
Övriga art.nr.
77514-0003 (M)
77514-0004 (L)
77514-0005 (XL)
Cykelbeskrivning
Build the world's most advanced 29er trail bike to your liking with the 130mm-travel S-Works Stumpjumper FSR Carbon 29 frame equipped with a Fox/Specialized remote Brain shock with AUTOSAG and Kashima coating.
>Hot, new asymmetrical graphic on the FACT 11m full carbon FSR frame with dedicated 29er geometry, 130mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the finest 29er on the trails.
>FOX/Specialized Brain shock with ground-breaking AUTOSAG feature and micro-reservoir, buttery-smooth Kashima coating, Trail Tune inertia valve damping, Brain Fade, and adjustable rebound lets riders dial in the perfect combination of pedaling efficiency and bump compliance.
>All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas
Ram
FACT 11m carbon front triangle, 29" geometry, FACT IS construction, full FACT rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, Internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
SWAT (Storage, water, air and tools)
Bottle cage w/ SWAT Technology compatible (not included)
Stötdämpare bak
FOX/Specialized remote Brain w/ AUTOSAG, smaller Brain reservoir, Kashima coating, inertia valve w/ Trail Tune, BrainFade adjust, 195x48mm
Gaffel eller ev. stötdämpare fram
Styrlager
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Styrstolpe eller ev. styrstam
Styre
Handtag
Bromsar fram
Bromsar bak
Bromshandtag
Växelförare fram
Växelförare bak
Växelreglage
Kassett eller ev. drev bak
Kedja
Vevparti
Vevparti utväxling
Vevlager
Pedaler
Fälgar
Nav fram
Nav bak
Ekrar
Däck fram
Däck bak
Innerslang
Sadel
Sadelstolpe
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
Sadelstolpsklämma
7050 hard anodized alloy, single bolt, 34.9mm
Övrigt
Ramgeometri
Frame size
S M L XL.
Bottom bracket drop
34mm 34mm 34mm 34mm.
Bottom bracket height
338mm 338mm 338mm 338mm.
Chainstay length
450mm 450mm 450mm 450mm.
Crank length
170mm 175mm 175mm 175mm.
Handlebar width
720mm 720mm 720mm 720mm.
Head tube angle
69° 69° 69° 69°.
Head tube length
90mm 100mm 125mm 145mm.
Reach
399mm 427mm 445mm 466mm.
Seat tube angle
, Actual 69° 69.4° 69.8° 70.3°.
Seat tube angle
, Effective 74.5° 74.5° 74.5° 74.5°.
Seat tube length center to top
396mm 430mm 468mm 523mm.
Seatpost length
380mm 425mm 425mm 425mm.
Stack
605mm 614mm 638mm 656mm.
Standover height
750mm 741mm 750mm 764mm.
Stem length
60mm 75mm 90mm 90mm.
Top tube length
, Actual 576mm 603mm 632mm 660mm.
Top tube length
, Horizontal 567mm 596mm 622mm 648mm.
Wheel base
1117mm 1147mm 1175mm 1203mm.
