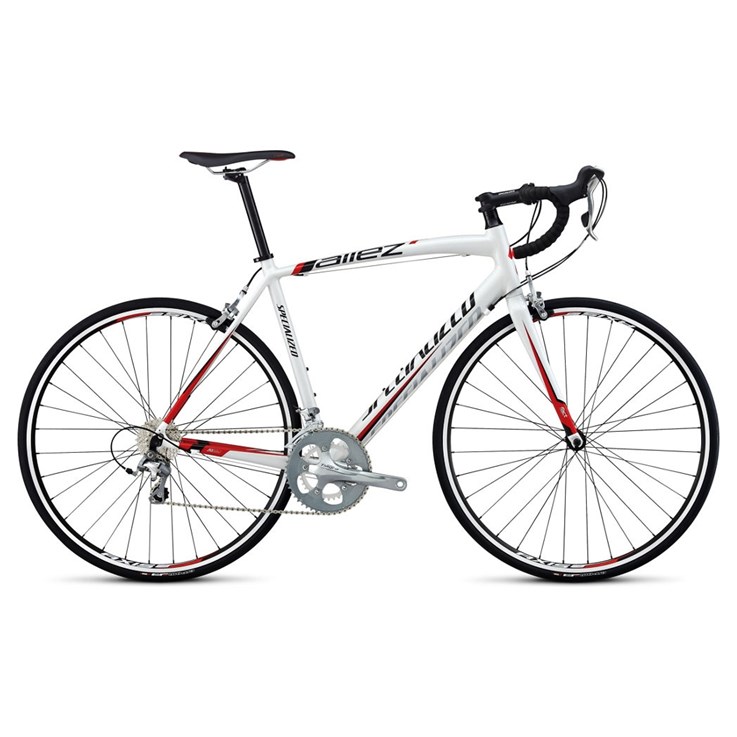

Specialized Allez Elite C2 INT Metallicvit/Röd/Svart

Cykelbeskrivning

The stiff, light, race-inspired Allez Elite offers great acceleration and handling—perfect for aspiring racers, or as a winter training bike for more accomplished veterans. Race-ready perforce comes built-in with the 10-speed Shimano Tiagra drivetrain and dependable wheelset.

>Double-butted, smooth-welded A1 Premium Aluminum frame offers quality, durability, and light weight while featuring our race proven geometry for precise handling.
>Specialized FACT carbon fork is ultra lightweight and provides precise steering through the tightest turns.
>Tough, durable, three-cross AXIS Classic wheelset.
>Shimano Tiagra compact crankset for reliable, smooth, and quick shifting.
>Shimano Tiagra shifters with STI technology for quick, crisp shifting whenever you need.
>Supportive Body Geometry Riva Road Gel saddle is the perfect combination of comfort and efficiency.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Specialized A1 Premium Aluminum, fully-manipulated tubing w/ smooth welds, 1-1/8" lower bearing

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Specialized FACT carbon, aluminum steerer/crown, 1-1/8"

Styrlager

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers

Styrstolpe eller ev. styrstam

Specialized alloy, 4-bolt, 31.8mm clamp

Styre

Specialized Comp, shallow bend

Styrlinda

Specialized S-Wrap, w/ bar shapers

Bromsar fram

Shimano Tiagra

Bromsar bak

Shimano Tiagra

Bromshandtag

Shimano Tiagra

Växelförare fram

Shimano Tiagra

Växelförare bak

Shimano Tiagra, 10-speed

Växelreglage

Shimano Tiagra STI

Kassett eller ev. drev bak

Shimano Tiagra, 10-speed, 12-28

Kedja

KMC X10

Vevparti

Shimano Tiagra, compact

Vevparti utväxling

50/34

Vevlager

Shimano, outboard cartridge bearings

Pedaler

Nylon flat test ride, loose ball, w/ reflectors

Hjul fram

AXIS Classic

Hjul bak

AXIS Classic

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c

Däck bak

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c

Innerslang

Standard presta valve

Sadel

Body Geometry Riva Road Gel, 143mm

Sadelstolpe

Specialized Sport, alloy, 2-bolt, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm

Utrustning

Övrigt

Chainstay protector, derailleur hanger, clear coat, owner's manual

Ramgeometri

Frame size

490.0 520.0 540.0 560.0 580.0 610.0.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Fork rake

45mm 45mm 45mm 45mm 45mm 45mm.

Front to center

578mm 576mm 583mm 591mm 605mm 613mm.

Handle bar width

400mm 420mm 420mm 420mm 440mm 440mm.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74°.

Head tube length

100mm 120mm 145mm 170mm 205mm 230mm.

Reach

387mm 385mm 387mm 395mm 402mm 408mm.

Seat post length

300mm 300mm 350mm 350mm 350mm 350mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5°.

Seat tube length bottom bracket center to top

460mm 480mm 500mm 520mm 540mm 580mm.

Stack

505mm 523mm 547mm 574mm 606mm 631mm.

Stand over height

730mm 777mm 798mm 816mm 836mm 854mm.

Stem length

80mm 90mm 100mm 100mm 110mm 110mm.

Top tube length horizontal

522mm 537mm 548mm 565mm 582mm 600mm.

Trail

65mm 57mm 57mm 56mm 56mm 53mm.

Wheel base

972mm 970mm 978mm 986mm 1003mm 1013mm.
