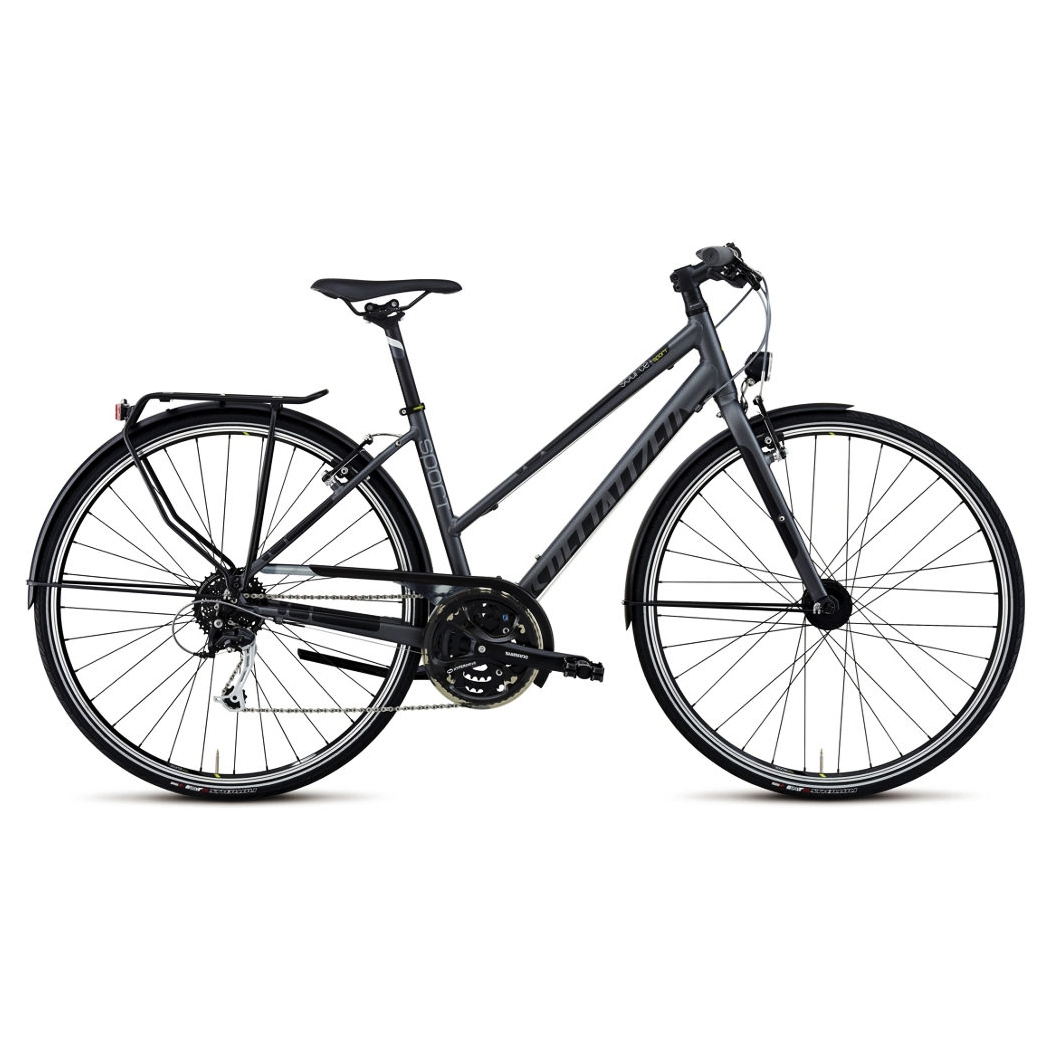

Specialized Source Sport Step-Through Grafitgrå/Svart/Hypergrön
Artikelnummer.
91014-6102 (S)
Övriga art.nr.
91014-6103 (M)
91014-6104 (L)
91014-6105 (XL)
Cykelbeskrivning
A true multi-tasker for anything from commuting to a weekend camping trek down the coast with loaded panniers, the Source Sport does it all anytime, anywhere with integrated lights, rack, and fenders, plus a step-through frame for added convenience.
>Light, A1 Premium Aluminum frame is built for high speed, low-fuss, and great versatility; with tapered head tube, rack/fender mounts, and wide tire clearance.
>Straight blade, alloy fork with fender mounts saves weight and adds durability to manage potholes and rough roads.
>BlackBelt protection and a grooved tread make the 32c Specialized Nimbus Sport tires with reflective strip perfect for city or open road use.
>Herrmans H-Diver Sensor headlights with sensor for automatic on/off function, with clip on reflector; plus B&M Toplight Mini taillight to keep you safe on the road, anytime. Both powered by Shimano dynamo hub.
>Super-light and compact Racktime hollow alloy rack with Racktime snap-in accessories system and hidden fender attachment; max load 25kg.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas
Ram
Specialized A1 Premium Aluminum, fully manipulated tubing, integrated headset, w/ fender/rack eyelets, center kickstand plate, Rollerbrake mounting points
SWAT (Storage, water, air and tools)
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
Aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets, internal light cable routing
Styrlager
1-1/8" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer, w/ 25mm of spacers
Styrstolpe eller ev. styrstam
Alloy, 10-degree rise, 25.4mm
Styre
Flat bar, alloy, 580mm/620mm wide, 9-degree backsweep, 25.4mm
Handtag
Body Geometry Targa, closed end
Bromsar fram
Alloy V-brake, linear pull
Bromsar bak
Alloy V-brake, linear pull
Bromshandtag
Alloy, linear pull
Växelförare fram
Shimano FD-M191, top-swing, dual-pull
Växelförare bak
Shimano Alivio
Växelreglage
Shimano SL-M310, 8-speed, Rapidfire
Kassett eller ev. drev bak
Shimano HG-31, 8-speed, 11-34
Kedja
KMC X8
Vevparti
Shimano FC-M361
Vevparti utväxling
48/38/28, w/ chainguard
Vevlager
Square taper, cartridge bearings, 68mm shell
Pedaler
Fälgar
Alloy double-wall, CNC machined sidewalls, 32h
Nav fram
Shimano DH-3N30QR dynamo, QR, 32h
Nav bak
Double-sealed, loose ball, dual-lock nuts, steel axle, QR, 32h
Ekrar
Stainless, 14g
Däck fram
Specialized Nimbus Sport, 60TPI, wire bead, reflective, 700x32c
Däck bak
Specialized Nimbus Sport, 60TPI, wire bead, reflective, 700x32c
Innerslang
Standard presta valve
Sadel
Body Geometry Riva Sport Women's, steel rails, 155mm
Sadelstolpe
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
Sadelstolpsklämma
Forged alloy, 31.8mm
Belysning fram
Hermanns H-Diver Sensor, LED, w/ clip-on reflector
Belysning bak
B&M Toplight Mini
Belysning strömkälla
Shimano DH-3N30QR, w/ QR, 32h
Kedjeskydd
Horn Catena 08, aluminum co-molded, w/ BB mount bracket
Stöd
Specialized aluminum
Pakethållare
Custom Racktime Light-it, hollow alloy, Snap-it accessory system, spring clip option, max. load 25kg
Skärmar
Specialized aluminum, w/ anodized struts
Lås
Ringklocka
Aluminum, mini
Övrigt
Ramgeometri
Frame size
SM MD LG.
Bottom bracket drop
70mm 70mm 70mm.
Chain stay length
445mm 445mm 445mm.
Crank length
170mm 170mm 170mm.
Fork rake
51mm 51mm 51mm.
Front to center
616mm 617mm 622mm.
Handle bar width
580mm 580mm 580mm.
Head tube angle
70° 71° 71°.
Head tube length
130mm 150mm 165mm.
Seat post length
300mm 350mm 350mm.
Seat tube angle
74.5° 74° 73°.
Seat tube length bottom bracket center to top
395mm 440mm 475mm.
Stand over height
619mm 628mm 628mm.
Stem length
75mm 90mm 100mm.
Top tube length horizontal
535mm 550mm 565mm.
Trail
73mm 67mm 67mm.
Wheel base
1052mm 1053mm 1057mm.
