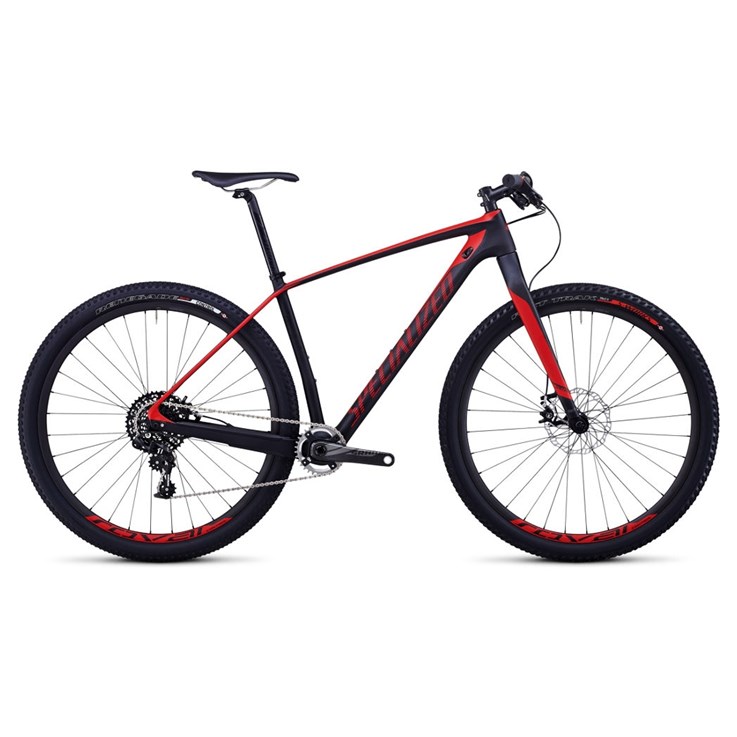

Specialized Stumpjumper Hardtail Expert Carbon WC 29 Materialfärg/Röd

Cykelbeskrivning

The Stumpjumper HT Expert Carbon is a purpose-built cross-country race machine with a 1x10 drivetrain and a mega-light Chisel carbon rigid fork for those looking to save every gram. Frame geometry is suspension-correct, so a front shock can be added anytime.

>All-new FACT IS 10m carbon frame with dedicated 29er geometry and full SWAT technology compatibility, internal cable routing, PF30 BB, and 142mm dropouts for the lightest race-ready design.
>The mega-light Chisel carbon rigid fork has a monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount for those rigid purists.
>Roval Control Carbon 29 142+ hookless carbon wheelset with durable DT Swiss internals, 15mm thru-axle, and stainless DT Swiss spokes brings carbon wheels to a whole new realm of fun.
>Dedicated to lightweight racing, the World Cup frame comes without a front derailleur. Shifting is handled beautifully by SRAM's new X01 11-speed shifting with an 11-42 cassette.
>Magura MTS hydraulic disc brakes with a carbon master cylinder and reach adjust provide consistent and reliable stopping power.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

FACT 10m carbon, 29" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142+ dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger

SWAT (Storage, water, air and tools)

Bottle cage w/ SWAT Technology compatible (not included)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Specialized Chisel, suspension corrected carbon rigid fork, monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount, OS28 end caps

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp

Styre

Specialized XC, flat bar, 2014 butted alloy, 700mm wide, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor

Bromsar bak

Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor

Bromshandtag

Magura MTS, carbon master cylinder, alloy lever blade, hollow lever pivot, reach adj.

Växelförare fram

Växelförare bak

SRAM XX01 Type 2, 11-speed, mid cage

Växelreglage

SRAM X01, 11-speed, trigger

Kassett eller ev. drev bak

SRAM X01, 11-speed, 10-42

Kedja

SRAM X01, 11-speed, hollow plates/pins, PowerLink

Vevparti

Custom SRAM carbon S-2200, 32T XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm

Vevparti utväxling

32T

Vevlager

SRAM PF30, OS press-in bearings, sealed cartridge

Pedaler

Fälgar

Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h

Nav fram

Roval Control Carbon 29, 15mm thru-axle, 32h

Nav bak

Roval Control Carbon 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h

Ekrar

DT Swiss Super Comp, 2.0/1.65/1.8 stainless

Däck fram

S-Works Fast Trak, 2Bliss Ready, 29x2.0", foldable aramid bead, 120 TPI

Däck bak

Specialized Renegade Control, 2Bliss Ready, 29x1.95", foldable aramid bead, 60 TPI

Innerslang

Sadel

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized 2014 butted alloy, single bolt setback, 27.2mm, S/M: 350mm, L/XL: 400mm

Sadelstolpsklämma

Specialized 7050 hard anodized alloy, single bolt, 31.8mm

Övrigt

Ramgeometri

Frame size

S M L XL.

Bottom bracket drop

61mm 61mm 61mm 61mm.

Bottom bracket height

310mm 310mm 310mm 310mm.

Chainstay length

430mm 430mm 430mm 430mm.

Crank length

170mm 175mm 175mm 175mm.

Ground to top

902mm 920mm 935mm 949mm.

Handlebar width

700mm 700mm 700mm 700mm.

Head tube angle

71° 71° 71° 71°.

Head tube height

90mm 100mm 115mm 130mm.

Reach

390mm 414mm 437mm 458mm.

Seat tube angle effective

73.5° 73.5° 73.5° 73.5°.

Seat tube length center to top

394mm 434mm 470mm 505mm.

Stack

592mm 610mm 625mm 639mm.

Standover height

760mm 799mm 826mm 849mm.

Stem length

75mm 90mm 105mm 105mm.

Top tube length actual

551mm 574mm 598mm 622mm.

Top tube length horizontal

565mm 593mm 620mm 643mm.

Wheel base

1047mm 1078mm 1105mm 1131mm.
