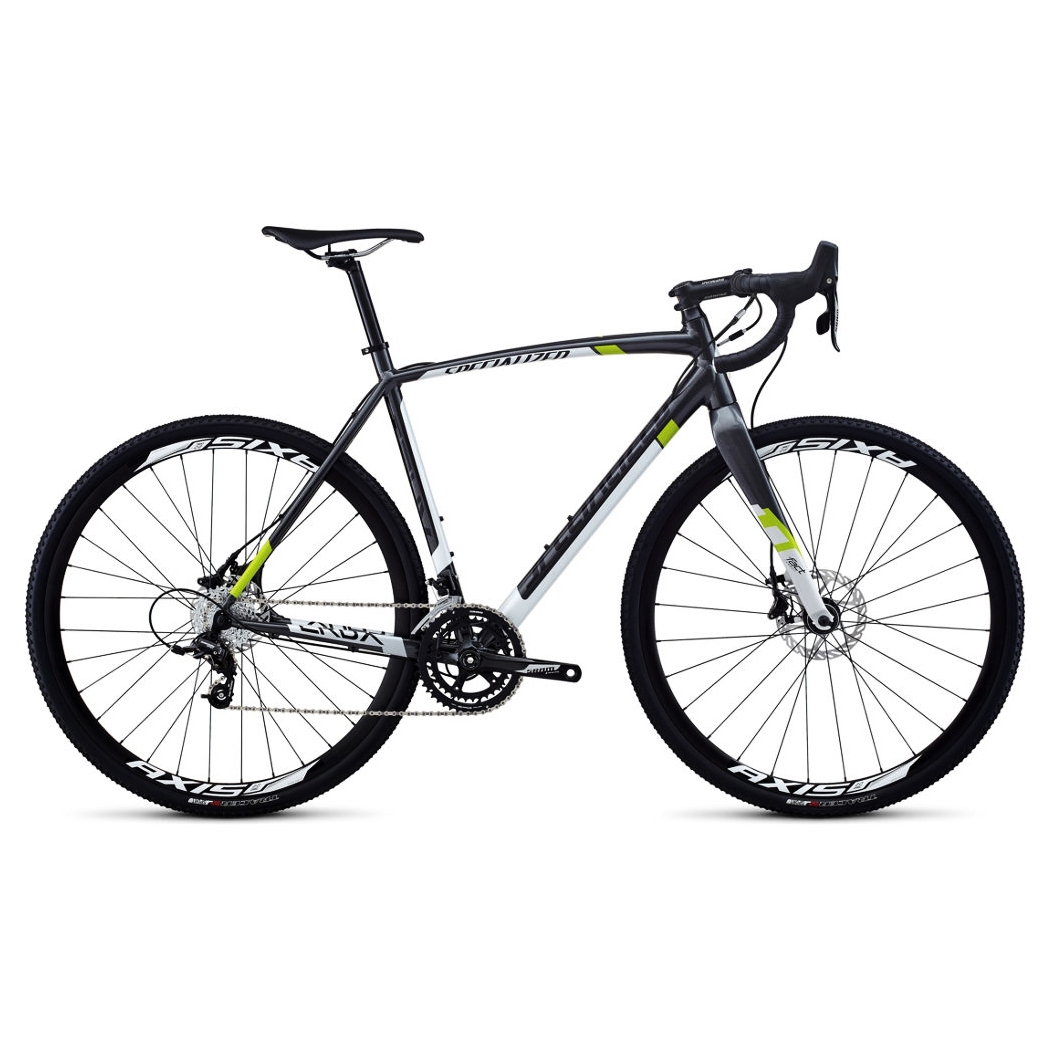

Specialized Crux Sport E5 Disc Apex Askgrå/Pearlvitvit/Hypergrön
Visa storleksrekommendation.
Artikelnummer.
91414-6049 (49)
Övriga art.nr.
91414-6052 (52)
91414-6054 (54)
91414-6056 (56)
91414-6058 (58)
91414-6061 (61)
Cykelbeskrivning
The CruX E5 Sport is a 'cross beast, with race-optimized geometry, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio to power through the nastiest courses. Reliable SRAM DoubleTap shifters with integrated hydraulic disc brakes round out an excellent 'cross setup for the most demanding racers.
>E5 Premium Aluminum disc frame designed for the demands of 'cross racing, with OSBB and carbon-like stiffness, strength, and compliance; paired with FACT carbon disc fork with tapered steerer.
>Specialized Tracer Sport tires provide the perfect tread to cover any course, with siped shoulder knobs to adapt to hard or loose terrain.
>SRAM alloy BB30 crankset has 'cross-specific gearing and provides consistent and reliable shifting in the nastiest conditions.
>SRAM full hydraulic disc brakes offer precise braking performance in the worst 'cross conditions, while 10-speed shifters with DoubleTap technology make for simple, intuitive shifting and reach adjustment for perfect fit.
>Specialized Body Geometry Phenom Comp saddle with hollow Cr-Mo rails enables riders to develop a position ideal for CX racing, while providing increased durability with scuff guards.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas
Ram
Specialized E5 Premium Aluminum, disc-specific, fully manipulated tubing, semi-compact race design, shaped toptube, 1-3/8" lower bearing, internal cable routing, integrated headset, OSBB
SWAT (Storage, water, air and tools)
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
Specialized FACT carbon, disc-specific monocoque fork, carbon steerer and crown for 1-3/8" lower bearing
Styrlager
1-1/8" upper and 1-3/8" lower integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm of spacers
Styrstolpe eller ev. styrstam
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm clamp
Styre
Specialized CX Comp Shallow Bend, 6061 alloy, 125mm drop, 70mm reach
Styrlinda
Specialized CX Pro Gel
Bromsar fram
SRAM hydraulic disc, 160mm 6-bolt rotor
Bromsar bak
SRAM hydraulic disc, 140mm 6-bolt rotor
Bromshandtag
Växelförare fram
SRAM Apex, braze-on, 10-speed
Växelförare bak
SRAM Apex, 10-speed
Växelreglage
SRAM, DoubleTap, 10-speed, integrated hydraulic brake system
Kassett eller ev. drev bak
SRAM PG 1030, 10-speed, 11-28
Kedja
SRAM PC 1031 w/ PowerLock
Vevparti
SRAM S-350, alloy, BB30
Vevparti utväxling
SRAM, 46/36
Vevlager
OS integrated, sealed bearings
Pedaler
Nylon flat test ride, loose ball, w/ reflectors
Hjul fram
AXIS 2.0 Disc
Hjul bak
AXIS 2.0 Disc
Fälgar
Nav fram
Nav bak
Ekrar
Däck fram
Specialized Tracer Sport, 60TPI, wire bead, 700x33c
Däck bak
Specialized Tracer Sport, 60TPI, wire bead, 700x33c
Innerslang
Standard, presta valve
Sadel
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Sadelstolpe
Specialized Sport, alloy, 27.2mm
Sadelstolpsklämma
Forged alloy, 32.6mm
Utrustning
Övrigt
Ramgeometri
Frame size
460.0 490.0 520.0 540.0 560.0 580.0 610.0.
Bottom bracket drop
71mm 71mm 71mm 69mm 69mm 67mm 67mm.
Chain stay length
425mm 425mm 425mm 425mm 425mm 425mm 425mm.
Crank length
170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm.
Fork rake
51mm 51mm 51mm 49mm 49mm 49mm 49mm.
Front to center
593mm 595mm 595mm 601mm 606mm 609mm 615mm.
Handle bar width
400mm 400mm 420mm 420mm 420mm 440mm 440mm.
Head tube angle
69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°.
Head tube length
100mm 115mm 125mm 140mm 155mm 170mm 190mm.
Reach
366mm 370mm 375mm 379mm 384mm 387mm 392mm.
Seat post length
300mm 300mm 300mm 350mm 350mm 350mm 350mm.
Seat tube angle
75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°.
Seat tube length bottom bracket center to top
460mm 490mm 520mm 540mm 560mm 580mm 610mm.
Stack
522mm 540mm 554mm 566mm 583mm 597mm 618mm.
Stand over height
725mm 761mm 773mm 790mm 807mm 825mm 849mm.
Stem length
75mm 75mm 90mm 100mm 100mm 110mm 110mm.
Top tube length horizontal
510mm 516mm 536mm 549mm 560mm 570mm 586mm.
Trail
78mm 72mm 65mm 67mm 64mm 61mm 57mm.
Wheel base
1008mm 1009mm 1009mm 1016mm 1022mm 1025mm 1031mm.
