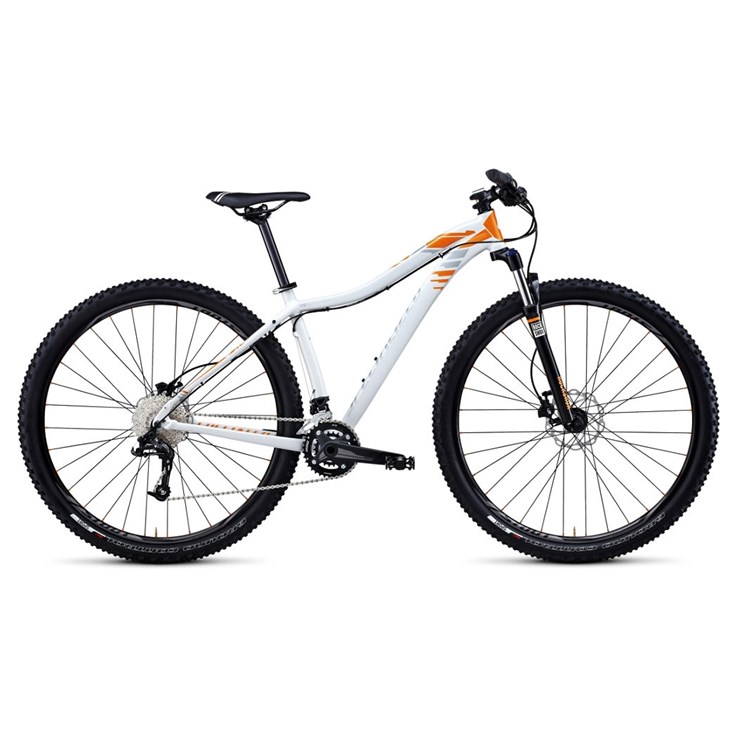

Specialized Jett 29 Pearlvit/Orange
Artikelnummer.
91814-7102 (S)
Övriga art.nr.
91814-7103 (M)
91814-7104 (L)
Cykelbeskrivning
Jett provides the smooth ride and improved handling of 29" wheels in an M4 aluminum XC trail bike designed just for women. The all-new Jett 29 Comp hardtail features Women's XC 29er Geometry, custom-tuned 80mm-travel RockShox 29 fork, and Tektro Draco hydraulic disc brakes with women's shorter reach levers for precise braking and durability.
>Fully butted, smooth-welded M4 Premium Aluminum frame with Women's XC 29er Geometry delivers a confident and lightweight ride, with integrated headset for precision handling.
>Custom-tuned 80mm-travel RockShox 29" fork with hydraulic damping, lockout, and women's spring weights delivers the supple ride qualities of a premium suspension fork.
>Lightweight and durable double-wall alloy rims are tough enough to handle the rough stuff.
>Custom Samox crankset with forged alloy arms and Octalink-splined BB interface means greater durability and better shifting performance.
>Tektro Draco dual-piston hydraulic disc brakes and women's shorter reach levers assure precise braking and durability.
>Women's Body Geometry Riva Comp saddle features a women's cutout and plush seating area for all-day riding comfort.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas
Ram
Specialized Jett M4 Premium Aluminum, Women's XC 29er Geometry and tubesets, fully butted w/ smooth welds, integrated headset, forged post-mount 160mm dropouts w/ replaceable hanger, disc only
SWAT (Storage, water, air and tools)
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
RockShox XC28 29, TurnKey hydraulic damping w/ lockout, coil spring w/ custom women's spring weights, 1-1/8" alloy steerer, mag disc only post-mount lower, 28mm steel stanchions, preload and rebound adj., 80mm travel, SM/15: 51mm offset, MD/17 and LG/19: 46mm offset
Styrlager
1-1/8" threadless, Campy style, integrated full cartridge bearings
Styrstolpe eller ev. styrstam
Specialized 3D forged alloy, 4-bolt clamp, 6-degree rise, 31.8mm
Styre
Specialized flat bar, double-butted 6061 alloy, 660mm wide, 10-degree backsweep, 4-degree upsweep, 31.8mm
Handtag
Specialized Women's Body Geometry XCT, Kraton w/ gel, closed end, lock-on
Bromsar fram
Tektro Draco 2, hydraulic disc, dual piston, Light Wave style rotor, 160mm rotor
Bromsar bak
Tektro Draco 2, hydraulic disc, dual piston, Light Wave style rotor, 160mm rotor
Bromshandtag
Tektro Draco 2, hydraulic lever, women's shorter reach
Växelförare fram
SRAM X5, 10-speed, 34.9mm clamp
Växelförare bak
SRAM X5, 10-speed
Växelreglage
Shimano Alivio, 9-speed Rapidfire Plus, w/ optical display
Kassett eller ev. drev bak
Shimano HG-20, 9-speed, 11-34
Kedja
KMC X9
Vevparti
Custom Samox, 9-speed
Vevparti utväxling
44/32/22, steel
Vevlager
Shimano, Octalink spline, cartridge bearings, 73mm shell
Pedaler
Composite platform, w/ reflectors, 9/16"
Fälgar
Stout Disc 29", alloy double-wall, 26mm, pin joint, 36h
Nav fram
Specialized disc, alloy, Hi Lo flange, cartridge bearings, steel axle, QR, 36h
Nav bak
Specialized disc, alloy, Hi Lo flange, cartridge bearings, steel axle, steel cassette body, QR, 36h
Ekrar
Stainless, 14g (2.0mm)
Däck fram
Specialized Ground Control Sport, 29x2.1", wire bead, 60TPI
Däck bak
Specialized Ground Control Sport, 29x2.1", wire bead, 60TPI
Innerslang
Standard presta valve
Sadel
Specialized Body Geometry Riva Comp Women's, hollow Cr-Mo rails, 155mm
Sadelstolpe
Alloy, 2-bolt, 12.5mm offset, 27.2mm
Sadelstolpsklämma
Alloy, 31.8mm, QR, brass washer
Övrigt
Ramgeometri
Frame size
15.0 17.0 19.0.
Bottom bracket drop
63.5mm 63.5mm 63.5mm.
Bottom bracket height
305mm 305mm 305mm.
Chainstay length
442mm 442mm 442mm.
Crank length
170mm 170mm 170mm.
Handlebar width
660mm 660mm 660mm.
Head tube angle
70.5° 71° 71°.
Head tube length
90mm 100mm 115mm.
Reach
377mm 396mm 412mm.
Seat tube angle actual
71° 71° 71°.
Seat tube angle effective
73.5° 73.5° 73.5°.
Seat tube length center to top
381mm 431.8mm 482.6mm.
Seatpost length
350mm 350mm 400mm.
Stack
590mm 604mm 618mm.
Standover height
710mm 741mm 775mm.
Stem length
60mm 75mm 75mm.
Top tube length actual
530mm 549mm 570mm.
Top tube length horizontal
552mm 575mm 595mm.
Wheel base
1056mm 1068mm 1089mm.
