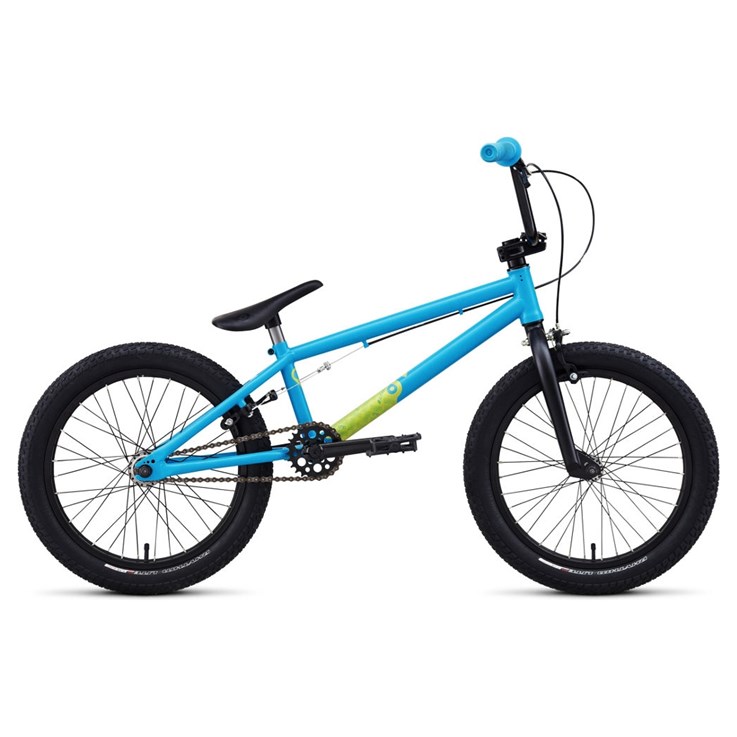

Specialized P.18 AM INT Cyanblå/Limegrön/Grön

Cykelbeskrivning

>Hi-Ten frame with 18.5" top tube features a MID BB, small dropouts, and dialed geos for dirt, park, or street.
>P. Series fork is built to handle the abuses of everyday riding for many years.
>Lightweight 36-hole wheels with 3/8" axle front hub and 14mm rear axle and cassette with 9T driver.
>Specialized Rhythm Lite tires use a low-profile knob height for smooth-rolling performance; Flak Jacket for pinch flat protection.
>BMX-style, 3-piece tubular Cr-Mo crankset with cartridge-bearing MID BB is strong and light to go big with confidence; singlespeed 25t chainring resists bending and delivers the clearance you need.
>Big 6-1/2" x 25" Hi-Ten P.Series BMX handlebar gives the new rider more leverage and control.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Hi-Ten plain gauge steel, 18.5" top tube, externally relieved MID BB shell, integrated headtube, seatstay-mounted U-brake bosses, 5mm thick dropouts for 14mm axle

Gaffel eller ev. stötdämpare fram

18" BMX, 2mm thick Hi-Ten, tapered blades, 1-1/8" threadless, 5mm Cr-Mo dropouts for 3/8" axle

Styrlager

Integrated 1-1/8" threadless, Campy style, full cartridge bearings

Styrstolpe eller ev. styrstam

BMX stem, die-cast alloy, 40mm, 22.2mm clamp

Styre

Specialized P.Series BMX bar, Hi-Ten steel, 640mm wide, 11-degree backsweep, 2-degree upsweep, 168mm rise, 22.2mm

Handtag

P.Grip BMX, w/ flange, Kraton, end plugs, 150mm

Bromsar fram

Tektro, U-brake, single bushing, coil spring, 15mm offset arms

Bromsar bak

Tektro, U-brake, melt-forged, single bushing, coil spring, 15mm offset arms

Bromshandtag

Tektro XL-320, U-brake lever, 15mm cable pull FREEWHEEL 1 pc. CNC, 9T driver

Kedja

KMC Z-510H

Vevparti

P.Crank, 3pc. Cr-Mo, tubular arms, 8-spline, 140mm

Vevparti utväxling

25t

Vevlager

MID BB, 2x sealed cartridge bearings w/ 19mm, 8-spline spindle

Pedaler

Plastic platform w/ molded pins, loose ball, 9/16"

Fälgar

P.Series 18", alloy single-wall, center void, 32mm, 36h

Nav fram

P.Series BMX, alloy, loose ball, solid axle, 36h

Nav bak

P.Series BMX, alloy, loose ball, hollow axle, 36h

Ekrar

Stainless, 14g (2.0mm)

Däck fram

Specialized Rhythm Lite Sport, 30TPI, wire bead, Flak Jacket protection, 18x2.0"

Däck bak

Specialized Rhythm Lite Sport, 30TPI, wire bead, Flak Jacket protection, 18x2.0"

Innerslang

Standard Schrader valve

Sadel

P.Seat, 1pc. w/ co-molded alloy 25.4mm seatpost

Sadelstolpe

Alloy, 25.4mm, integrated w/ saddle

Sadelstolpsklämma

Integrated Cr-Mo bolt w/ nylock nut

Övrigt

Chainguard, reflectors, owner's manual

Ramgeometri

Frame size

18.0.

Bottom bracket drop

-31mm.

Bottom bracket height

263mm.

Chainstay length

308mm.

Crank length

152mm.

Fork length

284mm.

Fork offset

31mm.

Handlebar width

640mm.

Head tube angle

74.5°.

Head tube length

100mm.

Reach

403mm.

Seat tube angle

72°.

Seat tube length center to top

207mm.

Seatpost length

200mm.

Stack

331mm.

Standover height

508mm.

Stem length

40mm.

Top tube length actual

459mm.

Wheel base

816mm.
