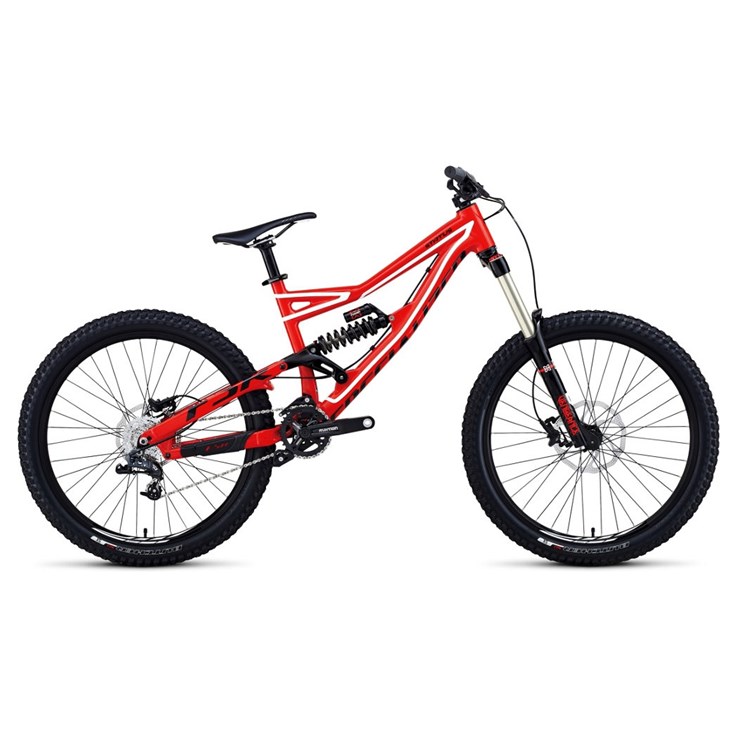

Specialized Status FSR I Röd/Vit/Svart

Cykelbeskrivning

The 200mm Status FSR I features FSR suspension, plus a custom X-Fusion Vector R shock and 170mm-travel X-Fusion Vengeance coil-sprung fork.

>M4 alloy, 200mm-travel FSR frame with 1.5" head tube, full-cartridge bearing pivots and ISCG mounts makes the Status ready to handle the most technical descents.
>Custom X-Fusion Vector R coil rear shock with adjustable rebound works with the bike's FSR design to keep the rear wheel planted for aggressive riding.
>X-Fusion Vengeance coil-sprung fork with tapered alloy steerer tube, 170mm of travel, adjustable rebound control and 20mm thru-axle makes for a plush fork that tracks through technical terrain.
>P.Disc rim is 32mm-wide and lace to Specialized Hi Lo disc hubs with 36 stainless spokes to a 20mm thru-axle in the front, robust to handle technical downhill terrain.
>Specialized Butcher SX 2.3" dual compound tires for premium traction on challenging terrain.
>The 750mm-wide Specialized DH low-rise handlebar is super wide to control the toughest conditions.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

M4 hydroformed tubing, 1.5" forged headtube, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 200mm travel

SWAT (Storage, water, air and tools)

Stötdämpare bak

Custom X-Fusion Vector R, coil over w/ piggy back, adj. rebound, 8.5x2.5", spring rate XS: 350, S: 400, M: 450, L: 500

Gaffel eller ev. stötdämpare fram

X-Fusion Vengeance R, coil spring, tapered alloy steerer, reb adj., 20mm thru-axle, 170mm travel

Styrlager

Semi-integrated alloy cups for 1-1/2" headtube and 1-1/8" steerer, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized P.Series MTB, forged alloy, 4-bolt, 40mm length, 31.8mm clamp

Styre

Specialized DH, low-rise, 6061 alloy, 780mm wide, 9-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness

Bromsar fram

Avid Elixir 1, metallic pad, 200mm rotor

Bromsar bak

Avid Elixir 1, metallic pad, 180mm rotor

Bromshandtag

Avid Elixir 1 R, hydraulic disc, tool-less reach adj.

Växelförare fram

Växelförare bak

SRAM X7, 9-speed, short cage

Växelreglage

SRAM X4, 8-speed, trigger

Kassett eller ev. drev bak

SRAM PG-830, 8-speed, 11-32

Kedja

KMC X-8, 8-speed, reusable Missing Link

Vevparti

Truvativ Ruktion, 165mm, w/ Status guide

Vevparti utväxling

34T steel, 4-bolt, compact 104mm pattern

Vevlager

Truvativ Howitzer XR, oversize sealed outboard cartridge bearings, 73mm shell

Pedaler

Alloy platform, 9/16"

Fälgar

P.Disc, 32mm wide, 36h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h

Nav bak

Specialized disc, bolt-on 135mm, 36h

Ekrar

Stainless, 14g

Däck fram

Specialized Butcher SX, 2Bliss Ready, 26x2.3", foldable aramid bead, dual compound, 60TPI

Däck bak

Specialized Butcher SX, 2Bliss Ready, 26x2.3", aramid bead, dual compound, 60 TPI

Innerslang

Standard Schrader valve

Sadel

Specialized DH, 8mm steel rails

Sadelstolpe

Specialized 6061 alloy, 2-bolt micro-adjust, no offset, 30.9mm, 300mm

Sadelstolpsklämma

Specialized 7050 hard anodized alloy, w/ QR, 34.9mm, black

Övrigt

Ramgeometri

Frame size

S M L.

Bottom bracket drop

-14.5mm -14.5mm -14.5mm.

Bottom bracket height

355mm 355mm 355mm.

Chainstay length

426mm 426mm 426mm.

Crank length

165mm 165mm 165mm.

Front center

739mm 764mm 789mm.

Handlebar width

750mm 750mm 750mm.

Head tube angle

64.5° 64.5° 64.5°.

Head tube length

120mm 120mm 120mm.

Reach

420mm 425mm 450mm.

Seat tube angle

, Actual 71° 71° 71°.

Seat tube angle

, Effective 75° 75° 75°.

Seat tube length center to top

394mm 419mm 458mm.

Seatpost length

300mm 300mm 300mm.

Stack

646mm 646mm 646mm.

Standover height

746mm 743mm 759mm.

Stem length

45mm 45mm 45mm.

Top tube length

, Actual 531mm 553mm 574mm.

Top tube length

, Horizontal 558mm 583mm 608mm.

Wheel base

1164mm 1189mm 1214mm.
