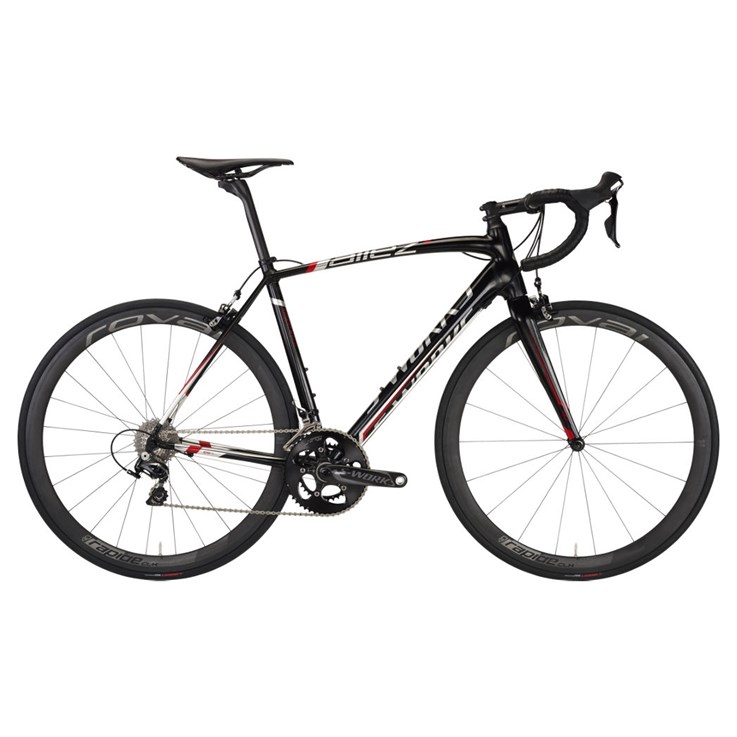

Specialized S-Works Allez M2 Svart/Silver/Röd

Cykelbeskrivning

With an S-Works level frame, Smartweld technology and SL Hydroforming, full Shimano Dura Ace drivetrain, Roval CLX wheelset, and full monocoque Tarmac carbon fork, the S-Works Allez is ready for any road race or crit along. It'll also make your toughest weekend rides your fastest weekend rides.

>Race-inspired, smooth-welded, fully-manipulated E5 Premium Aluminum frame with S-Works Smartweld Technology and tapered headtube is light and fast.
>S-Works Tarmac full monocoque FACT carbon fork with tapered steerer is super light with great torsional rigidity for high-speed handling.
>Rapide CLX 40 wheels are incredibly light and stiff while providing an aero advantage.
>S-Works Tarmac oversized carbon bar is extremely stiff and light for serious performance.
>Shimano Dura-Ace brakes provide superior stopping power and confidence at top speed.
>Be ready for any attack with lightning quick shifting from Shimano Dura-Ace shift levers.
>Minimalist, high-performance Body Geometry Toupe Pro saddle with carbon rails, flat profile, and generous padding for long rides and explosive efforts.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Specialized S-Works Smartweld E5 alloy, hydroformed aluminum tubing, 1-3/8" lower bearing, OSBB

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Specialized S-Works Tarmac, FACT carbon full monocoque, carbon steerer/crown for 1-3/8" lower bearing

Styrlager

1-1/8" upper and 1-3/8" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer, w/ 20mm of carbon spacers

Styrstolpe eller ev. styrstam

Specialized S-Works SL, 4-bolt, 31.8mm clamp

Styre

Specialized S-Works Tarmac, FACT carbon, short drop

Styrlinda

Specialized S-Wrap microfiber, shockproof

Bromsar fram

Shimano Dura-Ace 9000

Bromsar bak

Shimano Dura-Ace 9000

Bromshandtag

Shimano Dura-Ace 9000

Växelförare fram

Shimano Dura-Ace 9000

Växelförare bak

Shimano Dura-Ace 9000

Växelreglage

Shimano Dura-Ace 9000 STI

Kassett eller ev. drev bak

Shimano Dura-Ace 9000, 11-speed

Kedja

KMC X11 SL

Vevparti

Specialized FACT carbon, SRAM RED rings

Vevparti utväxling

52/36

Vevlager

BB30, ceramic bearings

Pedaler

Nylon flat test ride, loose ball, w/ reflectors

Hjul fram

Roval Rapide CLX 40

Hjul bak

Roval Rapide CLX 40

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Specialized S-Works Turbo, 127TPI, aramid bead, BlackBelt protection, 700x24c

Däck bak

Specialized S-Works Turbo, 127TPI, aramid bead, BlackBelt protection, 700x24c

Innerslang

Standard presta valve, long stem

Sadel

Body Geometry Toupe Pro, FACT carbon rails, 143mm

Sadelstolpe

Specialized S-Works, FACT carbon, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm

Utrustning

Övrigt

Chainstay protector, derailleur hanger, clear coat, owner's manual

Ramgeometri

Frame size

490.0 520.0 540.0 560.0 580.0 610.0.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Fork rake

45mm 45mm 45mm 43mm 43mm 43mm.

Front to center

576mm 576mm 583mm 591mm 605mm 613mm.

Handle bar width

420mm 420mm 420mm 420mm 440mm 440mm.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74°.

Head tube length

120mm 120mm 145mm 170mm 205mm 230mm.

Reach

380mm 385mm 387mm 395mm 402mm 408mm.

Seat post length

300mm 300mm 350mm 350mm 350mm 350mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5°.

Seat tube length bottom bracket center to top

460mm 480mm 500mm 520mm 540mm 580mm.

Stack

523mm 523mm 547mm 574mm 606mm 631mm.

Stand over height

741mm 777mm 798mm 816mm 836mm 854mm.

Stem length

90mm 90mm 100mm 100mm 110mm 110mm.

Top tube length horizontal

518mm 537mm 548mm 565mm 582mm 600mm.

Trail

62mm 57mm 57mm 56mm 56mm 53mm.

Wheel base

970mm 970mm 978mm 986mm 1003mm 1013mm.
