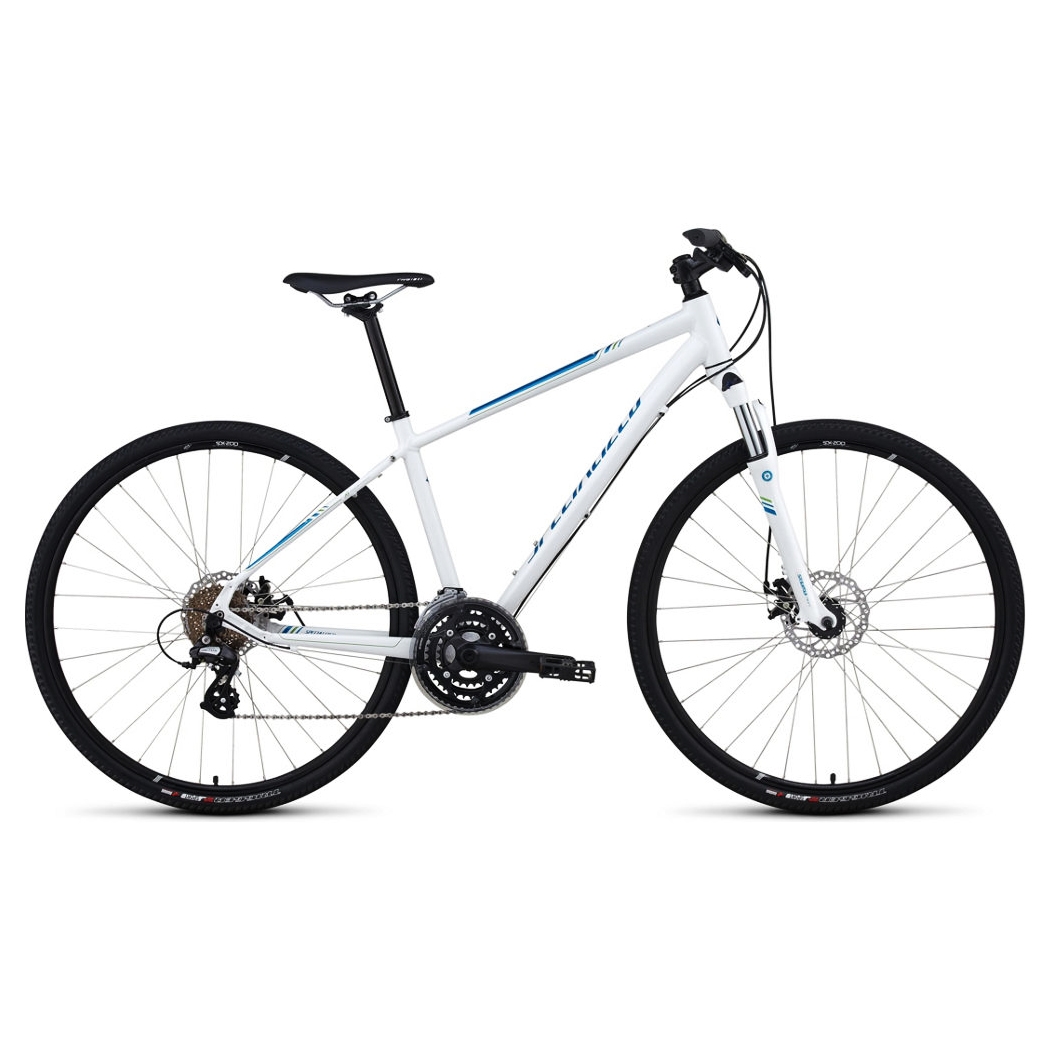

Specialized Ariel Disc INT Vit/Blå/Grön
Artikelnummer.
D2E2-8202 (S)
Övriga art.nr.
D2E2-8203 (M)
D2E2-8204 (L)
Cykelbeskrivning
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Disc features a A1 Premium Aluminum frame with Women's Fitness Geometry, Tektro Novela disc brakes, and a 60mm-travel SR Suntour fork for a plush ride.
>A1 Premium Aluminum frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility.
>SR Suntour 60mm-travel custom women's coil sprung fork with lockout and alloy lowers provides a capable and plush ride.
>SR Suntour 8-speed triple crankset gives you all the gears she needs for varied terrain, with a chainguard for added protection.
>Tektro Novela mechanical disc brakes for solid braking and easy maintenance under any conditions.
>Women's Body Geometry Riva saddle features a women's cutout and plush seating area for all-day riding comfort.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas
Ram
Specialized A1 Premium Aluminum, Women's Fitness Geometry and tubesets, double-butted, w/ fender/rack braze-ons, forged dropouts, kickstand mount
SWAT (Storage, water, air and tools)
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
SR Suntour NEXi Coil, custom women's coil spring, aluminum lower, custom integrated crown, mechanical lockout, 60mm travel
Styrlager
1-1/8" FSA Ahead, semi-integrated, 8mm cone spacer
Styrstolpe eller ev. styrstam
Melt-forged alloy, 4-bolt, 10-degree rise, 25.4mm clamp
Styre
Specialized XC riser bar, alloy, 8-degree backsweep, 25mm rise, 25.4mm
Handtag
Specialized Body Geometry Women's XCT, Kraton w/ gel, lock-on
Bromsar fram
Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
Bromsar bak
Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
Bromshandtag
Tektro, mechanical lever
Växelförare fram
Shimano FDM-191, top-swing, dual-pull
Växelförare bak
Shimano Altus, 8-speed
Växelreglage
Shimano SL-M310, Rapidfire
Kassett eller ev. drev bak
Shimano HG-31, 8-speed, 11-32
Kedja
KMC X8
Vevparti
SR Suntour XCT, 8-speed, square taper spindle, replaceable outer ring, w/ chainguard
Vevparti utväxling
48/38/28, w/ chainguard
Vevlager
Cartridge bearings, square spindle, capless bolts
Pedaler
Composite plastic body, loose ball, w/ reflectors
Fälgar
Disc, alloy double-wall, pin joint, 32h
Nav fram
Disc, double-sealed, ground race, dual-lock nuts w/ 19mm contact side, 5mm QR, round disc mount
Nav bak
Disc, double-sealed, loose ball, dual-lock nuts w/ 19mm contact side, QR, 32h
Ekrar
Stainless, 14g (2.0mm)
Däck fram
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
Däck bak
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
Innerslang
Standard Schrader valve
Sadel
Specialized Body Geometry Riva Women's, steel rails, 155mm
Sadelstolpe
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
Sadelstolpsklämma
Alloy, 31.8mm, QR, nylon washer
Övrigt
Ramgeometri
Frame size
XS SM MD LG XL.
Bottom bracket drop
60mm 60mm 60mm 60mm 60mm.
Chain stay length
445mm 445mm 445mm 445mm 445mm.
Crank length
170mm 170mm 175mm 175mm 175mm.
Fork rake
38mm 38mm 38mm 38mm 38mm.
Front to center
616mm 629mm 643mm 658mm 675mm.
Handle bar width
660mm 660mm 660mm 660mm 660mm.
Head tube angle
70° 70° 70° 70° 70°.
Head tube length
85mm 105mm 120mm 135mm 160mm.
Seat post length
300mm 350mm 350mm 350mm 350mm.
Seat tube angle
73° 73° 73° 73° 73°.
Seat tube length bottom bracket center to top
345mm 395mm 440mm 485mm 550mm.
Stand over height
699mm 738mm 771mm 804mm 849mm.
Stem length
60mm 70mm 80mm 80mm 90mm.
Top tube length horizontal
560mm 572mm 585mm 600mm 615mm.
Trail
91mm 91mm 91mm 91mm 91mm.
Wheel base
1054mm 1067mm 1081mm 1097mm 1113mm.
