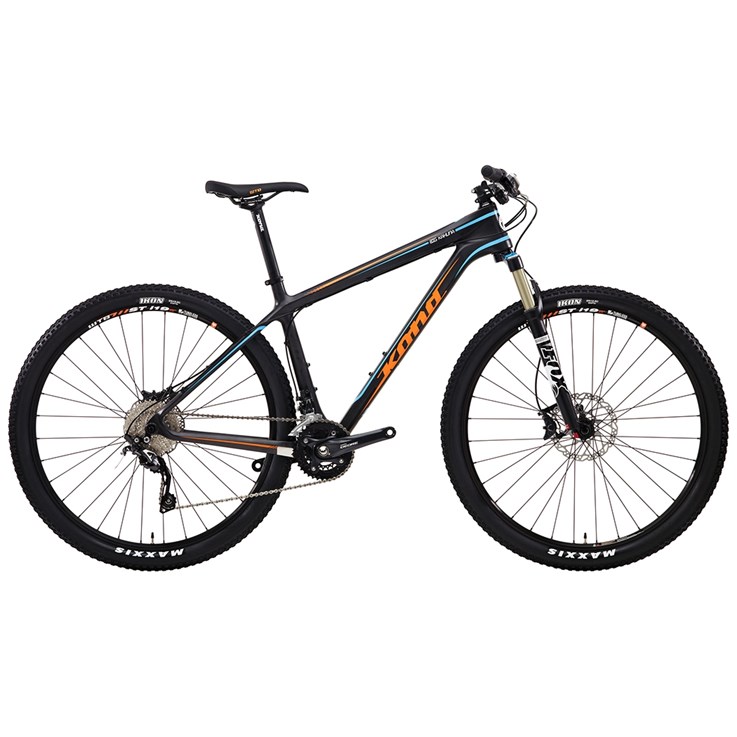

Kona Big Kahuna Matt Unidirectional Carbon with White, Orange and Cyan

A long-time staple in our Race Light platform, the 29-inch wheel Big Kahuna gets a seriously significant jump this year, moving up to a featherlight, wicked-quick Kona Carbon Race Light monocoque frameset. The geometry is pure Kona XC'short chainstays for responsive handling, stiff design for effective power transfer, and progressive angles that perfectly balance ride comfort on everything from hard climbs to technical singletrack and all the long, hard miles of sweet singletrack in between. With a component grouping designed specifically for the XC racer on a budget, the Big Kahuna is our most affordable carbon-fiber XC race bike.

Vikt 11,48 Kg. (Avser storlek 17", 53 Cm eller M)
Ram Kona Race Light Carbon
Storlekar 16", 18", 19", 20", 22"
Stötdämpare bak n/a
Gaffel eller ev. stötdämpare fram Fox 32 Float Evolution CTD 100mm Tapered QR15 w/Remote Lockout
Vevparti Shimano Deore
Vevparti utväxling 24/38t
Vevlager Shimano Deore
Pedaler n/a
Kedja KMC X10
Kassett eller ev. drev bak Shimano Deore 11-36t 10 spd
KedjaGUIDE n/a
Växelförare fram Shimano Deore
Bromsar bak Shimano SLX Shadow
Växelreglage Shimano SLX
Bromsar Shimano SLX
Bromsskiva fram Shimano 180mm (centerlock)
Bromsskiva bak Shimano 160mm (centerlock)
Bromshandtag Shimano SLX
Styrlager FSA No.57B-1
Styre Kona XC/BC Riser
Styrstolpe eller ev. styrstam Kona XC/Road Deluxe
Sadelstolpe Kona Double Clamp w/offset
Sadelstolpsklämma Kona Clamp
Handtag Kona Race Light LOG
Sadel WTB Volt Comp
Nav fram Shimano Deore QR15
Nav bak Shimano Deore 142x12mm
Ekrar Stainless 15g
Fälgar WTB ST i19 TCS
Däck fram Maxxis Ikon 29x2.2" Folding
Däck bak Maxxis Ikon 29x2.2" Folding
Färg Matt UD Carbon w/White, Orange & Cyan
Övrigt n/a

Size 16 18 19 20 22
1 Reach 394 415 414 423 442
2 Stack 597 629 638 647 671
3 HT Angle 68.5 70 70 70 70
4 HT Length 110 120 130 140 160
5 ST Angle 74 74 74 74 74
6 ST Length 406 457 483 508 559
7 CS Length 440 440 440 440 440
8 BB Drop 58 53 53 53 53
9 Wheelbase 1100 1111 1113 1126 1141
10 Front Center 666 676 678 691 706
11 Fork Length 506 506 506 506 506
12 Fork Offset 47 47 47 47 47
13 TT Length 572 597 610 622 648
14 Standover 778 814 829 846 881
