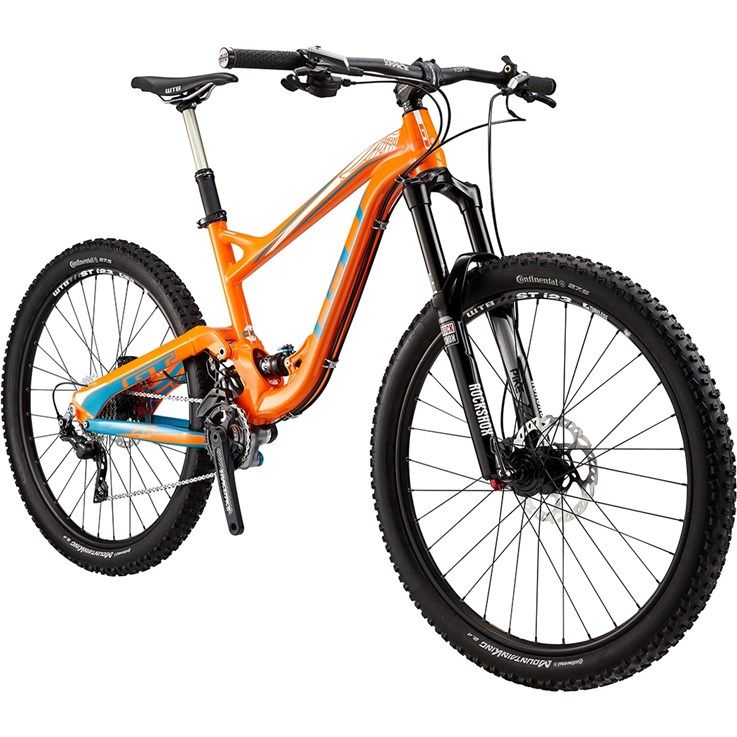

GT Sensor X Pro Orange/Blue
Artikelnummer.
GM0363SM02 (S)
Övriga art.nr.
GM0363MD02 (M)
GM0363LG02 (L)
For you, every time you head for the mountains is another chance to test your limits. To push hard on the uphills so you can charge back down and do it all over again. The Sensor X is the bike for you, with long travel and a frame built to handle your aggressive style, it’s an indispensable tool for taking on the trails.
>27.5" wheel specific 6069 Hydroformed aluminum frame with 130mm travel. Features Independent Drivetrain® Angle Optimized Suspension System with 12x142mm Maxle thru-axle
>Fox Float CTD Boost Valve rear shock with lockout
>150mm travel RockShox Pike RC 27.5 Solo Air with lockout and tapered alloy steerer
>Shimano XT Shadow+ 10 spd rear derailleur with RaceFace Evolve crankset and 32T narrow-wide ring
>Continental Mountain King tires for great balance between rolling and all around traction
>Shimano SLX hydraulic disc brakes with 180mm centerlock rotors
Cykelspecifikationer
Storlek S, M, L
Färg Gloss Orange
Ram COR Trail Philosophy, 6069 Hydroformed Aluminum Frame, 130mm Travel Independent Drivetrain © 27.5 AOS Suspension System w/Forged Linkage, Pivots,1 1/8"-1 1/2" Integrated Head Tube, and 12 x 142mm Maxle Dropouts
Gaffel eller ev. stötdämpare fram RockShox Pike RC 27.5, 150mm Travel, 15mm Maxle, Lockout & Compression Adjust, Tapered Alloy Steerer
Stötdämpare bak Fox Racing Shox Float CTD BV Adjust, 7.25"x1.75" Air Shock, w/ Rebound Adjust & Lockout
Kedja KMC X10
Vevparti RaceFace Evolve, 32T Narrow Wide
Vevlager RaceFace
Pedaler N/A
Växelförare fram e.thirteen XCX+ High Direct Mount
Växelförare bak Shimano Deore XT Shadow Plus, Direct Mount, RD-M786-D, GS Cage
Växelhandtag Shimano SLX, SL-M670, Rapid Fire, Right Side Only
Kassett eller ev. drev bak Shimano CS-HG81-10, 10-Speed, 11-36T
Hjul WTB STi23, UST Tubeless, 32H
Däck Continental Mountain King 27.5x2.4", Folding
Nav fram Shimano HB-M678, Deore, for Center Lock Disc Rotor, 32H, for 15mm thru type axle (w/o axle), Old: 100mm, w/Lock Ring
Nav bak Shimano Freehub, FH-M678, Deore, for Center Lock Disc, 8/9/10-Speed, 32H, for 12mm thru type axle (w/o axle), Old: 142mm, w/o Rotor Mount Cover, Shimano Logo, Black
Ekrar 14/15G Stainless, Black
Ekernipplar Brass
Bromshandtag Shimano SLX, BL-M675
Styre RaceFace Respond, 785mm Width, 1/2" Rise
Styrstam RaceFace Respond, 1-1/8" Threadless, 31.8mm Clamp, 45mm
Handtag eller ev. styrlinda GT Statement Single Lock-on Grips
Styrlager Orbit C-40-ACB
Sadel WTB Silverado Race SL, Cromoly Rail
Sadelstolpe KS LEV Integra, 34.9mm, w/ Remote
Sadelstolpsklämma All Terra Alloy QR, 38.1mm
Ramgeometri
Size S M L
Seat tube length(mm) 406 426 476
Horizontal top tube length(mm) 576 604 633
Stand over height(mm) 745 732 759
Head angle(°) 66.3 67.3 67.3
Seat angle(°) 72.3 72.3 72.3
Chain stay length(mm) 440 440 440
Head tube length(mm) 92 108 124
Bottom bracket height(mm) 344 344 344
Fork offset rake(mm) 42 42 42
Wheel base(mm) 1127 1145 1175
Bottom bracket drop(mm) 9 9 9
Front center(mm) 687 705 735
Beskrivning av utvalda cykelegenskaper
27.5
Angled Optimized Suspension
