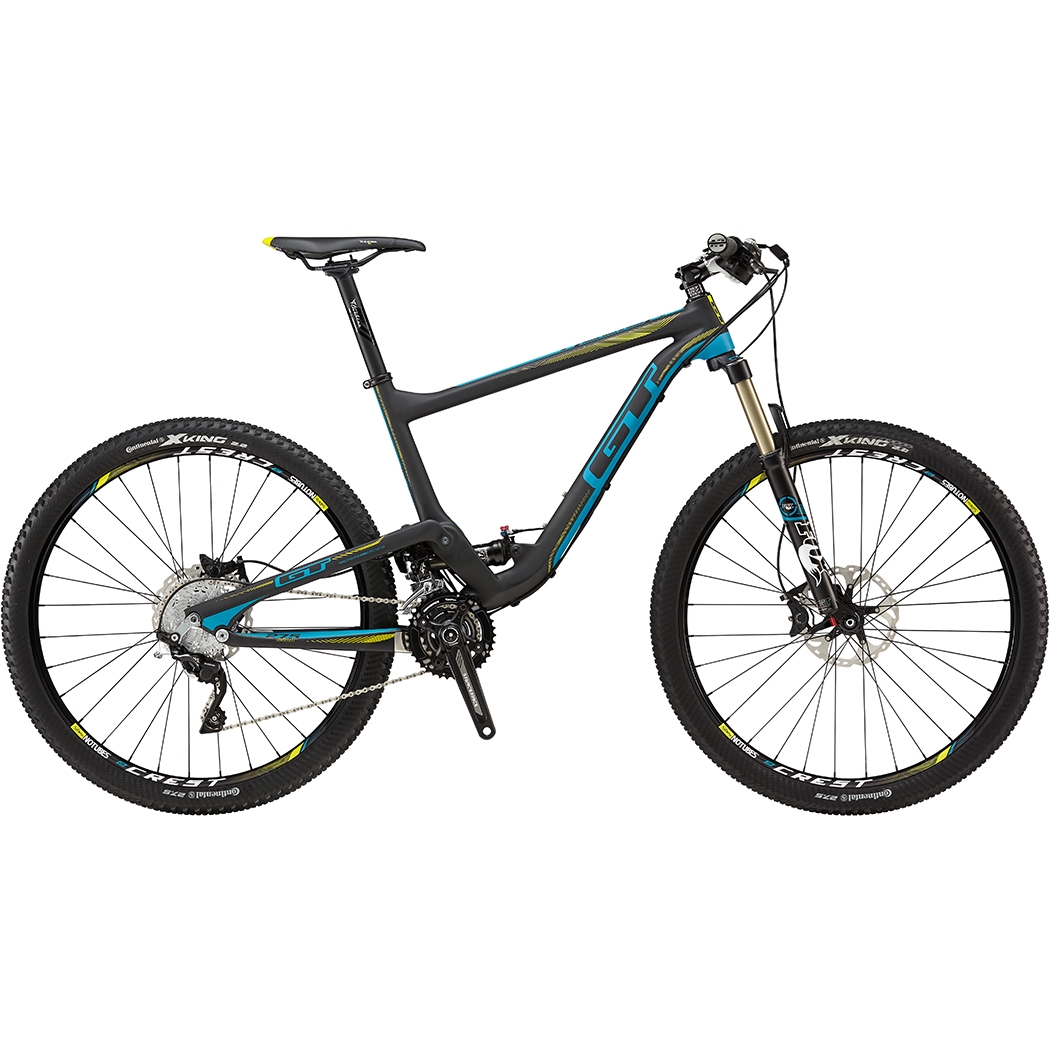

GT Helion Carbon Pro Matteblack/Blue
Artikelnummer.
GM0366SM02 (S)
Övriga art.nr.
GM0366MD02 (M)
GM0366LG02 (L)
GM0366XL02 (XL)
The rebirth of XC. Before World Cups and when cross-country wasn’t about the recovery drinks and the nerdy gear, it was about the pure, simple joy of riding in the mountains. The 2015 Helion features progressive geometry to give you nimble, smile-jerking control, without losing efficient pedaling expected of a short travel bike.
>COR XC Philosophy, FOC Ultra Carbon Frame, 110mm travel, Angle Optimized Suspension, 27.5” specific, integrated tapered head tube 1” 1/8 to 1” ½ and 12 x 142mm Maxle Dropouts
>Fox 32 Float 27.5 CTD FIT (110mm), 15QR, w/ Remote lockout and Rebound adjust, tapered alloy steerer
>Fox Float rear shock with CTD Remote w/ Boost Valve, lock out & rebound adjust
>Race Face Turbine crankset, 32T narrow-wide
>Shimano XT Shadow+ 11spd, direct mount derailleur
>Shimano XT Hydraulic Brakes w/ Metallic Pads, 180mm centerlock rotors (F&R)
>Stans NoTubes Crest, ZTR Tubeless 32h w/ DT Swiss 240S centerlock (F: 15mm Thru Axle; R: 12x142mm Thru Axle)
>Continental X-King 27.5x2.2” Tires
Cykelspecifikationer
Storlek S, M, L, XL
Färg Matte Black
Ram COR XC Philosophy, FOC Ultra Carbon Frame, 110mm Travel Independent Drivetrain® 27.5 AOS Suspension System w/Forged Linkage, Pivots, 1 1/8"-1 1/2" Integrated Head Tube, and 12 x 142mm Maxle Dropouts
Gaffel eller ev. stötdämpare fram Fox 32 FLOAT 27.5 CTD Remote FIT, 110mm Travel, 15QR, w/ FIT Damper, Remote Lockout & Rebound Adjust, Tapered Alloy Steerer
Stötdämpare bak Fox Racing Shox Float CTD Remote BV, 6.5"x1.5" Air Shock, w/ Rebound Adjust & Remote Lockout
Kedja KMC X10
Vevparti RaceFace Turbine Basic, 32T Narrow Wide (Europe specific: 36/24T)
Vevlager RaceFace
Växelförare fram e.thirteen XCX+ High Direct Mount
Växelförare bak Shimano Deore XT Shadow Plus, Direct Mount, RD-M786-D, GS Cage
Växelhandtag Shimano Deore XT, SL-M780, Rapid Fire, Right Side Only
Kassett eller ev. drev bak Shimano Deore XT, CS-M771-10, 10-Speed, 11-36T
Hjul Stan's NoTubes Crest, ZTR Tubeless, 32H
Däck Continental X-King 27.5x2.2", Folding
Nav fram DT Swiss 350, Centerlock, 15x100mm Thru Axle
Nav bak DT Swiss 350, Centerlock, 12x142mm Thru Axle
Ekrar DT Competition, 1.8/1.6 Stainless, Black
Ekernipplar DT Alloy
Bromsar Shimano Deore XT, BR-M785 w/ Metallic Pad, 180mm SM-RT81 Centerlock IceTech Rotor
Bromshandtag Shimano Deore XT, BL-M785
Styre RaceFace Turbine 35, 740mm Width, 10mm Rise
Styrstam RaceFace Turbine 35, 1-1/8" Threadless, 0° Rise, 35mm Clamp, 80mm
Handtag eller ev. styrlinda GT Statement Single Lock-on Grips
Styrlager Orbit C-40-ACB
Sadel fizik Tundra2, Manganese Rail
Sadelstolpe RaceFace Turbine, 31.6x375mm
Sadelstolpsklämma All Terra Alloy, 34.9mm
Ramgeometri
Size S M L XL
Seat tube length(mm) 460 460 490 520
Horizontal top tube length(mm) 579 606 634 664
Stand over height(mm) 824 826 849 873
Head angle(°) 69.5 69.5 69.5 69.5
Seat angle(°) 70.5 70.5 70.5 70.5
Chain stay length(mm) 438 438 438 438
Head tube length(mm) 90 103 119 135
Bottom bracket height(mm) 325 325 325 325
Fork offset rake(mm) 42 42 42 42
Wheel base(mm) 1062 1090 1118 1148
Bottom bracket drop(mm) 26 26 26 26
Front center(mm) 625 653 681 711
Beskrivning av utvalda cykelegenskaper
27.5
Angled Optimized Suspension
XC Materials
Our X/C race bikes are constructed using either our proprietary FOC carbon fabrication process for minimal flex, or our lighter-weight speed metal for easier climbs. Our proprietary FOC methodology for carbon frame fabrication allows us to make a bike frame that doesn’t flex in ways it shouldn’t because of pedaling, steering or impact forces. Basically, you get a frame that rides the way you want without sacrificing the strength and durability you need. GT Speed Metal is a light-weight aluminum construction designed to be light enough so you can climb with the XC crowd, with the ability to leave them comfortably behind on the way down.
Independent Drivetrain
This suspension does its job. Period. Because it operates independently of the drivetrain, the suspension can focus solely on its intended purpose – a smoother, faster ride – without making compromises in pedaling efficiency. And because it’s an inherently simple design, it’s easy to set up, ride and maintain. Sound good? Good.
Triple Triangle
Tapered Head Tube
Our forged, tapered head tube affords the same steering response and stiffness without suffering a weight penalty. Originally developed to extend the frame life, stiffen the rear triangle and thus create a faster, more responsive ride, the Triple Triangle frame has transcended its role as just another tech story and become an iconic symbol of who we are and what we stand for.
