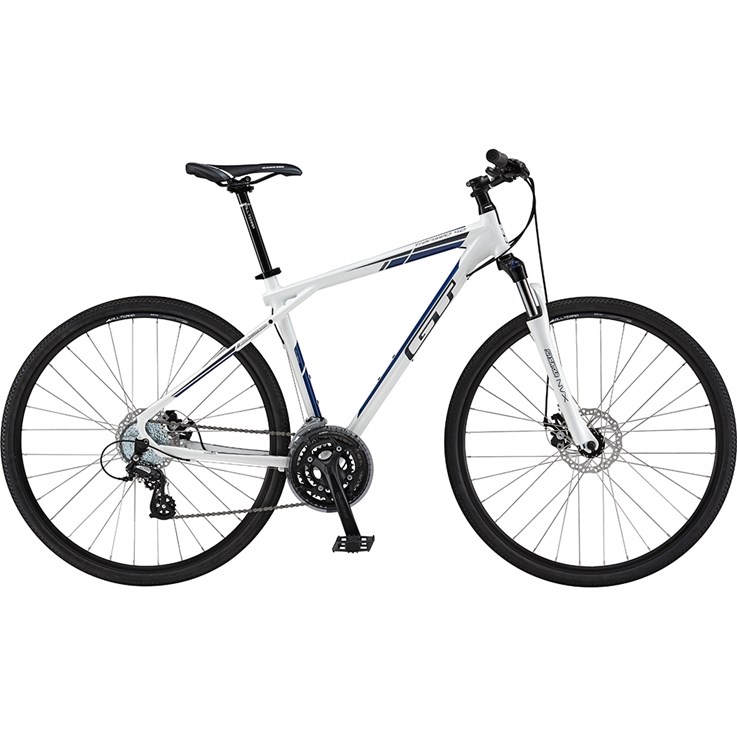

GT Transeo 4.0 Pearlwhite

Cities come in all shapes and sizes, and there are usually some hidden gems that take a little searching for, like that Mediterranean hole-in-the-wall or a perfect dive bar. Put your inhibition on the shelf and take your GT Transeo for a tour of the unknown, whether it is around the corner or across the map.

>GT Transeo Speed Metal™ alloy frame, with Triple Triangle, double butted, smooth welded, and hydroformed (TT,DT), forged drop-outs, chainstay disc mounts, all utility braze ons
>75mm travel SR Suntour NVX-DS HLO fork with hydraulic lockout, disc specific, fender mounts
>Shimano Altus RD-M310 8spd with Suntour NEX Crankset (48/38/28)
>700 x 40c Innova LandTracker w/ Puncture Protection
>Tektro mechanical disc brakes with 160mm rotor

Cykelspecifikationer
Storlek XS, S, M, L, XL
Färg Pearl White
Ram GT Transeo Triple Triangle 6061 Alloy, smooth welded and hydroformed (TT, DT), forged dropouts, chainstay disc mounts, all utility braze ons.
Gaffel eller ev. stötdämpare fram SR / Suntour NVX-DS HLO 75mm travel, pre-load adjust, Hydraulic Lockout, disc specific, fender mounts
Kedja KMC Z72
Vevparti Suntour NEX 48/38/28
Vevlager Cartridge sealed
Pedaler High Impact nylon platform
Växelförare fram Shimano FD M191
Växelförare bak Shimano Altus RD-M310 8spd
Växelhandtag Shimano Altus EF-51 Rapid Fire plus
Kassett eller ev. drev bak Sunrace CSM55 8spd casette 11-32t
Hjul Jalco JD200 Double Wall Alloy, 32h
Däck 700x40c Innova LandTracker w/ puncture protection
Nav fram All Terra Alloy 32h Disc Specific
Ekrar Stainless steel 14g
Ekernipplar Brass CP
Bromshandtag Shimano EF-51
Styre GT Type R flat riser bar, 31.8x640mm
Styrstam all new 3D forged GT alloy stem
Handtag eller ev. styrlinda GT Wings
Styrlager Integrated 1 1/8" sealed bearing
Sadel GT All Terra bio-morphic
Sadelstolpe GT All Terra two bolt alloy
Sadelstolpsklämma GT All Terra cold forged clamp QR

Ramgeometri
Size XS S M L XL XXL
Seat tube length(mm) 406 448 492 543 594 644
Horizontal top tube length(mm) 545 559 572 591 598 609
Stand over height(mm) 631 707 742 780 822 866
Head angle(°) 70.5 71 72 72 72 72
Seat angle(°) 74 74 74 74 73.5 73.5
Chain stay length(mm) 450 450 450 450 450 450
Head tube length(mm) 155 155 155 155 175 205
Bottom bracket height(mm) 273 273 273 273 273 273
Fork offset rake(mm) 50 50 50 50 50 50
Wheel base(mm) 1055 1064 1067 1086 1088 1100
Bottom bracket drop(mm) 72 72 72 72 72 72
Front center(mm) 615 625 627 645 647 660
