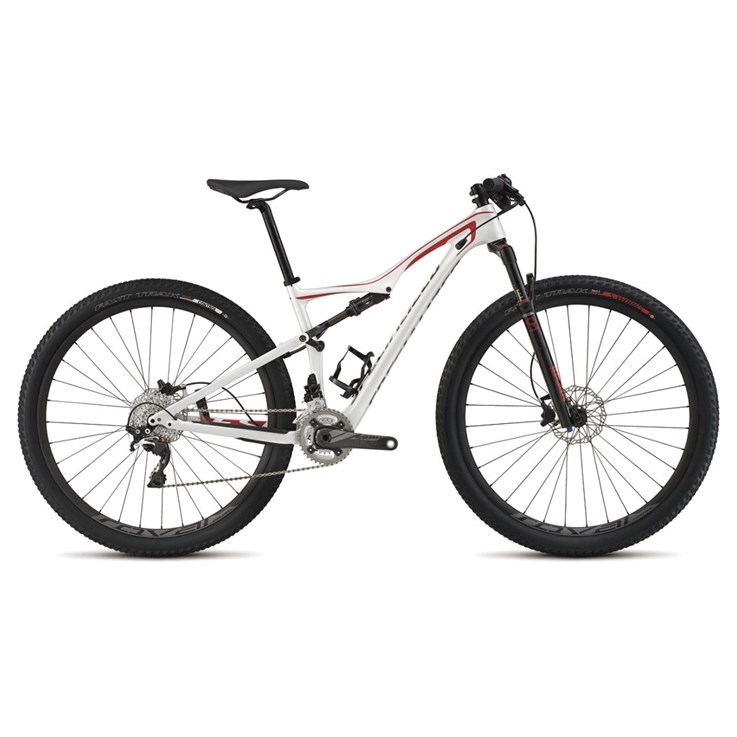

Specialized Era FSR Expert Carbon 29 Metallic White/Flored/Charcoal
Artikelnummer.
93015-3002 (S)
Övriga art.nr.
93015-3003 (M)
93015-3004 (L)
Cykelbeskrivning
The 100mm-travel, carbon fiber, Era Expert Carbon 29 is a pure-bred competitive XC machine. With the Specialized/FOX Brain shock and Roval Control Carbon wheelset, the all-new Era is the fastest women's XC bike in the sport.
>Carbon, 100mm-travel frame w/ Women's Performance 29 Geometry and SWAT EMT kit for XC terrain.
>Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain.
>RockShox SID World Cup fork w/ Brain damping and 100mm travel for race-ready XC performance.
>Roval Control Carbon 29 142+ wheelset w/ Zero Bead Hook and 142+ spacing for greater control.
>Custom SRAM carbon PF30 crankset for stiff, yet lightweight pedaling performance.
>Magura MTS hydraulic disc brakes w/ Storm SL rotors for total control and performance.
>Ride longer and in more comfort w/ the Body Geometry Myth Comp saddle w/ hollow Cr-Mo rails.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
FACT 9m carbon front triangle, M5 alloy rear triangle, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, S: 90mm travel, L/XL: 100mm
Stötdämpare bak
FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve, BrainFade adjust, 200x48mm, 95mm travel
Gaffel eller ev. stötdämpare fram
RockShox SID World Cup 29 Brain, Solo Air spring, tapered alloy steerer, bottom-mount BrainFade, rebound adjust, 15mm thru-axle, S: 90mm travel, L/XL: 100mm
Styrlager
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Styrstolpe eller ev. styrstam
Specialized, forged alloy, 6-degree rise
Styre
Specialized flat, 8-degree backsweep, 31.8mm
Handtag
Specialized Sip Grip, lock-on, half-waffle, S/M: regular thickness, Others: XL
Bromsar fram
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor
Bromsar bak
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor
Bromshandtag
Magura MTS, alloy lever
Växelförare fram
Custom SRAM X0, 2x10, high direct mount
Växelförare bak
Shimano XTR Shadow Plus, 10-speed, GS mid cage
Växelreglage
Shimano SLX, 10-speed, trigger
Kassett eller ev. drev bak
SRAM PG 1050, 10-speed, 11-36
Kedja
SRAM PC 1051, 10-speed, w/ PowerLink
Vevparti
Custom SRAM S-2200, carbon, PF30 spindle
Vevlager
SRAM, PF30, OS press-in bearings, sealed cartridge
Pedaler
Resin test ride, w/ toe clips, CEN std.
Fälgar
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
Nav fram
Roval Control Carbon 29, 15mm thru-axle, 32h
Nav bak
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
Ekrar
DT Swiss Revolution
Däck fram
S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2"
Däck bak
Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0"
Innerslang
Ultralight, presta valve
Sadel
Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm
Sadelstolpe
Specialized alloy, single bolt, 30.9mm
Sadelstolpsklämma
Alloy, 31.8mm
Ramgeometri
Frame size
S M L.
Seat tube length center to top
382mm 420mm 445mm.
Top tube length
, Horizontal 546mm 575mm 601mm.
Top tube length
, Actual 528mm 545mm 567mm.
Bottom bracket drop
40mm 45mm 50mm.
Bottom bracket height
322mm 327mm 332mm.
Chainstay length
448mm 448mm 448mm.
Seat tube angle actual
70.5° 71° 71.5°.
Seat tube angle effective
75° 75° 75°.
Head tube angle
70.5° 70.5° 70.5°.
Wheel base
1076mm 1108mm 1135mm.
Standover height
726mm 735mm 744mm.
Head tube length
90mm 95mm 105mm.
Stack
589mm 598mm 607mm.
Reach
388mm 415mm 438mm.
Handlebar width
680mm 680mm 680mm.
Stem length
60mm 75mm 90mm.
Crank length
165mm 170mm 175mm.
Seatpost length
350mm 650mm 400mm.
