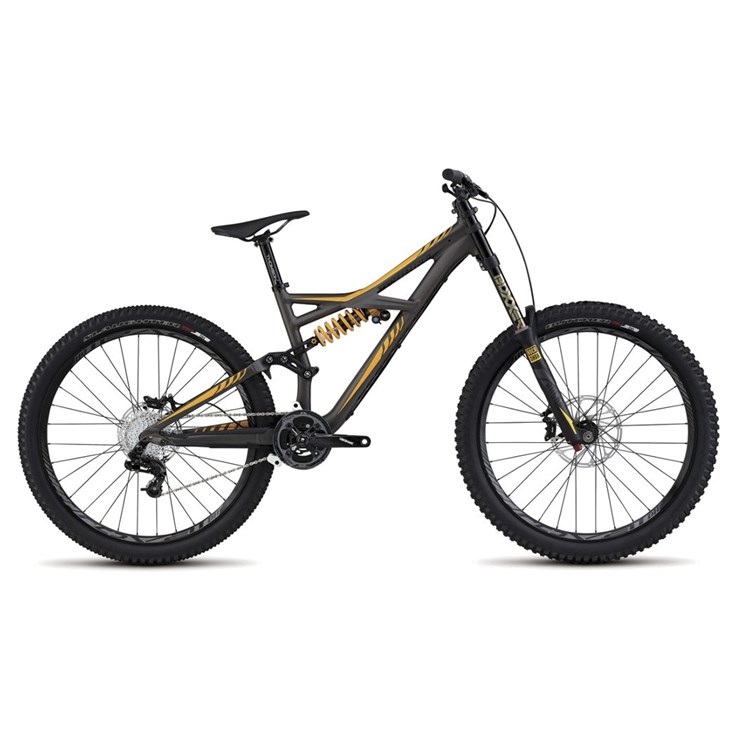

Specialized Enduro FSR Expert EVO 650B Charcoal/Yellow/Black
Artikelnummer.
93615-2102 (S)
Övriga art.nr.
93615-2103 (M)
93615-2104 (L)
Cykelbeskrivning
The 180mm-travel M5 aluminum Enduro FSR Expert EVO is an all-mountain machine catered to aggressive descending. Featuring 650b wheels, patented Öhlins TTX22M Twin Tube shock, RockShox Boxxer 180mm-travel fork, and SRAM Guide RS DH brakeset, the Enduro FSR Expert EVO strikes the perfect harmony between downhill and trail bikes.
>M5 alloy frame w/ All-Mountain geometry and 180mm travel for pure capability.
>Legendary suspension tuners Öhlins make the ultimate bike and shock combo.
>RockShox Boxxer Team 650b, 180mm-travel fork is tuned for the world's gnarliest terrain.
>Roval DH wheelset for durable and tubeless-ready performance.
>World Cup-proven Specialized Butcher DH front tire.
>Specialized Slaughter DH rear tire for fast-rolling performance on challenging terrain.
>SRAM Guide RS DH brakes w/ metallic pads and reach adjust for premium stopping power.
>SRAM X0 Type 2 mid-cage 10-speed rear derailleur provides crisp and reliable gear changes.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
M5 aluminum, 650b EVO geometry, tapered headtube, PF30 BB, ISCG ‘05 mount, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 180mm travel
Stötdämpare bak
Custom Öhlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low-speed compression and rebound adj., 8.75x2.5", S: 76x434lb, M: 84x479lb, L: 92x525lb
Gaffel eller ev. stötdämpare fram
RockShox Boxxer Team 650b, coil spring, tapered alloy steerer, high/low-speed compression and rebound adj., 20mm thru-axle, 180mm travel
Styrlager
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Styrstolpe eller ev. styrstam
Specialized P.Series MTB, forged alloy, 4-bolt
Styre
Specialized Demo, low-rise, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm
Handtag
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Bromsar fram
Custom SRAM Guide RS DH, metallic pads, Code caliper, 200mm Centerline rotor
Bromsar bak
Custom SRAM Guide RS DH, metallic pads, Code caliper, 180mm Centerline rotor
Bromshandtag
SRAM Guide RS DH, alloy lever, w/ cartridge bearing, reach adjust
Växelförare bak
SRAM X0 Type 2, 10-speed, mid cage
Växelreglage
SRAM X9, 10-speed
Kassett eller ev. drev bak
SRAM PG 1030, 10-speed, 11-36
Kedja
SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish
Vevparti
Custom SRAM carbon S-2200, PF30 spindle, removable spider, 165mm, 36T XX1 style single ring, w/ Gamut bashguard
Vevlager
SRAM, PF30, OS press-in bearings, sealed cartridge
Pedaler
Resin test ride, w/ toe clips, CEN std.
Fälgar
Roval DH 650b, alloy, 24mm inner width, w/ eyelets, 32h
Nav fram
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
Nav bak
Custom DT Swiss, Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
Ekrar
DT Swiss Industry, stainless
Däck fram
Specialized Butcher DH, 60TPI, wire bead, dual compound, 650bx2.5"
Däck bak
Specialized Slaughter DH, 60TPI, wire bead, dual compound, 650bx2.3"
Innerslang
Ultralight, presta valve
Sadel
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Sadelstolpe
Thomson alloy straight, 12-degree clamp
Sadelstolpsklämma
Specialized 7050 alloy, single bolt, 34.9mm
Ramgeometri
Frame size
S M L.
Seat tube length center to top
391mm 414mm 454mm.
Top tube length
, Horizontal 546mm 571mm 604mm.
Top tube length
, Actual 531mm 551mm 582mm.
Bottom bracket drop
2mm 2mm 2mm.
Bottom bracket height
352mm 352mm 352mm.
Chainstay length
423mm 423mm 423mm.
Seat tube angle actual
70.7° 70.7° 70.7°.
Seat tube angle effective
76.8° 76.8° 76.8°.
Head tube angle
64.5° 64.5° 64.5°.
Wheel base
1216mm 1182mm 1216mm.
Standover height
748mm 757mm 757mm.
Head tube length
110mm 110mm 120mm.
Stack
601mm 601mm 610mm.
Reach
405mm 430mm 460mm.
Handlebar width
750mm 750mm 750mm.
Stem length
40mm 40mm 40mm.
Crank length
170mm 175mm 175mm.
Seatpost length
380mm 425mm 425mm.
