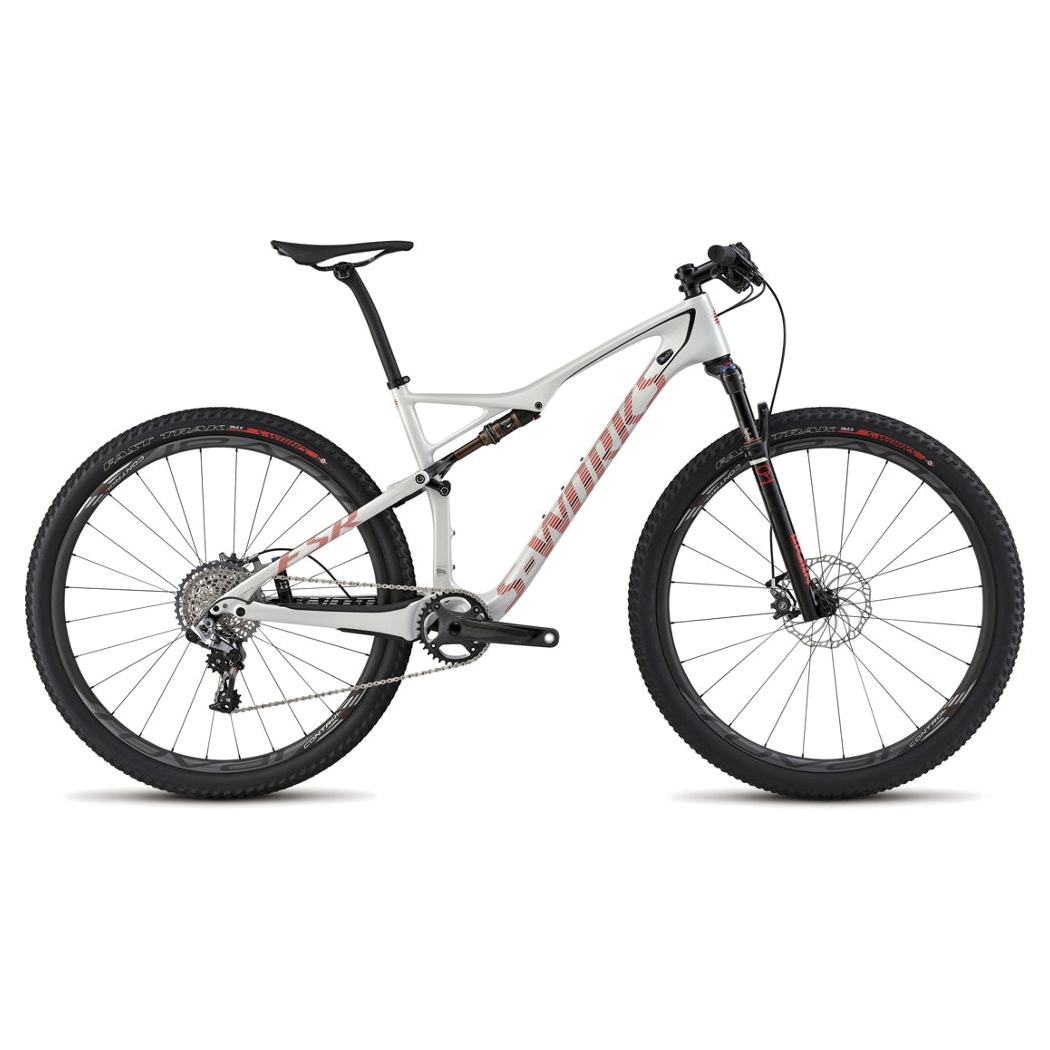

Specialized S-Works Epic FSR Carbon WC 29 Dirty White/Rocket Red/Black

Cykelbeskrivning

The full-suspension, carbon fiber, S-Works Epic is the first 29er to win a World Cup event, and the bike Mountain Bike Action magazine describes as the "best bike we've ever ridden". One of two S-Works versions, the S-Works Epic World Cup is equipped with SRAM's XX1 component group.

>FACT 11m carbon, 95mm-travel, FSR frame w/ World Cup Geometry for the ultimate XC race machine.
>Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain.
>RockShox SID World Cup fork w/ Brain damping and 95mm travel for race-ready XC performance.
>Roval Control SL 29 carbon wheelset w/ Zero Bead Hook and 142+ spacing for greater control.
>S-Works FACT carbon crankset w/ custom XX1 chainring for efficient power transfer.
>SRAM XX1 11-speed rear derailleur for high-performance XC racing componentry.
>SRAM XX1 11-speed trigger for efficiency and simplicity on the trail.
>Lightweight and compliant S-Works FACT carbon seatpost.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

S-Works FACT 11m carbon, 29" World Cup Geometry, FACT IS construction, World Cup mega-chainstays, single ring only, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 95mm travel

Stötdämpare bak

FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 200x48mm, 95mm travel

Gaffel eller ev. stötdämpare fram

RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 95mm travel

Styrlager

1-1/8" and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Syntace F109, 6-degree rise

Styre

Specialized flat, carbon, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

Magura MT8, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, Storm SL rotor, S/M: 160mm rotor, Others: 180mm

Bromsar bak

Magura MT8, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 160mm Storm SL rotor

Bromshandtag

Magura MT8, carbon lever

Växelförare bak

SRAM XX1, 11-speed

Växelreglage

SRAM XX1, 11-speed, trigger

Kassett eller ev. drev bak

SRAM XX1, 11-speed, 10-42

Kedja

SRAM PC-XX1, 11-speed, w/ PowerLink

Vevparti

S-Works FACT carbon, custom XX1 chainring, 34T (32T ring included), OSBB

Vevlager

Praxis, PF30, OS press-in bearings, sealed cartridge

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval Control SL 29, carbon disc, 22mm internal width, 24/28h

Nav fram

Roval Control SL 29, alloy hub body w/ Labyrinth design, 15mm thru-axle, 24h

Nav bak

Roval Control SL 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 28h

Ekrar

DT Swiss Revolution

Däck fram

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0"

Däck bak

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Phenom Pro, carbon rails, 143mm

Sadelstolpe

S-Works FACT carbon, 20mm offset, 27.2mm

Sadelstolpsklämma

Specialized 7050 alloy, single Ti bolt, 31.8mm

Ramgeometri

Frame size

S M L XL.

Seat tube length center to top

400mm 434mm 470mm 520mm.

Top tube length

, Horizontal 562mm 592mm 618mm 643mm.

Top tube length

, Actual 529mm 557mm 583mm 611mm.

Bottom bracket drop

40mm 40mm 40mm 40mm.

Bottom bracket height

332mm 332mm 332mm 332mm.

Chainstay length

439mm 439mm 439mm 439mm.

Seat tube angle actual

69.4° 69.75° 70.1° 70.5°.

Seat tube angle effective

74.25° 74.25° 74.25° 74.25°.

Head tube angle

71° 71° 71° 71°.

Wheel base

1073mm 1103mm 1131mm 1157mm.

Standover height

770mm 774mm 780mm 793mm.

Head tube length

90mm 105mm 120mm 140mm.

Stack

583mm 597mm 611mm 630mm.

Reach

398mm 423mm 446mm 465mm.

Handlebar width

700mm 700mm 700mm 700mm.

Stem length

75mm 90mm 100mm 110mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

350mm 400mm 400mm 400mm.
